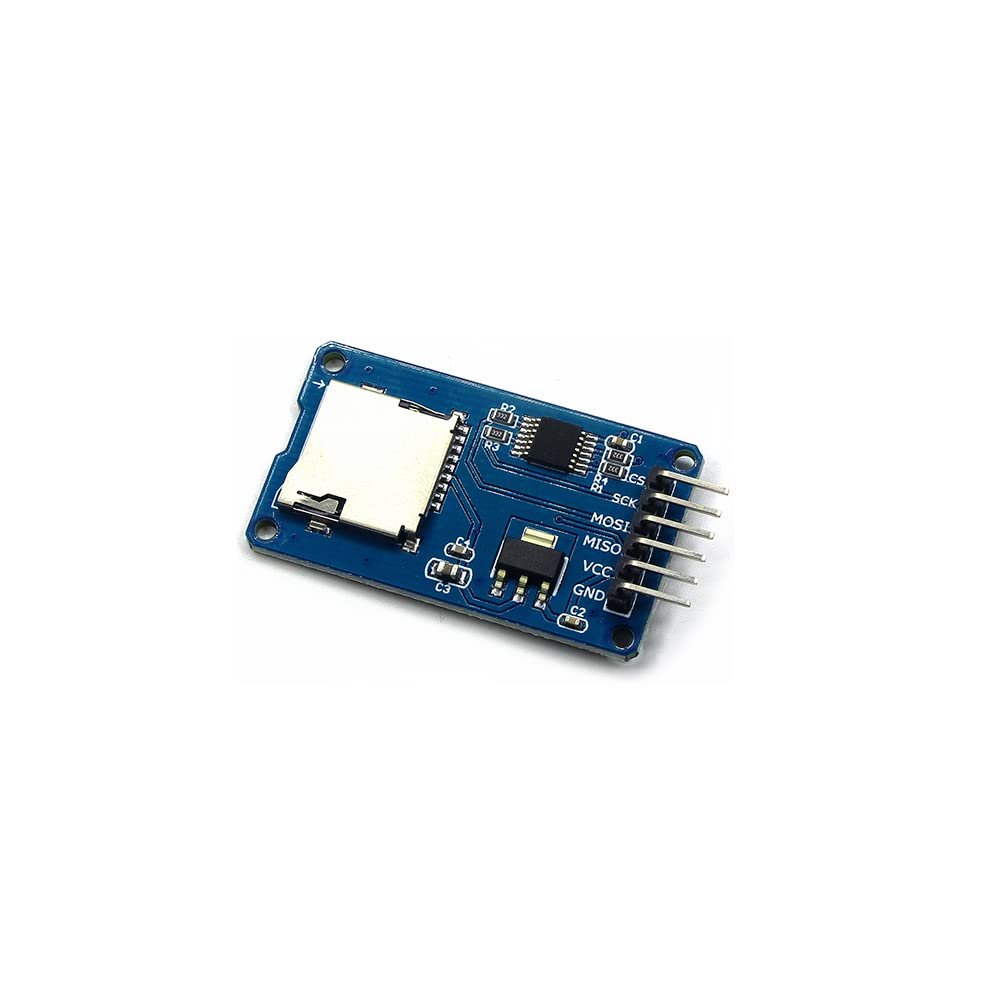

1pcs Smart Electronics SD Mini Storage Board TF Card Reader Memory Shield Module

Description

• mounting holes: 4 M2 screws positioning hole diameter of 2.2mm, easy to install positioning, to achieve inter-module combination.
• Micro SD card connector: yes since the bomb deck for easy card insertion and removal.
• Level conversion circuit: Micro SD card into the direction of signals into 3.3V, MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal;

Origin:CN(Origin)
Type:Voltage Regulator
Application:Computer
Operating Temperature:-40~+85C
Supply Voltage:5V/3.3V

The level conversion circuit board that can interface level is 5V or 3.3V
Communication interface is a standard SPI interface
Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground,
VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin
3.3V regulator circuit: LDO regulator output 3.3V as level converter chip
