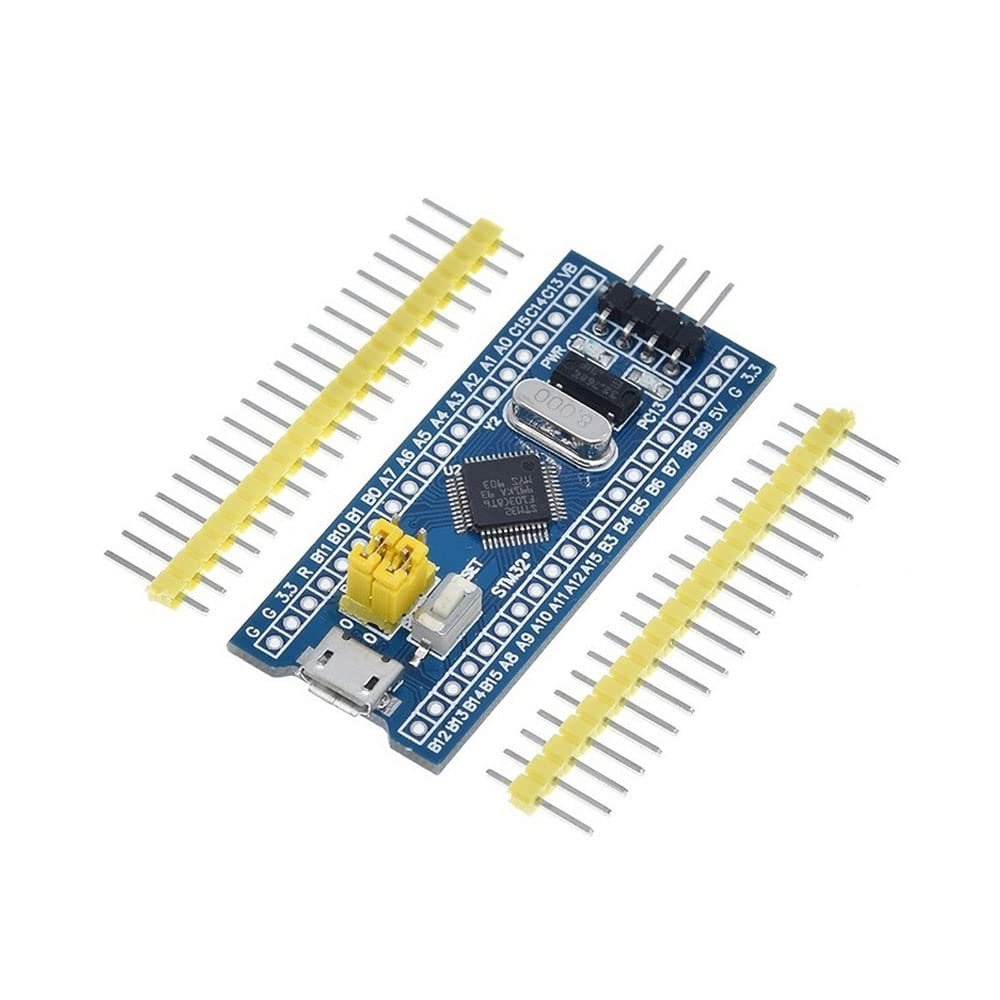

1pcs Mini System Development Board STM Module,STM32F103C8T6

Description

• SWD interface: support for simulation, download and debug.
• Mirco USB interface: power supply and uSB communication, does not support the download.
• USART1 interface: USART1 can be used to download the program, or use the USART1 for communication.
• MCU pin interface: leads all l/O port pins, easy to connect with peripherals.5V and 3.3V power input and output interface: commonly used in extermal power supply, or with other modules for common ground treatment

Origin:CN(Origin)
Type:Voltage Regulator
Model Number:STM32F103C8T6
Operating Temperature:-40~+85C
Supply Voltage:DC3.3-5V
Kernel:Cortex-M3
Operating frequency:72MHz
Storage resources:64K Byte Flash, 20KByte SRAM
Number of pins: 48
Interface Resources: 2x SPI,3x USART,2x 12C,1x CAN,37x 1/O ports
Analog-to-digital conversion: 2x ADC (12-bit/16-channel)
Timers: 3 general timers and 1 advanced timer
Debug Download: Support JTAG/SwD debug interface to download,support for IAP.2
RT9193:3.3v regulator chip, the maximum output of 300mA.
