1PCS Frequency Inverter 220v to 380v 400V 415V 7.5kw VFD Variable Frequency Inverter Control Variable Frequency Drive VFD 3 Phase Out(220V to 380V 7.5kw)

Description

• Power Inverters
• 1PCS Frequency Inverter 220v To 380v 400V 415V 7.5kw VFD Variable Frequency Inverter Control Variable Frequency Drive VFD 3 Phase Out

Power Inverters
Frequency inverter 220v to 380v 400V 415V 7.5kw VFD Variable Frequency inverter control Variable Frequency Drive VFD 3 phase out
System Upgrade
TYPE SELECTION TABLE
220V to 380V/0.75KW
220V to 380V/1.5KW
220V to 380V/2.2KW
Model NO.
WK600D-0007-G1T3
WK600D-0015-G1T3
WK600D-0022-G1T3
Input voltage
Single phase 220V15% 50Hz/60Hz
Output voltage
Three phase 0-380V 0-650Hz
Power
0.75KW/1HP
1.5KW/2HP
2.2KW/3HP
Rated current
2.5A
3.7A
5A
Shape size
155*82*135(145)mm
packing size
220*150*130 mm
Weight
1.2KG
220V to 380V/4KW
220V to 380V/5.5KW
Model NO.
WK600D-0040-G1T3
WK600D-0055-G1T3
Input voltage
Single phase 220V15% 50Hz/60Hz
Output voltage
Three phase 0-380V 0-650Hz
Power
4KW/5HP
5.5KW/7.5HP
Rated current
8.5A
13A
Shape size
170*130*160
packing size
225*190*230
Weight
2.2KG
220V to 380V/7.5KW
220V to 380V/11KW
Model NO.
WK600D-0075-G1T3
WK600D-0110-G1T3
Input voltage
Single phase 220V15% 50Hz/60Hz
Output voltage
Three phase 0-380V 0-650Hz
Power
7.5KW/10HP
11KW/15HP
Rated current
16A
25A
Shape size
220*148*170
packing size
280*205*245
Weight
3.3KG
Type selection instructions:
1. Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by wrong wiring.
2. This frequency converter can not drive other load types except inductive load such as motor.
Please pay special attention to it when purchasing.
3. The overload capacity of 220V to 380V frequency converter is small.
Please choose at least one higher power level.
When the load is very large
(such as gear pump hydraulic pump) or there is a blocking condition,
choose a boost inverter that is 2 levels larger than the motor power.
4. The inverter cannot be connected to the braking unit and resistor,
and cannot be used in the occasions that require quick shutdown and
the occasions of potential load(such as cranes)
5. If you don't know how to choose the type, you can also contact us to give you some suggestions.
Supplementary Note:
A.If you need detailed version of product manual, you can contact us to send it to you free of charge.
B. If there is no paper product manual in the packing case, it is because of product changes or upgrades. Please contact us for the latest and accurate electronic product manual.
OUR SUGGESTIONS
220V to 380V frequency converter is to solve the problem that the motor of electric equipment is 380V three-phase, but there is no 380V three-phase power supply around it, but only 220V single-phase power supply. The specific solution can refer to the following suggestions:
A. If the three-phase 380V motor itself is a star connection, it can be changed to a triangular connection. At this time, the motor becomes three-phase 220V motor, using our 220V converter to make single-phase 220V into three-phase 220V, the same levelpowerselection can solve the problem (220v converter purchase can click on this link);
B. If the three-phase 380V motor itself is triangular connection, it can not be solved by changing its connection method. We must use our 220V to 380V converter to solve the problem, and pay attention to the selection.
C. Identification of motor connections can be referred to in the following figure:
Figure1 is a star connected motor.
Figure 2 is a triangular connection motor.
wiring diagram
wiring diagram
Supplementary Note:
R, T are input terminals of frequency converter 220V power supply;
U, V and W are output terminals of frequency converter, connected with three-phase AC motor.
DETAILS OF OUR PRODUCTS

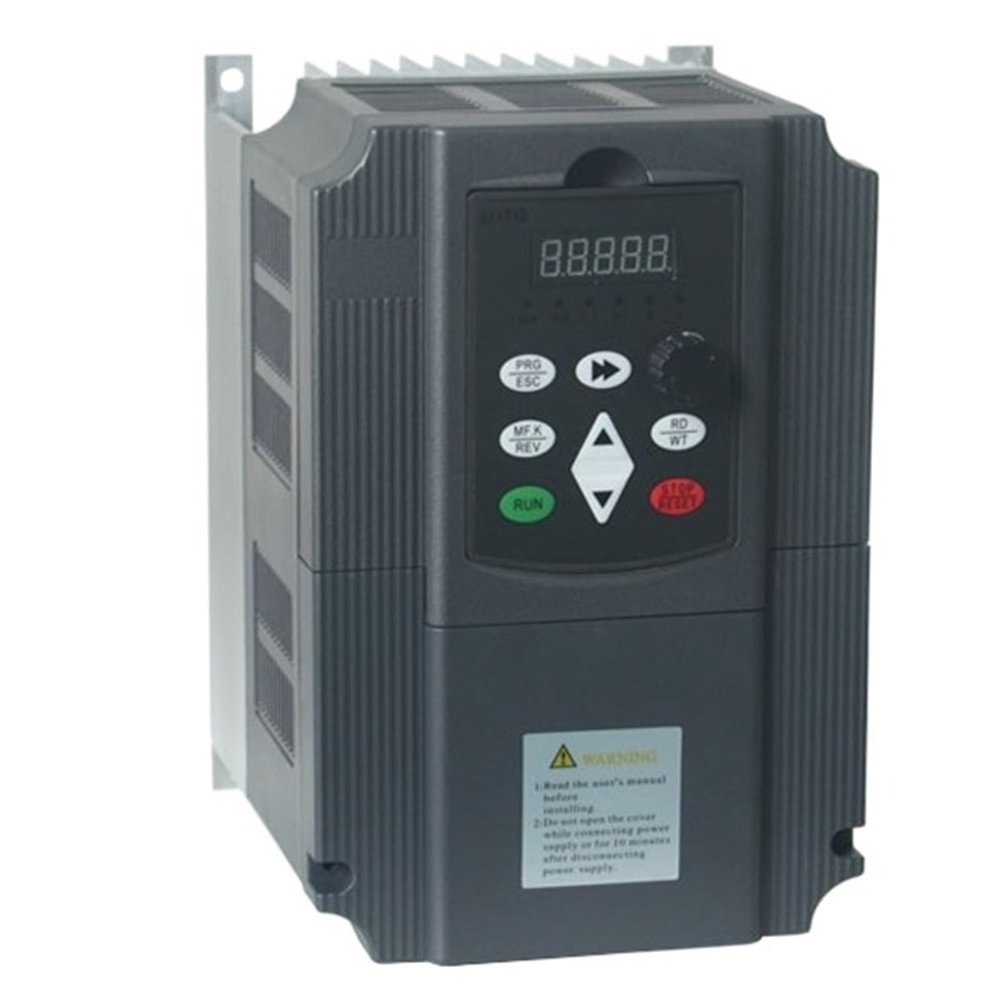

5-digit tube display components Removable external panelIsolated aluminium heat dissipation base
OUR PRODUCT TECHNOLOGY
Input and output characteristics
Input voltage range: 220V15%
Input frequency range: 47~63Hz
Output voltage range: 0~rated input voltage
Output frequency range: 0~650Hz
Peripheral interface features
Programmable digital input: 4 inputs
Programmable analog input: AI1: 0~10V input, AI2: 0~+5V or panel potentiometer input
Open collector output: 1 output
Relay output: 1 output
Analog output: 1 output, optional 4~20mA or 0~10V
Technical performance characteristics
Control: PG-free vector control, V/F control
Starting : without PG vector control: 0.5Hz / 150% (SVC)
Speed ratio: no PG vector control: 1: 100
Speed control accuracy: PG vector control: 0.5% of the maximum speed
Carrier frequency: 0.5k ~ 15.0kHz
Features
Frequency setting mode: digital setting, analog setting, serial communication setting, multi-speed, PID setting.
PID control function
Multi-speed control function: 8-speed control
Swing frequency control function
Instantaneous power outage without stopping function
REV / JOG key function: user-defined multi-function shortcut keys
Automatic voltage adjustment function: When the grid voltage changes, the output voltage can be automatically maintained constant
Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.
Control terminal
