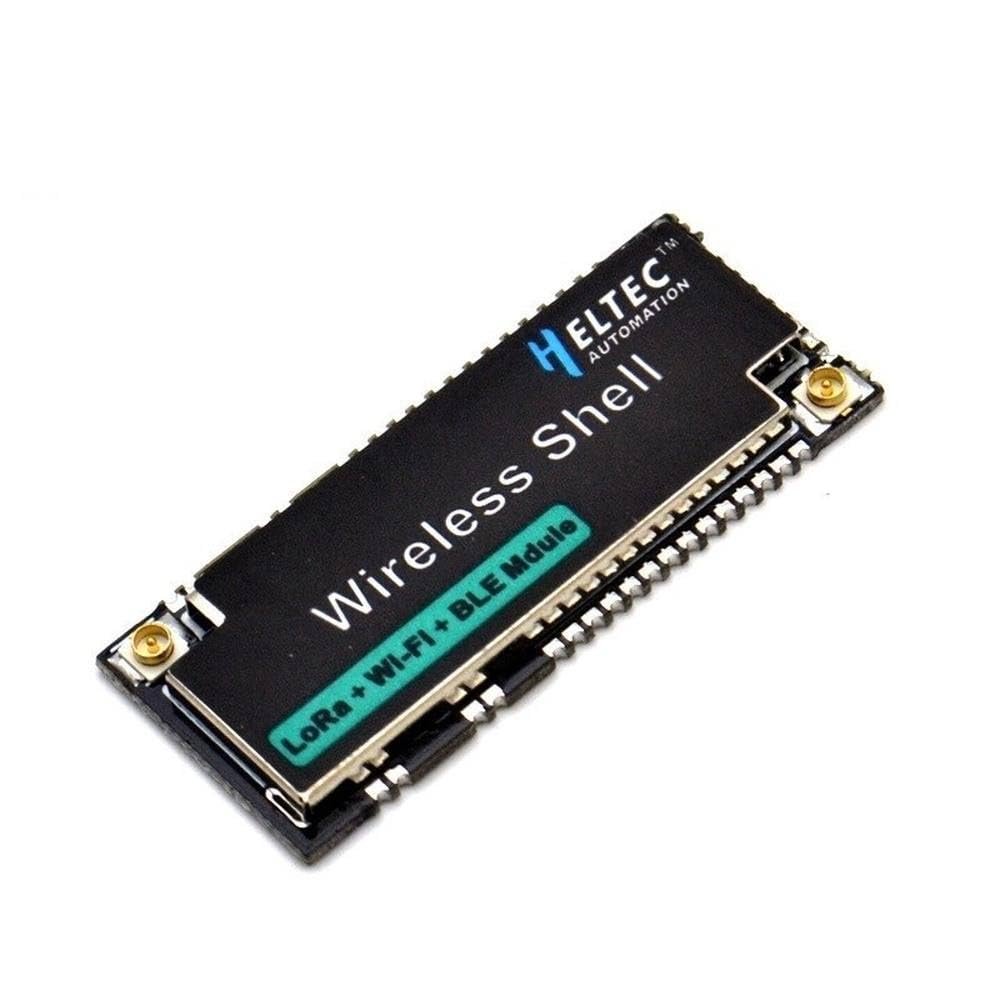

1pcs ESP32 SX1276 LoRa Development Board LoRAWAN WiFi Module Wireless Shell

Description

• 1pcs ESP32 SX1276 LoRa Development Board LoRAWAN WIFI Module Wireless Shell

LoRa frequency

EU_433, CN_470_510, EU_863_870, US_902_928 Quad-band optional

LoRa maximum output power

19dB 1dB

Hardware resources

UART x 3; SPI x 2; I2C x 2; I2S x 1

12 - bits ADC; 8 - bits DAC

29 general purpose GPIO ports

Display

FLASH

Built-in 4MB (32M-bits) SPI FLASH

interface

LoRa Antenna Interface (IPEX) x 2

size

38.4 x16.1mm

USB to serial chip

Battery type

Battery detection circuit

External device power control (Vext)



Low power design

Deep sleep 10uA

Features:

Provide CE certificate;
The main control chip uses ESP32-based ESP32-PICO-D4 module (dual-core 32-bit MCU + ULP core), with LoRa node chip SX1276/SX1278;
Integrate WiFi, LoRa, and Bluetooth network connections, and reserve two IPEX (U.FL) interfaces for LoRa and 2.4GHz RF signals.
Support the development environment;
(Exclusive) Supports the version of the ESP32 + LoRaWAN protocol routine provided by Heltec. This is a standard LoRaWAN protocol that can communicate with any gateway/base station running the LoRaWAN protocol (requires serial number activation, only produced by the company) The development board is available, the serial number can be queried on this page);
The module has good RF circuit design and low power consumption design (sleep current 30uA), which is convenient for IoT application vendors to quickly verify solutions and deploy applications;
Pin: 1.27mm pitch stamp hole
