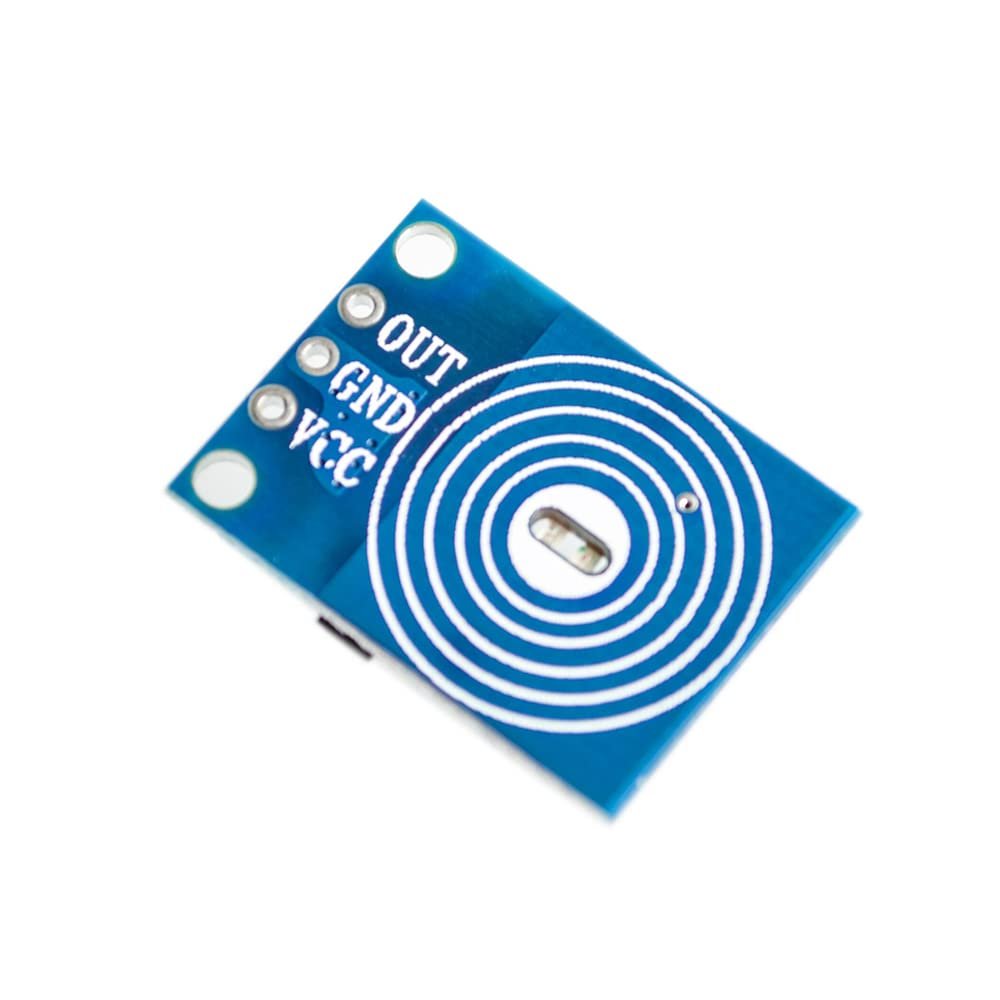

1pcs Capacitive Touch Switch Module

Description

• 10A large sink current, multi-mode can be set
• Mini small size, easy to install

Origin:CN(Origin)
LED indicator is red, the touch sensor output is blue.
Specifications Model: OE-TP dimming (10A)
Power supply range: DC 5 ~ 20V (recommended 12v power supply)
Output current: sink current MAX 10A (recommended 3a work)
Protection function: power reverse protection
Sensing indication: the output red light
Touch distance: less than 6mm (glass acrylic)
Quiescent current: less than 5mA
Operating temperature: -40C~85C
Control interface: a total of 3 pins (VCC, GND, OUT), VCC as the power supply, GND as the ground, OUT as the digital signal output pin
Touch area: The inner area of the fingerprint icon is triggered by a finger touch.
Positioning hole: 2 M2 screw positioning holes, 2mm aperture, easy to install and position the module, to achieve module combination.

Gradually brightening: light brightness gradually open to set the brightness, turn off the lights when the brightness gradually closed
Sudden bright light: lights when the brightness directly to set the brightness, turn off the lights when the lights directly off
Long press touch: to achieve stepless dimming, a long press touch, the brightness of the light gradually increased, the brightness of the light when the release time to release the brightness of the release, once again press the touch, the brightness gradually reduced.
When the brightness of the light when the release of the brightness of the release time, for motor speed, output voltage regulation and other occasions
