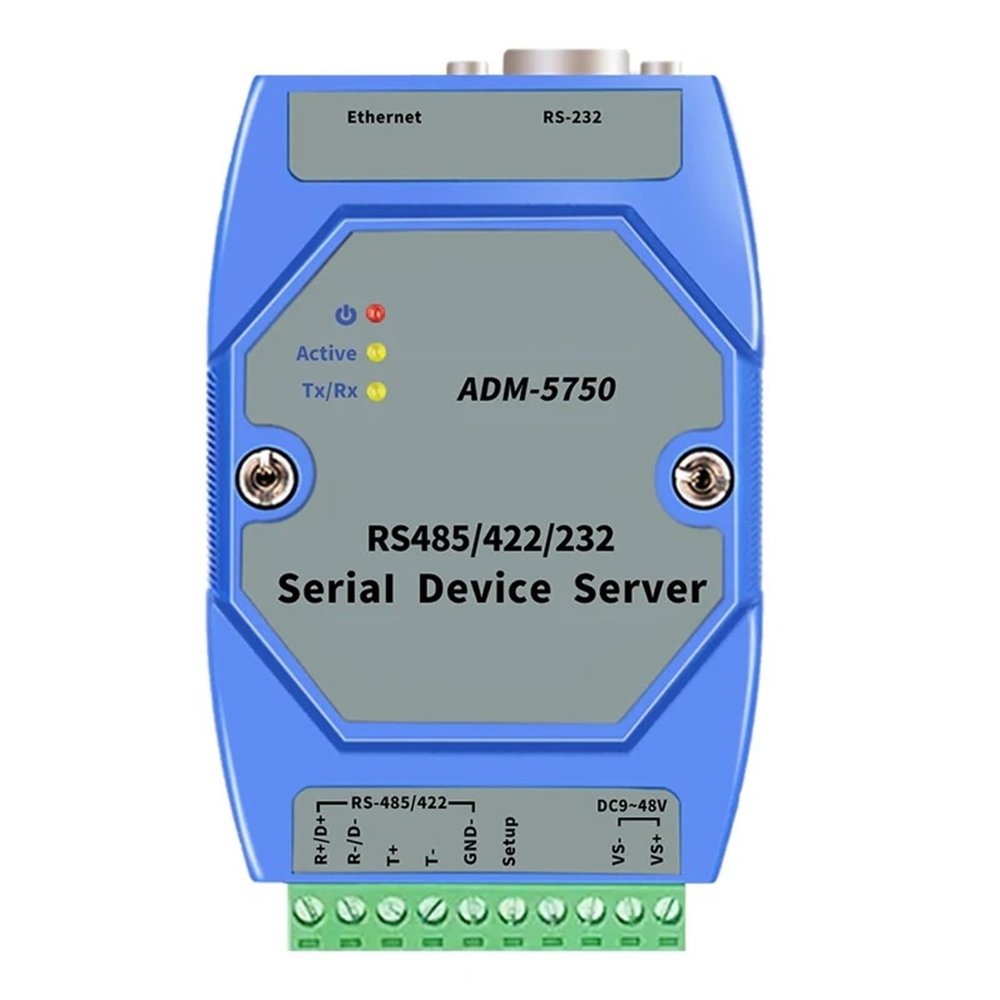

1Pcs ADM-5750 Din Rail Industrial Serial Port Server RS232/485/422 to Ethernet Transparent Transmission(Device only)

Description

• 1Pcs ADM-5750 Din Rail Industrial Serial Port Server RS232/485/422 to Ethernet Transparent Transmission

Product introduction
ADM-5000 family Serial Device Server can complete the function of RS-485/422 or RS-232 serial port convert to Ethernet TCP/IP. Support Server, Client, UDP protocol and virtual serial port functions. Provide VCOMM virtual com port software and SDS Configuration Serial Device Server configuration tool. Support the Web Server console and the Telnet console configuration mode. Industrial grade design proposal, RS-485/422 protection design, high grade protection chip, can run in the harsh environment. Easy to use is also very flexible and reliable.
Features and Benefits
1. 1-Port 10/100MEthernet ports
2. Configure by telnet, web browser, or SDS configuration software
3. Standard TCP/IP protocols and choice of operation modes
4. Support sever, client, UDP, virtual COM modes
5. Support for the maximum 4 connections
6. RS-485/422, RS-232 embedded 15KV ESD surge protection
7. Selection of35MMDIN guide rail
Product specification
Ethernet
Interface: 10/100Mbpsself-adaption Ethernet (RJ-45)
Protocols: ARP, , UDP, ICMP, TELNET, HTTP, DHCP, DNS
Communication: full duplex / half duplex self-adaption
Operation mode: server, client, UDP, Real Com mode
FIFO Memory: receive 8K bytes and send 8K bytes
<;100 meters Serial port Parity
Serial port
ADM-5750: 1-Port RS-485/422/232 ADM-5732: 2-Port RS-485/422
RS-232: TXD, RXD, RTS, CTS, GND
RS-422: T+, T-, R+, R-
RS-485: D+, D-
Parity: None\Even\Odd\space\mark
Data bits: 6bit, 7bit, 8bit
Baud rate: 300BPS to 230400bps
Flow control: support RTS/CTS flow control or no flow control
Direction control: RS-485 data flow direction control
Load capacity: RS-485/422 maximum support 32 nodes
Transmission distance: RS-485/422 (1000 meters), RS-232 (10 meters)
Interface protection: 1500W surge protection, 15KV ESD protection
Interface form: RS-232 port DB-9 male, RS-485/422 terminal
Power Supply
Power input: DC9 to 48V (ADM-5732 is redundant dual power input)
Power consumption: 150mA@24V (Max)
Environment
Working temperature:-20 C~75 C
Storage temperature:-40 C~95 C
Ambient Relative Humidity 5 to 95% (non-condensing)
Appearance
Long x wide x high: 103x72x27 (mm)
Connection definition
10/100MEthernet port connection
The RJ45 port supports automatic MDI/MDI-X operations. In MDI, the pin 1, 2, 3, and 6 are defined as the connection pins as shown in the table.
Pins
MDI
MDI-X
1 TX+
RX+
2 TX-
RX-
3 RX+
TX+
6 RX-
TX-
4,5,7,8
- -
RS-485/422/232 serial port connection
Pins
RS-485
RS-422
RS-232
T+
- T+
-
T-
- T-
-
R+/D+
D+
R+
-
R-/D-
D-
R-
-
DB9-2
- - RXD
DB9-3
- - TXD
DB9-5
- - GND
Power Supply connection
ADM-5750 Power interface: VS+, VS-
ADM-5732 Power interface: PWR1 (VS1+, VS1-), PWR2 (VS2+, VS2-)
Restore the default settings
Hardware recovery: Setup pin and GND pin short connection, the serial device server reboot, and then disconnect Setup and GND pin, restore the default setting success.
Software recovery: Search the device through the SDC Configuration tool software and click to restore the default settings button.
LED instructions
ADM-5705
Power indication: "PWR" bright red is the normal power supply
connection success indication: "Active" is bright green
Serial data sending and receiving indication: P1"TX/RX" is Flash
ADM-5732
Power indication: "PWR" bright red is the normal power supply
Serial Port 1 sending and receiving indication: "P1" is Flash
Serial Port 2 sending and receiving indication: "P2" is Flash
Simple application
1. Install SDS Configuration to the PC of the windows system
2. Connect the Serial device server and PC to the same LAN
3. Open SDS Configuration and search for Serial device server
4. The IP address of the Serial device server and the IP address of PC are in the same segment
5. The TCP/IP Mode is set to Real COM mode.
6. Open the installed VCOMM software, work in the Client mode, and create a virtual serial port manually.
7. Complete, PC will add a COM port
Serial device server configuration
There are three ways to configure Serial Device Server, Telnet console and the Web console can be enabled and disabled by Web or Telnet.
1. IE browser is logon (the default IP address 192.168.10.245).
2. SDS Configuration tools
Run the installed SDS Configuration tool, click the search device button, the device list will display the serial device server that has been searched, the double-click list item can set the parameters, and finally save the settings.
3. Telnet console, (DOS system input "telnet 192.168.10.245").
Operation mode selection
1. Server mode, you need to set the local port, and the remote device should work in the Client mode.
2. Client mode, you need to set the target IP address and target port, and the remote device should work in the Server mode.
3. UDP mode, need to set the target IP address and target port, Serial device server is working in the two modes of Server and Client.
4. Real COM mode, virtual serial mode, PC should install VCOMM virtual serial port software, the data ports of Serial device server are 6020 (PORT1) and 6021 (PORT2)
