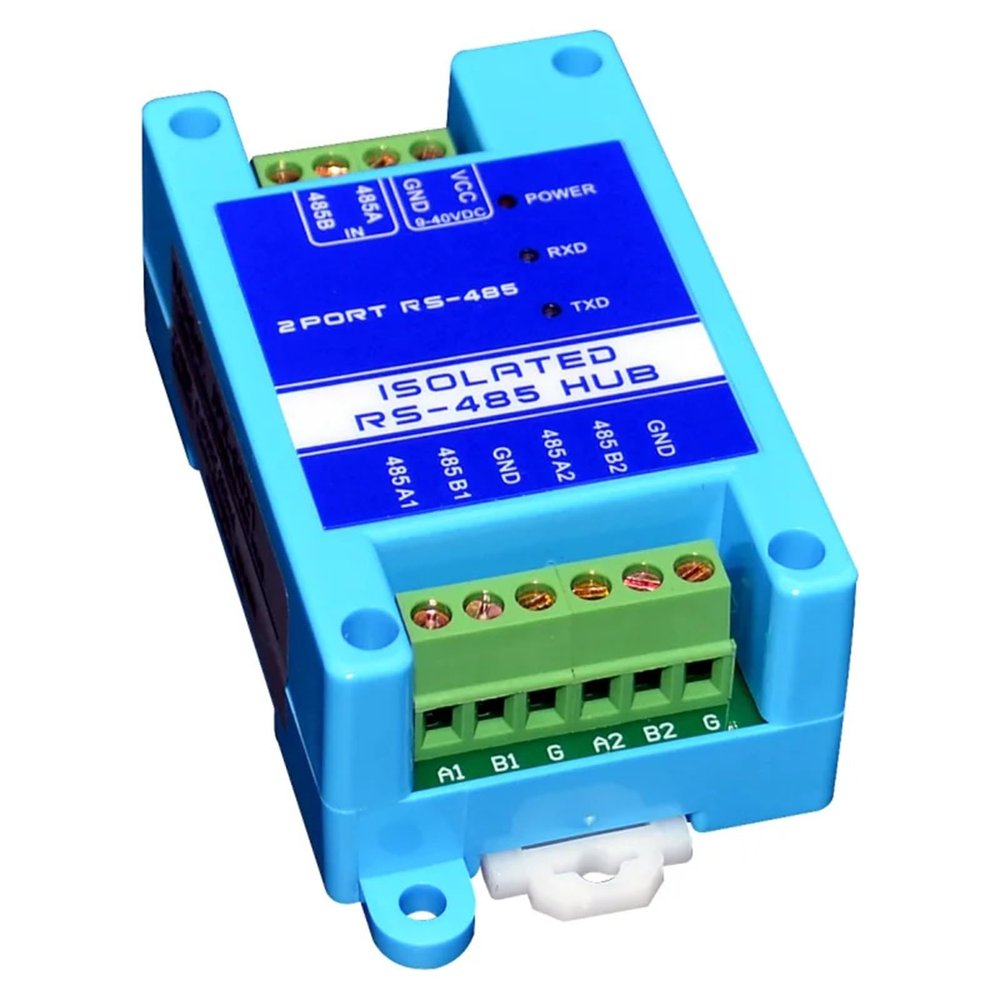

1Pcs 485 Repeater Isolation Industrial Grade RS485 hub 2 Port Signal Amplifier Anti Jamming Protection

Description

• 1Pcs 485 repeater isolation industrial grade RS485 hub 2 port signal amplifier anti jamming protection

JPX-6021 is an RS-485 bus split hub (HUB) designed for industrial automation communication to solve the RS-485 bus star structure networking and solve the large RS-485 system requirements in the complex electromagnetic field environment. Transmission rate up to 115.2Kbps, RS-485 interface using optical isolation technology, 600W surge protection circuit, providing 1000V isolation voltage can effectively suppress and ESD protection. The identification circuit used in the RS-485 operation mode can automatically sense the direction of data flow, and automatically switch the enable control circuit to easily solve the problem of RS-485 transceiving and conversion delay. The RS-485 interface has a transmission distance of more than 3000 meters and stable performance. Widely used in high-speed, highway toll system, road monitoring system and power acquisition system, it is a data interface conversion product with excellent performance and excellent .
Features:
*Built-in optical isolator and 600W surge protection circuit can provide 2500V isolation voltage, can effectively suppress and ESD, and can effectively prevent and common ground interference
*The built-in conversion processor automatically senses the channel data flow direction to automatically determine the channel status, automatically switches the enable control circuit, easily solves the problem of RS-485 transceiving conversion delay, and does not require jumper settings to achieve full-asynchronous half-duplex (RS-485) ) Mode conversion, and play.
* It adopts external power supply, provides wide voltage input and adopts external power supply switching power supply, which is safe and reliable. It is suitable for outdoor use and provides DC9-40V wide voltage input.
Product parameters:
1. Compatible with RS-422, RS-485 TIA/EIA standards.
2. Automatically send and receive data: RS-485 two-wire (AB) system communication.
3. Input interface: 1 RS-485 interface.
4. Output interface: 2-way RS-485 interface.
5. Communication speed: 300BPS-115.2KBPS (Adaptive).
6. Working power: DC9-40V 500mA.
7. Load capacity: Each interface RS485 can connect 128 devices.
8. Communication distance: 3000 meters (per interface).
9. Work indicator: power supply, data direction indication, channel indication.
10. Mode of operation: Asynchronous half duplex (RS-485 two-way communication)
11. Opto-isolation: Isolated voltage 1KVrms/500VDC insulation, isolated DC/DC module, RS-485 provides 600W surge, 15KV ESD protection.
12. Electrical Interface: RS-485 (4/6-core industrial terminal block), power supply (2-core industrial terminal block).
13. Transmission medium: twisted pair or shielded wire.
14. Installation: fixed hole installation.
15. Structural dimensions: 95x50x31 (mm), length x width x height (mm).
16. Use environment: -40C to 85C, relative humidity > 95% RH.
