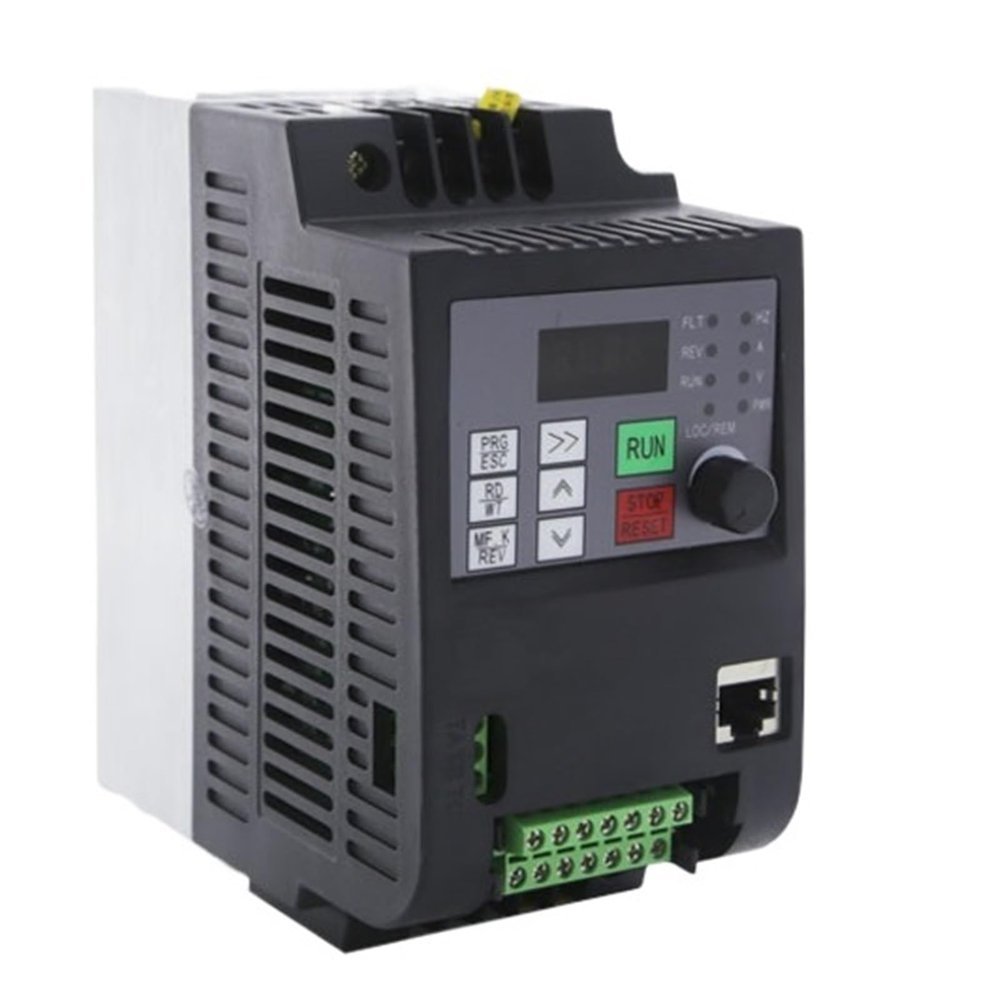

1Pcs 220V 2.2KW 1HP Mini VFD Variable Frequency Drive Converter for Single-Phase Capacitor Motor Speed Control Frequency Inverter(220V 1.5kw 2HP)

Description

• Power Inverters
• 1Pcs 220V 2.2KW 1HP Mini VFD Variable Frequency Drive Converter for Single-phase capacitor motor Speed Control Frequency Inverter

Power Inverters
220V 2.2KW 1HP Mini VFD Variable Frequency Drive Converter for Single-phase capacitor motor Speed Control Frequency Inverter
Single phase motors do not require the removal of capacitors
1.Input Voltage Range:single phase (1 phase) 220V15% 50hz/60hz
2.Output Voltage Range:1phase 220V15%
3.Output Frequency Range:0~600Hz
4.Control way: Open loop vector control(SVC) V/F control
5.Starting : G type machine:0.5Hz/150%( SVC)
6.This Serial model has 4-20ma or 0-10V analog Input Functio.
7.Support Motor;you can set P0-10=P0-12=P0-08=P1-04=400HZ ,
Set P0-15=9 Carrier Frequency set High level parameter.
8.Support Replay Output (inside Relay)
9.Support PID function
10.Multi segment function, 16 segment speed programmable
Single-phase motor dedicated frequency converter, single-phase motor current is too high, and selecting the frequency converter power requires 1-2 levels higher than the motor power
External switch wiring diagram
Type selection instructions:
A. Please read the product instructions carefully, choose the type according to the function and power you need,
and avoid the damage caused by wrong wiring;
B. If your load type is heavy, please choose an inverter with a higher power than the motor;
Type Selection Table
220V/0.75KW
220V/1.5KW
220V/2.2KW
ModelNO.
WK600D-0007-MIT
WK600D-0015-MIT
WK600D-0022-MIT
Inputvoltage
Singlephase220V10%50Hz/60Hz
Outputvoltage
Singlephase220VorThreephase0-220V0-500Hz
Power
0.75KW/1HP
1.5KW/2HP
2.2KW/3HP
Ratedcurrent
4A
7A
10A
Shapesize(mm)
155*82*135
packingsize(mm)
220*150*130
Weight
1.2KG
TypeSelectionTable
220V 4KW
Model NO.
WK600D-0040-G1T
Input voltage
Single phase 220V15% 50Hz/60Hz
Output voltage
Singlephase220VorThreephase0-220V0-500Hz
Power
4KW/5HP
Rated current
16A
Shape size
