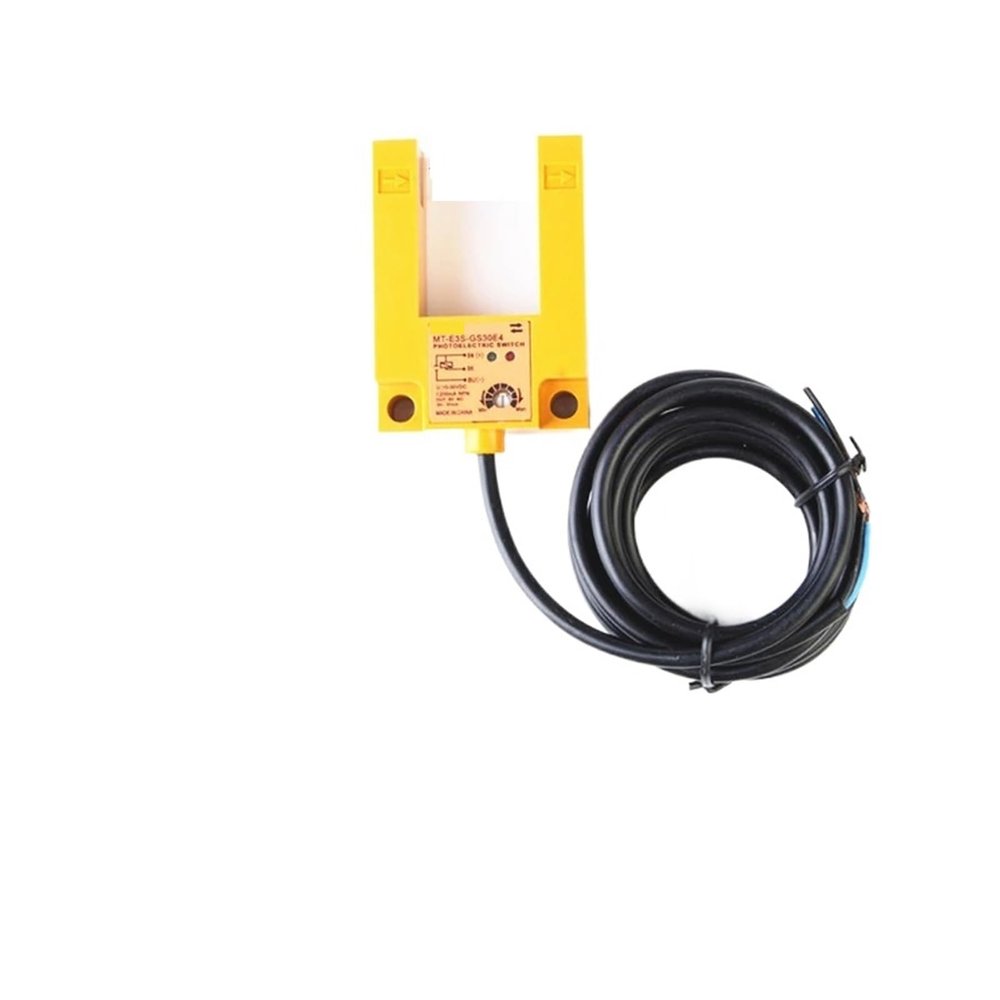

1pc U-Shaped Slot Switch E3S-GS30E4 Elevator Lift Level Sensor NPN NO 3 Wires 12V-24V 30mm Infrared Proximity ON Off(PNP Normally Open)

Description

• Switches
• 1pc U-Shaped Slot Switch E3S-GS30E4 Elevator Lift Level Sensor NPN NO 3 Wires 12V-24V 30mm Infrared Proximity ON OFF

Switches
1. Basic Information:
1. Basic Information:
- Models and Output Types:
E3S-GS30E4 (NPN Normally Open)
E3S-GS30E2 (NPN Normally Closed)
E3S-GS30P1 (PNP Normally Open)
E3S-GS30P2 (PNP Normally Closed)
- Sensing Method: Through-Beam Type
- Light of Sensor: Infrared
- Working Voltage: 12-24V
- Max. Working Current: 200mA
- Width of U-Shaped Slot: 30 mm
- Length of wire: around 1 meter
- Type of Objects to be detected: Opaque object
2. Close View of Product
- U-Shaped Slot (30mm wide) for object detection
- Diameter of Installation Hole: 6.5mm
3. Attractive Features
- Strong anti-interference ability.
- Water-proof. Oil .
- Sensitivity Adjustable
4. Applicable Fields
Machine, Elevator, Lift, Printing, Electricity Power, Safety Protection, Automation, etc.
5. Wiring Diagram
Brown wire connects to positive of power .
Blue wire connects to negative of power .
Black wire is output.
Difference between Normally Open (NO) and Normally Closed (NC)
6. Product Dimensions
Unit: mm
Note: Dimensions may slightly vary as tolerance exists.
==========
Hign-concerned Chemical : None
Material : Plastic
Switch Type : Switch
Model Number : E3S-GS30E4
Item Type : SWITCHES
