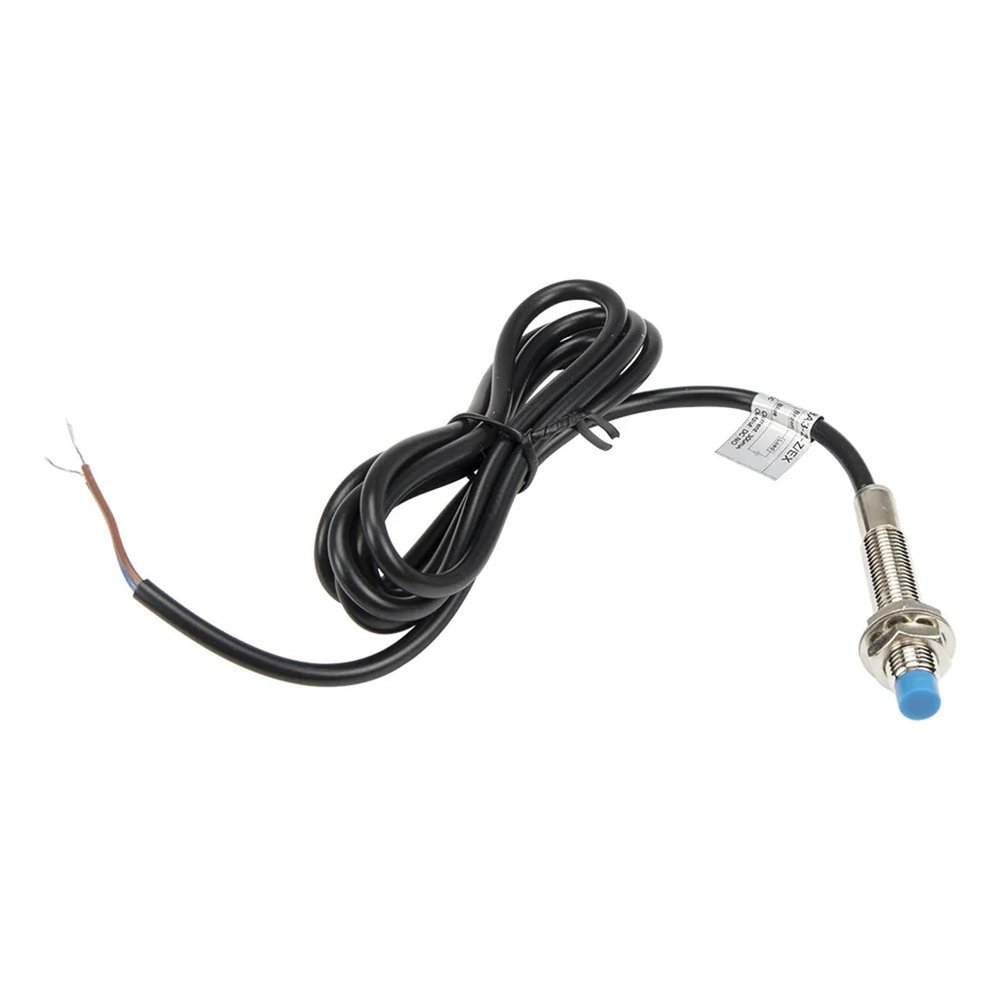

1pc M8 2mm Sensing Two Wires NO NC 6-36V LJ8A3-2-Z/EX DX AC 90-250V LJ8A3-2-J/EZ DZ inductive Proximity Sensor Switch(DC 2 Wires NO)

Description

• Switches
• 1pc M8 2mm sensing two wires NO NC 6-36V LJ8A3-2-Z/EX DX AC 90-250V LJ8A3-2-J/EZ DZ inductive proximity sensor switch

Switches
LJ8A3-2 series cylinder inductive proximity sensors - M8 and 2m detection distance
Operating form and model number
Current type
Operating form
Contact form
Connection form
Model number
Remark
Related product

NPN
NO
Wire lead
LJ8A3-2-Z/BX
6-36Vdc
Order

NPN
NO
Wire lead
LJ8A3-2-Z/BX-5V
5Vdc
Order

NPN
NC
Wire lead
LJ8A3-2-Z/AX
6-36Vdc
Order

NPN
NC
Wire lead
LJ8A3-2-Z/AX-5V
5Vdc
Order

PNP
NO
Wire lead
LJ8A3-2-Z/BY
6-36Vdc
Order

PNP
NC
Wire lead
LJ8A3-2-Z/AY
6-36Vdc
Order

Two wires
NO
Wire lead
LJ8A3-2-Z/EX
6-36Vdc
Visiting...

Two wires
NC
Wire lead
LJ8A3-2-Z/DX
6-36Vdc
Visiting...
AC
Two wires
NO
Wire lead
LJ8A3-2-J/EZ
90-250Vac
Visiting...
AC
Two wires
NC
Wire lead
LJ8A3-2-J/DZ
90-250Vac
Visiting...
General
Model number
LJ8A3-2 series
External dimensions
M8x50
Installation type
Non-shielded
Detection distance
2mm
Setting distance
0-1.6 mm
Supply voltage
6-36Vdc, 5Vdc; 90-250Vac, 50/60Hz
Output current
type: 300mA max; AC Type: 400mA
Standard detected object
Mild steel (8x8x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
500Hz
Matched mounting bracket
M8 mounting bracket
Output indication
Red LED
Short-circuit protection
No
Reverse connection protection
Yes
Insulation resistance
50M min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
IP Rating
IP65
Operating temperature
-25 to 70 C (13 to 158 F)
Cable length
1.2m, PVC cable
Material
Case: Brass-nick
