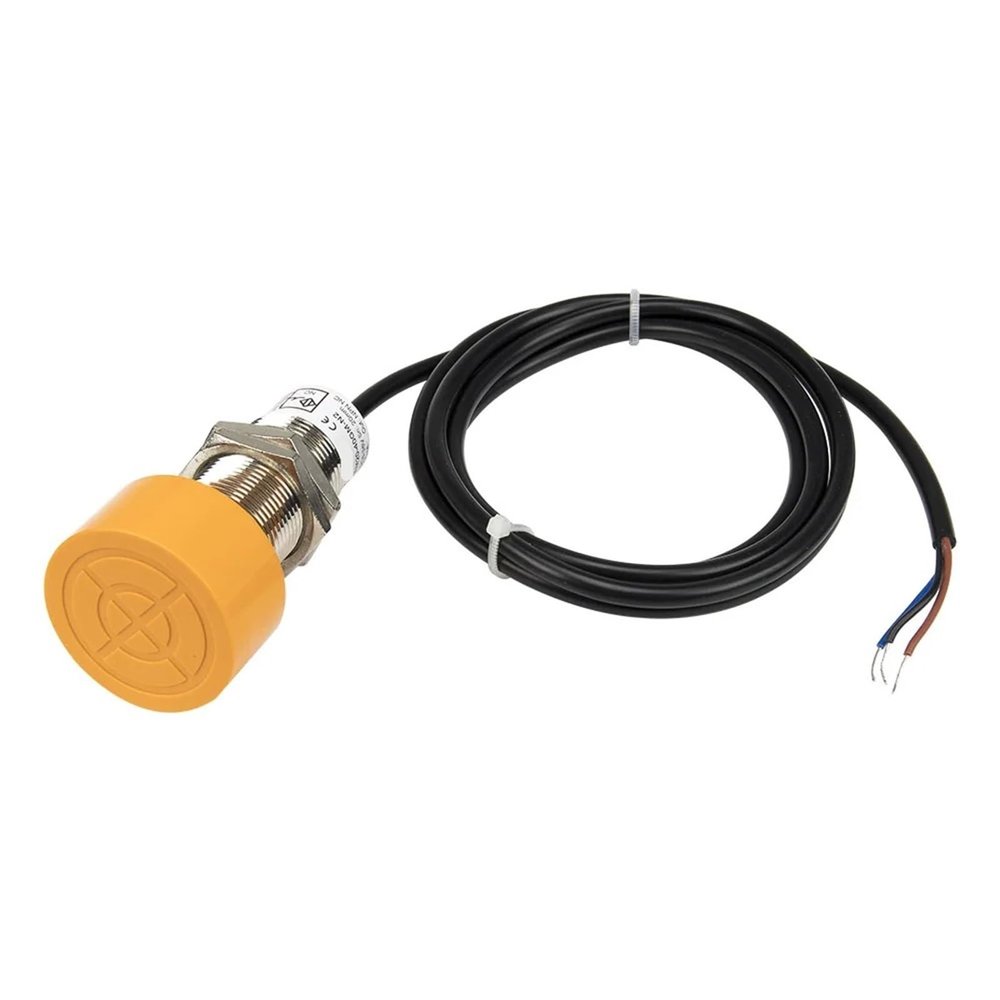

1pc M40 20mm Sensing NPN PNP NO NC GAM20-40GM-N1 N2 P1 P2 GAM20-40GM Series General inductive Proximity Sensor Switch(P1 PNP NO)

Description

• Switches
• 1pc M40 20mm sensing NPN PNP NO NC GAM20-40GM-N1 N2 P1 P2 GAM20-40GM series general inductive proximity sensor switch

Switches
GAM20-40GM series general inductive proximity sensor
Operating form and model number
Current type
Operating form
Contact form
Connection form
Model number
Related product

NPN
NO
Wire lead
GAM20-40GM-N1
Visiting...

NPN
NC
Wire lead
GAM20-40GM-N2
Visiting...

PNP
NO
Wire lead
GAM20-40GM-P1
Visiting...

PNP
NC
Wire lead
GAM20-40GM-P2
Visiting...

Two wires
NO
Wire lead
GAM20-40GM-D1
AC
Two wires
NO
Wire lead
GAM20-40GM-A1
General
Model number
GAM20-40GM series
External dimensions
40x70mm
Installation type
Non-shielded
Detection distance
20mm10%
Setting distance
0-18 mm
Supply voltage
12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current
N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object
Mild steel (40x40x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
NPN or PNP: 0.4kHz; Two wires of : 0.4kHz; Two wires of AC: 25Hz
Leakage current
N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis
10% max. of sensing distance
Protection circuit
: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance
50M min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
Temperature influence
10% max. of sensing distance at 23C within temperature range of -25C to 60C
15% max. of sensing distance at 23C within temperature range of -30C to 65C
Voltage influence
10% max. of sensing distance in rated voltage range 15%
IP Rating
IP67
Material
Case: Brass-nickel plated; Sensing surface: ABS
=========
