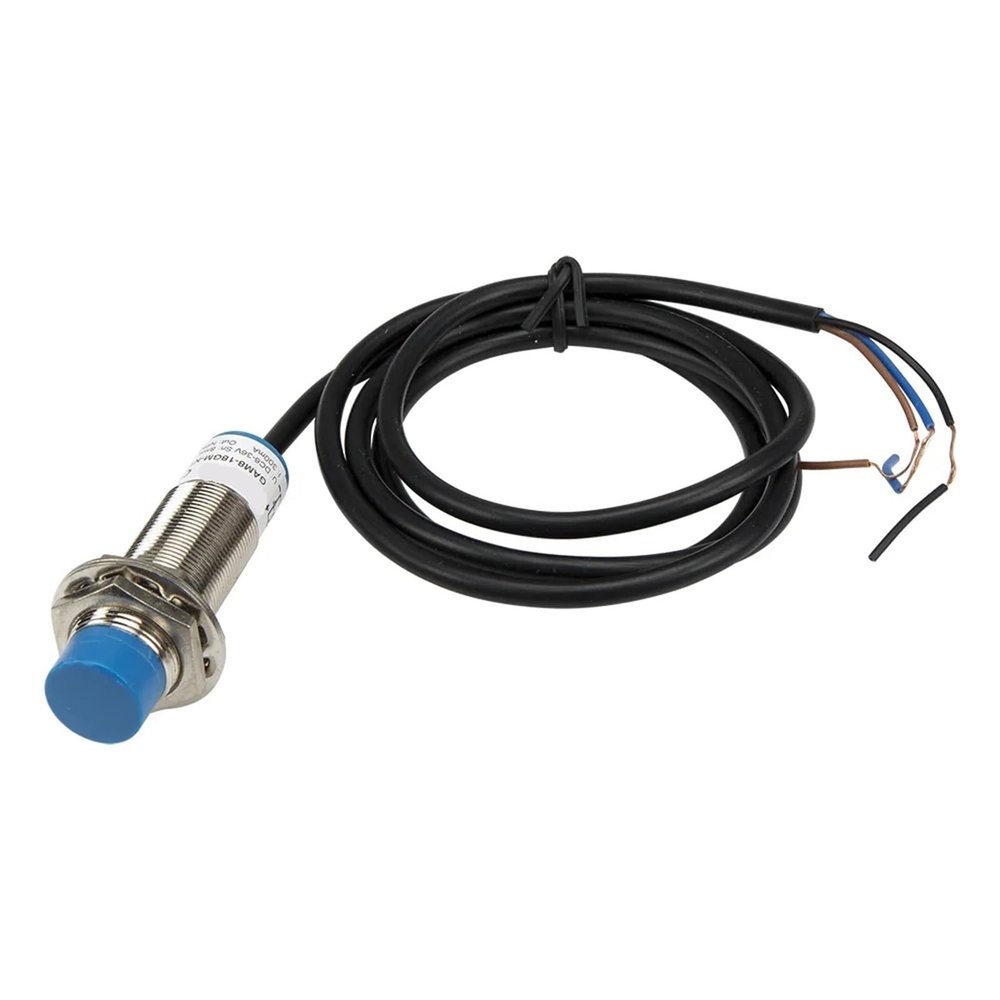

1pc M18x1x70 8mm Sensing NPN PNP NO Two Wires NO NC GAM8-18GM-N1 P1 D1 D2 General inductive Proximity Sensor Switch(N1 NPN NO)

Description

• Switches
• 1pc M18x1x70 8mm sensing NPN PNP NO two wires NO NC GAM8-18GM-N1 P1 D1 D2 general inductive proximity sensor switch

Switches
GAM8-18GM series general inductive proximity sensor
Operating form and model number
Current type
Operating form
Contact form
Connection form
Model number
Related product

NPN
NO
Wire lead
GAM8-18GM-N1
Visiting...

NPN
NC
Wire lead
GAM8-18GM-N2

NPN
NO+NC
Wire lead
GAM8-18GM-N4

PNP
NO
Wire lead
GAM8-18GM-P1
Visiting...

PNP
NC
Wire lead
GAM8-18GM-P2

PNP
NO+NC
Wire lead
GAM8-18GM-P4

Two wires
NO
Wire lead
GAM8-18GM-D1
Visiting...

Two wires
NC
Wire lead
GAM8-18GM-D2
Visiting...
AC
Two wires
NO
Wire lead
GAM8-18GM-A1
Order
AC
Two wires
NC
Wire lead
GAM8-18GM-A2
Order
General
Model number
GAM8-18GM series
External dimensions
M18x1x70
Installation type
Non-shielded
Detection distance
8mm10%
Setting distance
0-7 mm
Supply voltage
12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current
N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object
Mild steel (30x30x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
NPN or PNP: 0.2kHz; Two wires of : 0.4kHz; Two wires of AC: 25Hz
Leakage current
N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis
10% max. of sensing distance
Protection circuit
: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance
50M min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
Temperature influence
10% max. of sensing distance at 23C within temperature range of -25C to 60C
15% max. of sensing distance
