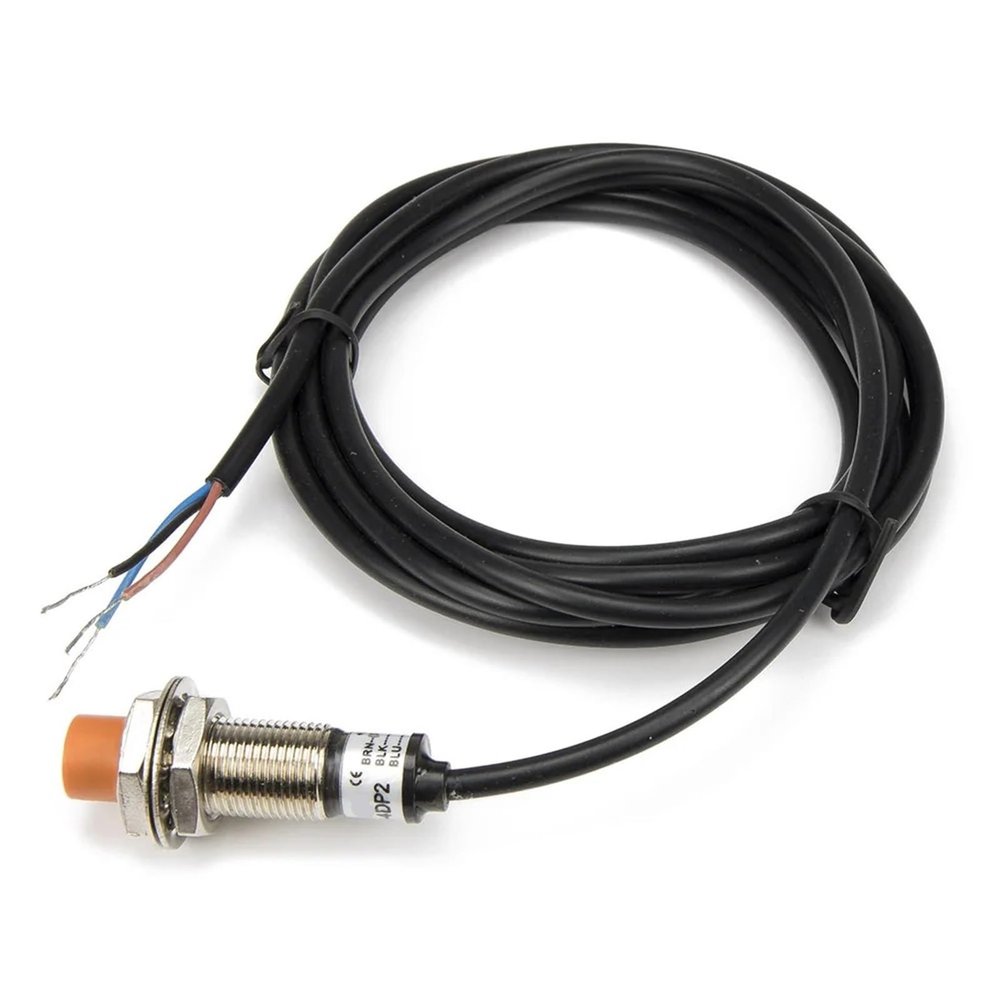

1pc M12 4mm Sensing 6-36V NPN PNP NO NC PR12-4DN PR12-4N2 PR12-4P PR12-4P2 Non-Shielded Full View Proximity Sensor Switch(PR12-4DP PNP NO)

Description

• Switches
• 1pc M12 4mm sensing 6-36V NPN PNP NO NC PR12-4DN PR12-4N2 PR12-4P PR12-4P2 non-shielded full view proximity sensor switch

Switches
PR12-4 series full view inductive proximity sensor
Operating form and parameters
Current type
Operating form
Contact form
Model number
Related product

NPN
NO
PR12-4DN
Visiting...

NPN
NC
PR12-4DN2
Visiting...

NPN
NO+NC
PR12-4DN4

PNP
NO
PR12-4DP
Visiting...

PNP
NC
PR12-4DP2
Visiting...

PNP
NO+NC
PR12-4DP4

Two wires
NO
PR12-4DO

Two wires
NC
PR12-4DC
AC
Two wires
NO
PR12-4AO
Order
AC
Two wires
NC
PR12-4AC
Order
General
Model number
PR12-4 series
External dimensions
M12x1x35.5
Installation type
Non-shielded
Detection distance
4mm10%
Setting distance
0-3.2 mm
Supply voltage
12-24Vdc (6-36Vdc); 110-220Vac (90-250Vac), 50/60Hz
Rated output current
N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object
Mild steel (15x15x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
NPN or PNP: 0.4kHz; Two wires of : 0.4kHz; Two wires of AC: 25Hz
Leakage current
N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis
10% max. of sensing distance
Protection circuit
: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance
50M min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
Temperature influence
10% max. of sensing distance at 23C within temperature range of -25C to 60C
15% max. of sensing distance at 23C within temperature range of -30C to 65C
Voltage influence
10% max. of sensing distance in rated voltage range 15%
IP Rating
IP67
Material
Case: Brass-nickel plate
