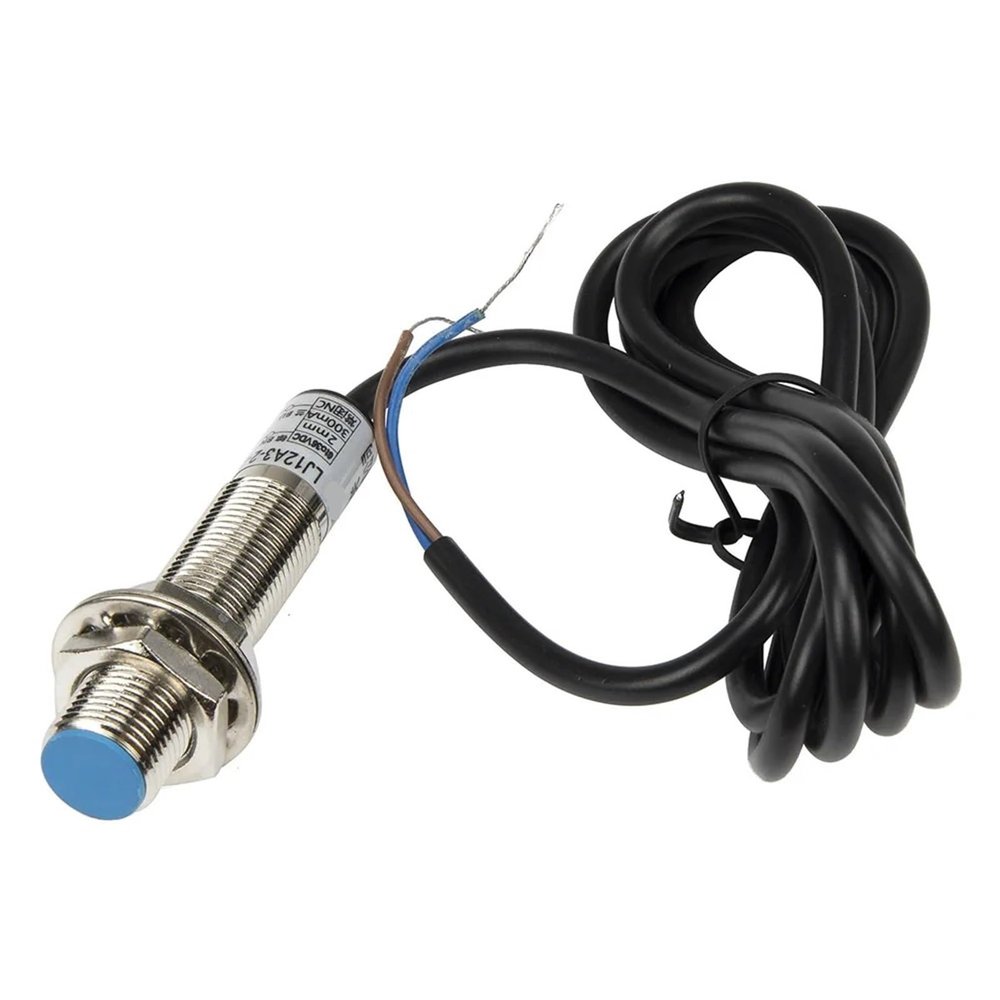

1pc M12 2mm Sensing Two Wires NO NC 6-36V LJ12A3-2-Z/EX DX AC 90-250V LJ12A3-2-J/EZ DZ Cylinder inductive Proximity Sensor Switch(J-DZ AC 2 Wires NC)

Description

• Switches
• 1pc M12 2mm sensing two wires NO NC 6-36V LJ12A3-2-Z/EX DX AC 90-250V LJ12A3-2-J/EZ DZ cylinder inductive proximity sensor switch

Switches
LJ12A3-2 series cylinder inductive proximity sensor
Operating form and model number
Current type
Operating form
Contact form
Connection form
Model number
Related product

NPN
NO
Wire lead
LJ12A3-2-Z/BX
Order

NPN
NC
Wire lead
LJ12A3-2-Z/AX
Order

NPN
NO+NC
Wire lead
LJ12A3-2-Z/CX
Order

PNP
NO
Wire lead
LJ12A3-2-Z/BY
Order

PNP
NC
Wire lead
LJ12A3-2-Z/AY
Order

PNP
NO+NC
Wire lead
LJ12A3-2-Z/CY
Order

Two wires
NO
Wire lead
LJ12A3-2-Z/EX
Visiting...

Two wires
NC
Wire lead
LJ12A3-2-Z/DX
Visiting...
AC
Two wires
NO
Wire lead
LJ12A3-2-J/EZ
Visiting...
AC
Two wires
NC
Wire lead
LJ12A3-2-J/DZ
Visiting...
General
Model number
LJ12A3-2 series
External dimensions
M12x50
Installation type
Shielded
Detection distance
2mm
Setting distance
0-1.6 mm
Supply voltage
6-36Vdc; 90-250Vac, 50/60Hz
Output current
type: 300mA max; AC Type: 400mA
Standard detected object
Mild steel (12x12x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
500Hz
Matched mounting bracket
M12 mounting bracket
Output indication
Red LED
Short-circuit protection
No
Reverse connection protection
Yes
Insulation resistance
50M min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
IP Rating
IP65
Operating temperature
-25 to 70 C (13 to 158 F)
Cable length
1.2m, PVC cable
Material
Case: Brass-nickel plated; Sensing surface: ABS
==========
Current : 300mA
Switch Type : Proximity Switch
Model Number : LJ12A3-2-Z/EX LJ12A3-2-Z/DX LJ12A3
