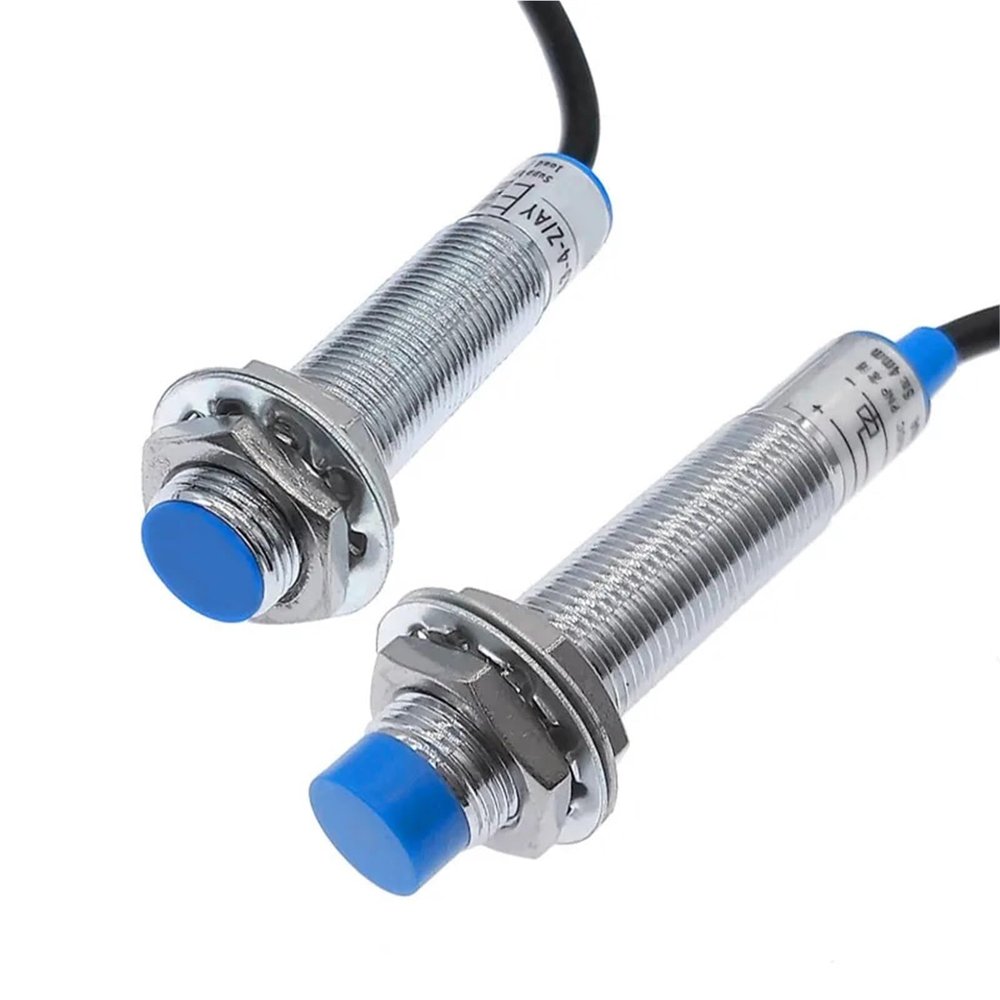

1pc LJ12A3-4-Z/BX/BY inductive Proximity Switch Sensor AX/AY/CX/EX/DX/CY/EZ/DZ PNP/NPN NO NC 4mm Detection Distance 1.2m Wire(LJ12A3-4-J-EZ)

Description

• Switches
• 1pc LJ12A3-4-Z/BX/BY inductive Proximity switch sensor AX/AY/CX/EX/DX/CY/EZ/DZ PNP/NPN NO NC 4mm detection distance 1.2m wire

Switches
LJ12A3-4-Z/BY: PNP NO3-Line type 12mm diameter ; 4mm detection distance
LJ12A3-4-Z/AY: PNP NC3-Line type 12mm diameter ; 4mm detection distance
LJ12A3-4-Z/BX: NPN NO 3-Line type 12mm diameter ; 4mm detection distance
LJ12A3-4-Z/AX: NPN NC 3-Line type12mm diameter ; 4mm detection distance
LJ12A3-4-Z/CX: NPNNO+NC 4-Line type12mm diameter ; 4mm detection distance
LJ12A3-4-Z/CY: PNPNO+NC4-Line type12mm diameter ; 4mm detection distance
LJ12A3-4-Z/EX:NO 2-Line type12mm diameter ; 4mm detection distance
LJ12A3-4-Z/DX:NC 2-LineDCtype12mm diameter ; 4mm detection distance
LJ12A3-4-J/EZ: NO2-Line AC type12mm diameter ; 4mm detection distance
LJ12A3-4-J/DZ: NC 2-Line AC type12mm diameter ; 4mm detection distance
[Main Parameter]
Detection distance :4mm 10%
Set distance:0~3.6mm
Current: 6V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A
Delay distance:10% below of the detection distance
Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object:Iron 15*15*1mm
Response frequency::0.5kHz
Supply voltage: type:DC12V DC24V DC36V(6~36V)impulse(p-p)10% below
Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing
Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)
This product can be applied tocontrol relays, counters, etc.!
==========
Current : 200mA
Material : Alloy
Switch Type : Proximity Switch
Model Number : LJ12A3-4
Features : LJ12A3-4
Item Type : SWITCHES
