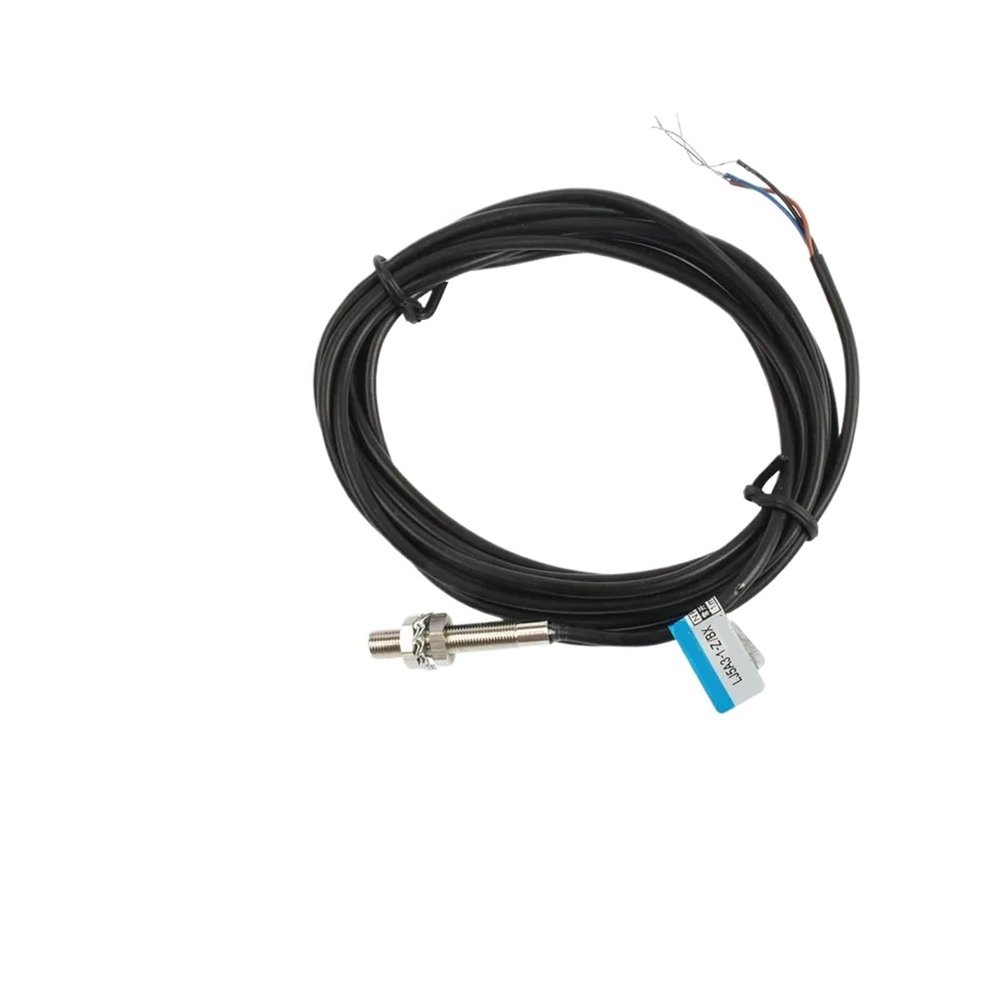

1pc Inductive Proximity Sensor,LJ5A3-1-Z/BX DC6-36V 3Wire NO NPN 200mA Proximity Switch Sensor Switch(LJ5A3-1-Z EX)

Description

• Switches
• 1pc Inductive Proximity Sensor,LJ5A3-1-Z/BX DC6-36V 3Wire NO NPN 200mA Proximity Switch sensor switch

Switches
Size
Installation method
Shielded
Model
type
NPN
NO
LJ5A3-1-Z/BX
NC
LJ5A3-1-Z/AX
NO+NC
PNP
NO
LJ5A3-1-Z/BY
NO
LJ5A3-1-Z/AY
NO+NC

NO
LJ5A3-1-Z/EX
NC
AC type

NO
NC

NO+NC
Detection distance
1mm 10%
Set distance
0-0.7mm
Lag distance
Less than 10% of detection distance
Detect object
Magnetic metal (the detection distance is reduced when the metal is non-magnetic)
Standard detection object
Iron 5*5*1mm
Response frequency
:0.5kHz AC:25Hz
voltage
type:DC12-24V(6-36V) Pulsation (P-P) below 10%,
AC type:AC110-220V(36-250V)50/60Hz
Withstand voltage
AC1000V 50/60Hz 1min between charging part and case
Influence of voltage
Within 15% of the rated power supply voltage range, within 10% of the detection distance at the rated power supply voltage value
Current consumption
N.P type: 13mA or less, D type: 0.8mA or less, A type: 1.7mA or less
Control output
N.P type: 300mA or less, D type: 200mA or less, A type: 400mA or less
Circuit protection
N.P.D type: reverse connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Environmental temperature and humidity
During operation and storage: -30-+65each
(No icing, no frost), during operation and storage: 35-95%RH each
The influence of temperature
Temperature range -30-+65, at +23, within 15% of detection distance
Temperature range of -25- + 60, + when 23, 10% or less from the detector
Insulation resistance
Above 50M (DC500 megohmmeter) between the charging part and the shell
Material
Shell: nickel-plated brass Detection surface: ABS
==========
Hign-concerned Chemical : None
Material : Alloy
Switch Type : Proximity Switch
Model Number : LJ5A3-1-Z/BX LJ5A3-1-Z/AX LJ5A3-1-Z/BY LJ5A3-1-Z/AY LJ5A3-1-Z/EX
Item Type : S
