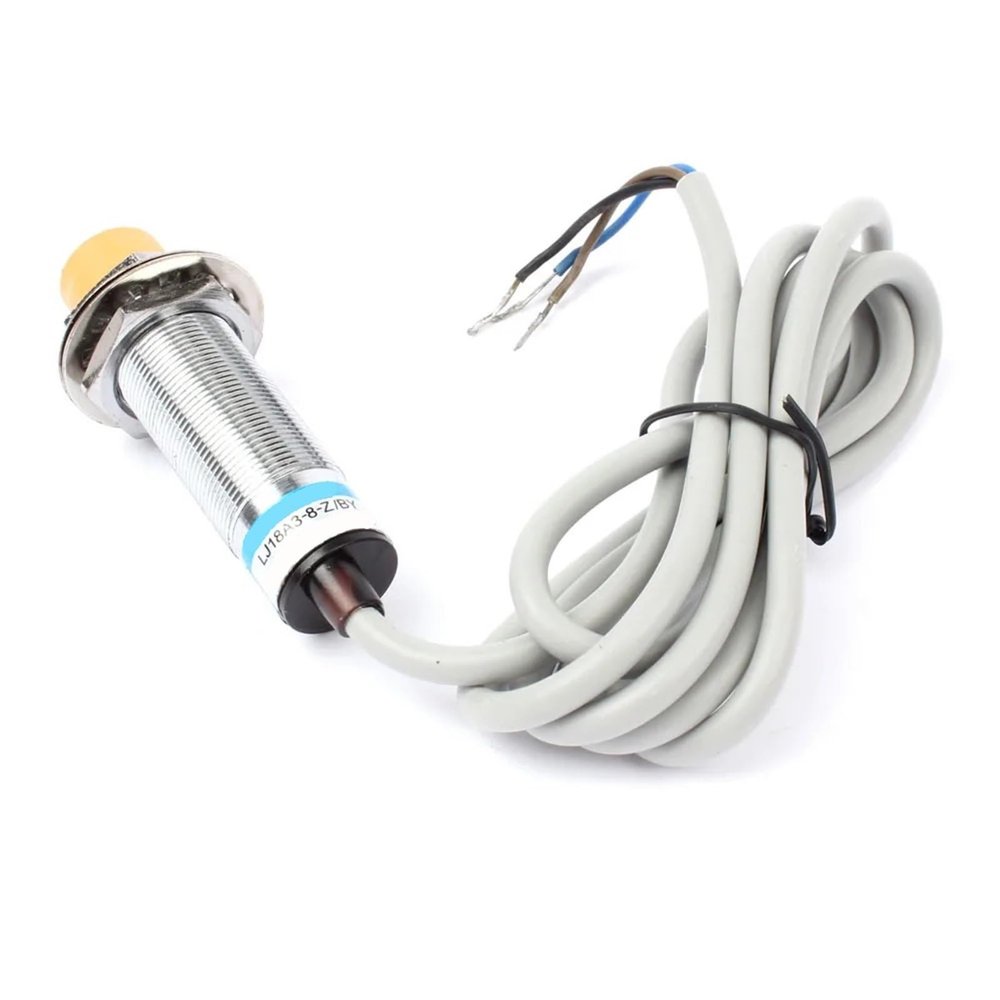

1pc Inductive Proximity Sensor,LJ18A3-8-Z/BY PNP 3-Wire NO,Diameter 18mm,Proximity Switch(LJ18A3-8-Z AX)

Description

• Switches
• 1pc Inductive Proximity Sensor,LJ18A3-8-Z/BY PNP 3-wire NO,diameter 18mm,Proximity Switch

Switches
Size
Installation method
Unshielded
Model
type
NPN
NO
LJ18A3-8-Z/BX
NC
LJ18A3-8-Z/AX
NO+NC
LJ18A3-8-Z/CX
PNP
NO
LJ18A3-8-Z/BY
NC
LJ18A3-8-Z/AY
NO+NC
LJ18A3-8-Z/CY
2-wire
NO
LJ18A3-8-Z/EX
NC
LJ18A3-8-Z/DX
AC type
2-wire
NO
LJ18A3-8-Z/EZ
NC
LJ18A3-8-Z/DZ
3-wire
NO+NC
LJ18A3-8-Z/EDZ
Detection distance
8mm 10%
Set distance
0-7mm
Lag distance
Less than 10% of detection distance
Detect object
Magnetic metal (detection distance decreases when non-magnetic metal)
Standard detection object
Iron 30*30*1mm
Response frequency
:0.5kHz AC:25Hz
Voltage
type: DC12-24V (6-36V) pulsation (P-P) below 10%,
AC type: AC110-220V (36-250V) 50/60Hz
Withstand voltage
AC1000V 50/60Hz 1min between charging part and case
Influence of voltage
Within 15% of the rated power supply voltage range, within 10% of the detection distance at the rated power supply voltage value
Current consumption
N.P type: 13mA or less, D type: 0.8mA or less, A type: 1.7mA or less
Control output
N.P type: 300mA or less, D type: 200mA or less, A type: 400mA or less
Circuit protection
N.P.D type: reverse connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Environmental temperature and humidity
During operation and storage: -30-+65 each
(No icing, no frost), during operation and storage: 35-95%RH each
The influence of temperature
Temperature range -30-+65, at +23, within 15% of detection distance
Temperature range -25-+60, at +23, within 10% of detection distance
Insulation resistance
Above 50M (DC500 megohmmeter) between the charging part and the shell
Material
Shell: nickel-plated brass Detection surface: ABS
Inductive Pro
