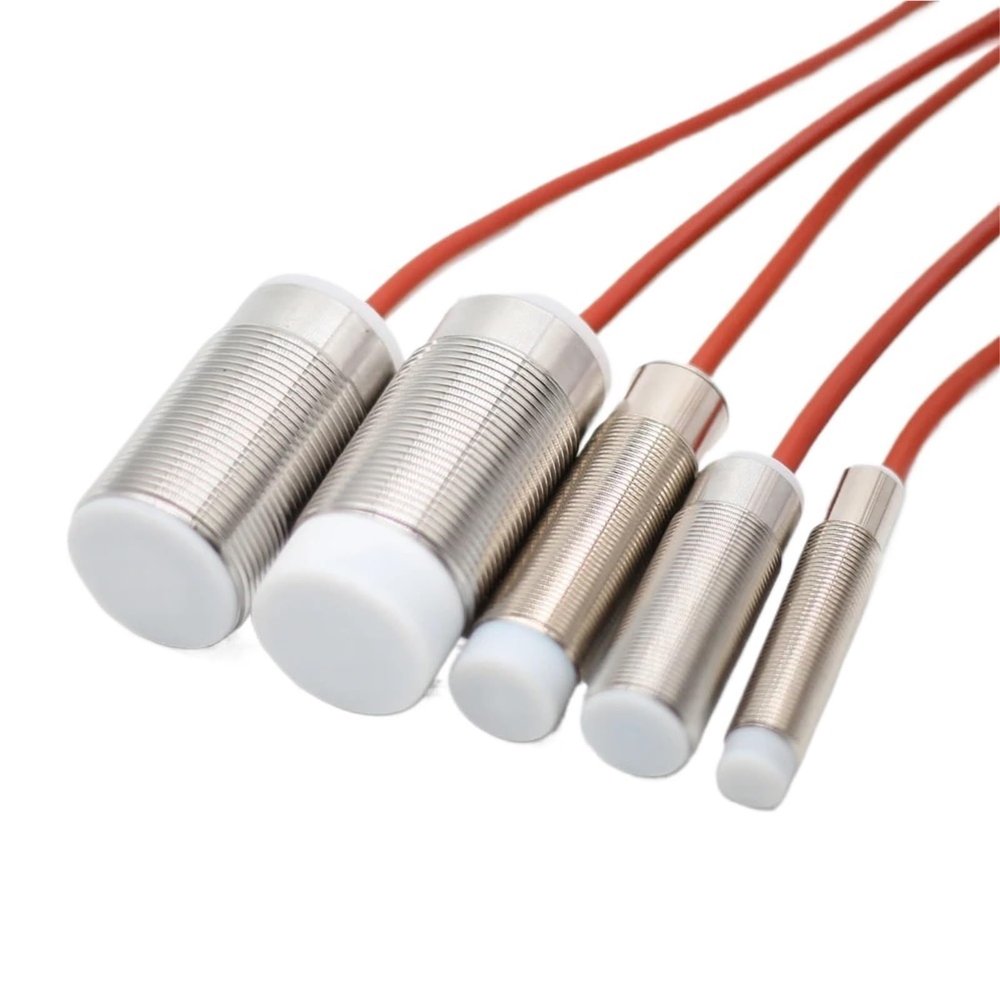

1pc High Temperature Proximity Switch M12/M18/M30 150 Sensor Three-Wire NPN PNP NO NC Metal Induction(M30 Shielded,NPN NO)

Description

• Switches
• 1pc High Temperature Proximity Switch M12/M18/M30 150 Sensor Three-wire NPN PNP NO NC Metal Induction

Switches
Size
M12 / M18 / M30
No load current
10mA
Maximum load current
150mA
Installation method
flush/non flush
Switching frequency
M12: 1000Hz / 500Hz
M18:500Hz/400HZ
M30:400Hz/300Hz
Detection distance
M12: flush 2mm/non flush 4mm
M18: flush 5mm/non flush 8mm
M30: flush 10mm/non flush 15mm
Response time
0.5ms
Shell material
nickel plated
Switching hysteresis
<;15% (SR)
Wire material
250high temperature silicone wire
Protection grade
IP67
LED indicator
Yes
Working
environment temperature
M12:0- 120M18/M30:0-150
Output mode
NPN PNP NO NC
Overload current
protection point
M12/M18: 180mA
M30:150mA
Working voltage
10-30vdc
Standard line length
2m
==========
Hign-concerned Chemical : None
Current : 150mA
Material : Copper
Switch Type : Proximity Switch
Model Number : GLJ12/18/30
Features : High temperature resistance
Item Type : SWITCHES
Is Smart Device : No
Maximum load current : 150mA
Switching frequency : M12: 1000Hz / 500Hz;M18:500Hz/400HZ;M30:400Hz/300Hz
Response time : 0.5ms
<;15% (SR)
Protection grade : IP67
Working environment temperature : M12:0- 120;M18/M30:0-150
Overload current protection point : M12/M18:180mA ; M30:150mA
Standard line length : 2m
No load current : 10mA
Installation method : flush/non flush
Shell material : nickel plated
Wire material : 250 high temperature silicone wire
LED indicator : Yes
Output mode : NPN PNP NO NC
Working voltage : 10-30vdc
Detection distance : M12: flush 2mm/non flush 4mm,M18: flush 5mm/non flush 8mm,M30: flush 10mm/non flush 15mm
