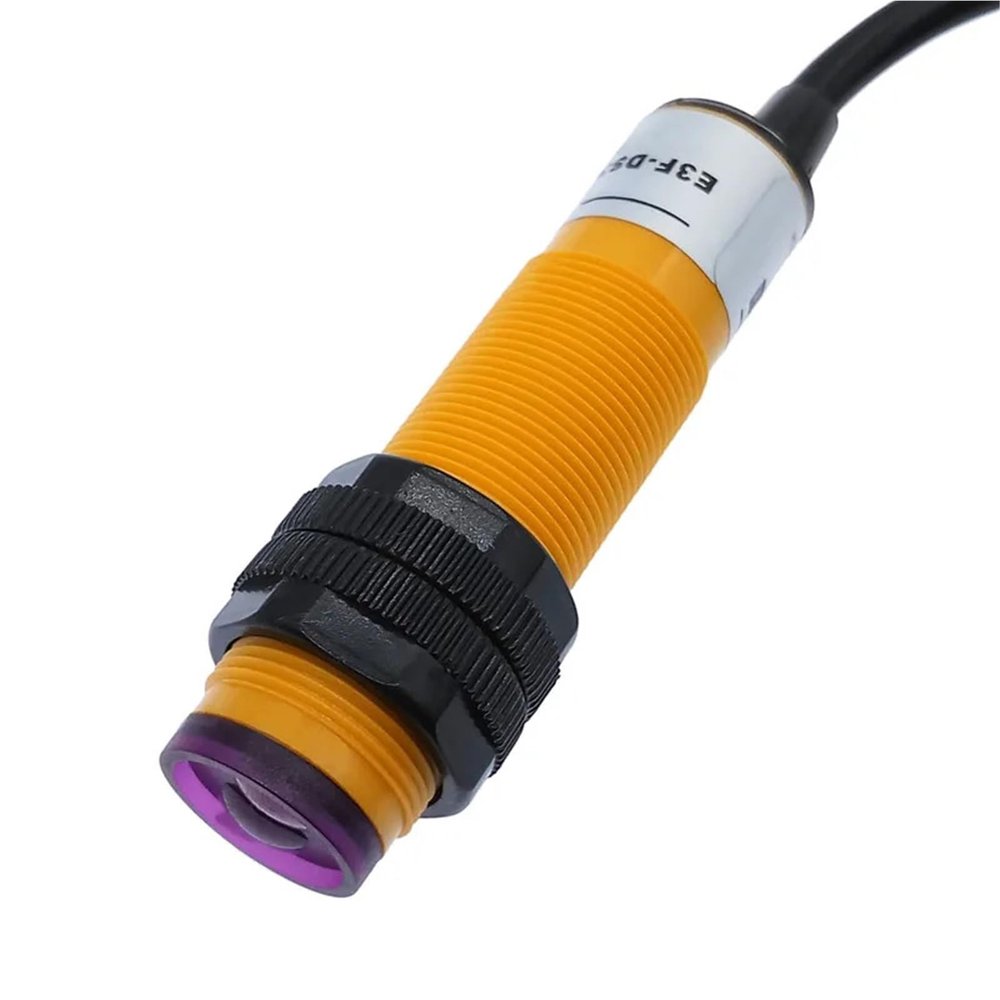

1pc E3F-DS30C4 Proximity Switch Sensor Switch NPN PNP DC5-36V 30cm Detection Range Adjustable E3F-DS30P1/P2/C2/Y1(E3F DS30 P1)

Description

• Switches
• 1pc E3F-DS30C4 Proximity Switch sensor switch NPN PNP DC5-36V 30cm Detection Range Adjustable E3F-DS30P1/P2/C2/Y1

Switches
[product name]: switch
[size]: 18mm
[detection mode]: diffuse reflection type
[detection range]: 30cm
[work voltage]: 5-36V
[output form]: three line type
Diffuse reflection type switch is made up of light projector and light receptor, which is one of standard configurations. When the light beam comesfrom the projuctor, the target creates diffuse reflection; when there is enough combination light back to the light receptor, the switch state will change; Effectiveoperating distance depends on the reflectibe capacity of the target, as well as the surface property and color. Teh change capacity with sensitivity adjuster can assumecompensation action; The equipment has lower consumption. When the optical sensor is made up of a single element, rough location can usually be achieved; Adoptsthe function of background rejection to regulate the measuring distance; sensitive to the dust on the target and sensitive to the changed reflective performance of thetarget.
==========
Current : 200mA
Material : Copper
Switch Type : Switch
Model Number : E3F-DS30P1/P2/C4/C2/Y1
Features : DC5-36V
Item Type : SWITCHES
