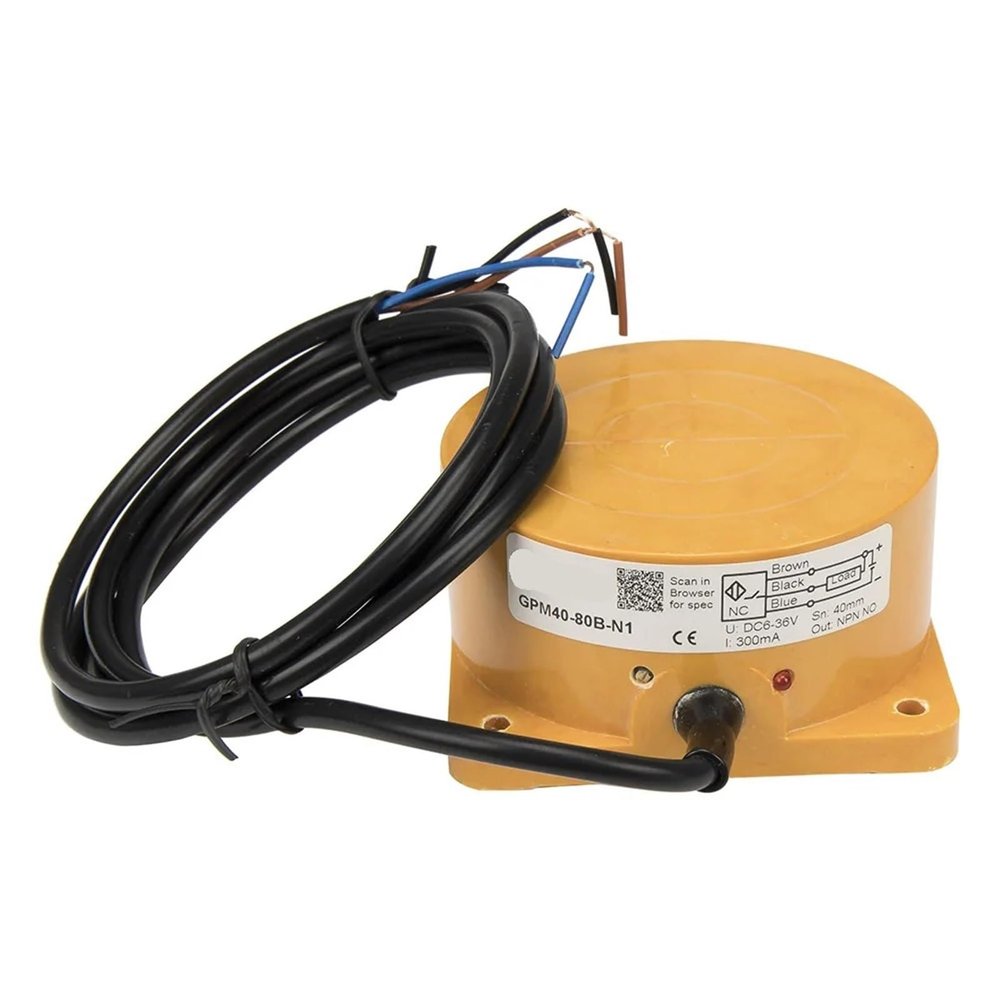

1pc Dia.80 40mm Sensing Three Wires NPN NO NC GPM40-80B N1 N2 P1 P2 TCO-3040 Panel mounting inductive Proximity Sensor Switch(N1 NPN NO)

Description

• Switches
• 1pc Dia.80 40mm sensing three wires NPN NO NC GPM40-80B N1 N2 P1 P2 TCO-3040 panel mounting inductive proximity sensor switch

Switches
GPM40-80B series panel mounting inductive proximity sensor
Operating form and model number
Current type
Operating form
Contact form
Connection form
Model number
Related product

NPN
NO
Wire lead
GPM40-80B-N1
Visiting...

NPN
NC
Wire lead
GPM40-80B-N2
Visiting...

NPN
NO+NC
Wire lead
GPM40-80B-N4

PNP
NO
Wire lead
GPM40-80B-P1
Visiting...

PNP
NC
Wire lead
GPM40-80B-P2
Visiting...

PNP
NO+NC
Wire lead
GPM40-80B-P4

Two wires
NO
Wire lead
GPM40-80B-D1

Two wires
NC
Wire lead
GPM40-80B-D2
AC
Two wires
NO
Wire lead
GPM40-80B-A1
AC
Two wires
NC
Wire lead
GPM40-80B-A2
AC
Three wires
NO+NC
Wire lead
GPM40-80B-W
General
Model number
GPM40-80B series
External dimensions
80x40
Installation type
Non-shielded
Detection distance
40mm10%
Setting distance
0-35 mm
Supply voltage
12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current
N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object
Mild steel (80x80x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
NPN or PNP: 0.2kHz; Two wires of : 0.2kHz; Two wires of AC: 25Hz
Leakage current
N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis
10% max. of sensing distance
Protection circuit
: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance
50M min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
Temperature influence
10% max. of sensing distance at 23C within temperature range of
