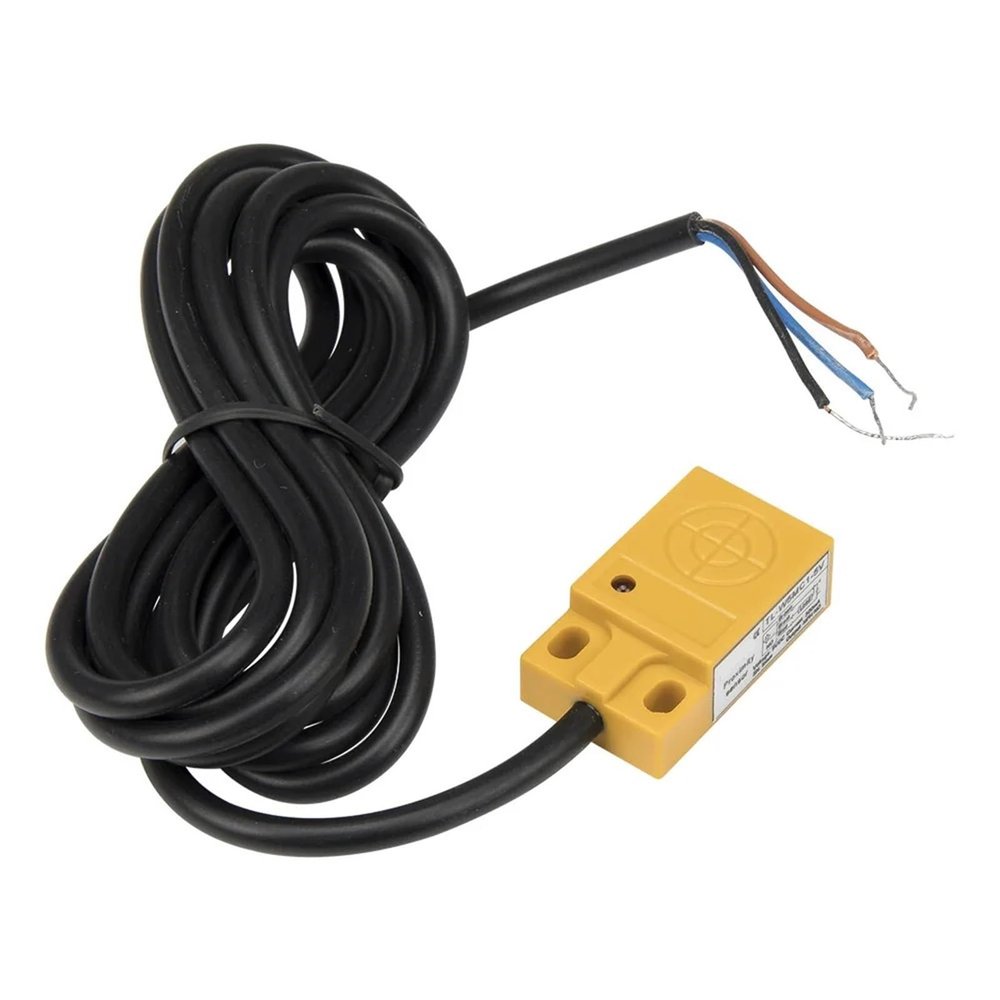

1pc 30x18x10 5mm Sensing NPN PNP NO NC 5V TL-W5MC1-5V F1-5V Flat Shape inductive Proximity Sensor Switch 5VDC Special for MCU(C1-5V NPN NO)

Description

• Switches
• 1pc 30x18x10 5mm sensing NPN PNP NO NC 5V TL-W5MC1-5V F1-5V flat shape inductive proximity sensor switch 5VDC special for MCU

Switches
TL-W5M series flat shape inductive proximity sensor
Operating form and model number
Current type
Operating form
Contact form
Model number
Supply voltage
Related product

NPN
NO
TL-W5MC1
6-36VDC
Order

NPN
NO
TL-W5MC1-5V
5VDC
Visiting...

NPN
NC
TL-W5MC2
6-36VDC
Order

NPN
NC
TL-W5MC2-5V
5VDC
Visiting...

PNP
NO
TL-W5MF1
6-36VDC
Order

PNP
NO
TL-W5MF1-5V
5VDC
Visiting...

PNP
NC
TL-W5MF2
6-36VDC
Order

PNP
NC
TL-W5MF2-5V
5VDC

Two wires
NO
TL-W5MD1
6-36VDC
Order

Two wires
NC
TL-W5MD2
6-36VDC
AC
Two wires
NO
TL-W5MY1
90-250VAC
AC
Two wires
NC
TL-W5MY2
90-250VAC
General
Model number
TL-W5M series
External dimensions
30x18x10
Installation type
Non-shielded
Detection distance
5mm10%
Setting distance
0-4 mm
Supply voltage
6-36VDC; 90-250VAC, 50/60Hz
Rated output current
N.P Type: 200mA max; D type: 200mA max; AC Type: 500mA
Standard detected object
Mild steel (18x18x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
NPN or PNP: 0.5kHz; Two wires of : 0.5kHz; Two wires of AC: 25Hz
Matched mounting bracket
11mm center-to-center mounting distance square mounting bracket
Leakage current
N.P Type: 0.05mA max; D type: 0.4mA max; A Type: 1.6mA max
Hysteresis
10% max. of sensing distance
Protection circuit
: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance
50M min (between charging part and housing)
Dielectric strength
1000Vac, 1min (between charging part and housing)
Temperature influence
