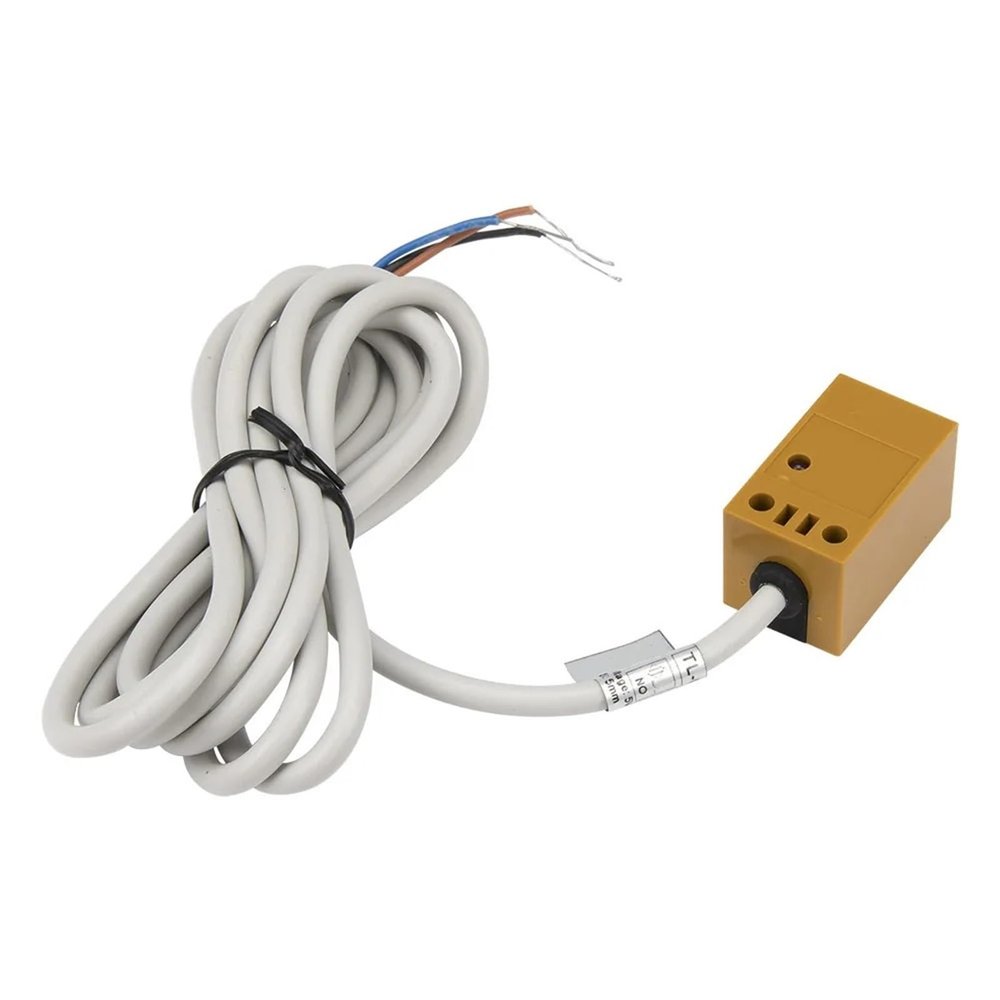

1pc 17x17x28 5mm Sensing 5V NPN PNP NO NC TL-Q5MC1-5V C2-5V F1-5V Prism Shape Proximity Sensor Switch 5VDC Special for MCU(C2-5V NPN NO)

Description

• Switches
• 1pc 17x17x28 5mm sensing 5V NPN PNP NO NC TL-Q5MC1-5V C2-5V F1-5V prism shape proximity sensor switch 5VDC special for MCU

Switches
5V NPN NO proximity sensor:M8 2mmM12 4mmM18 8mmM30 15mm30x18x10 5mm
5V NPN NC proximity sensor:M8 2mmM18 8mm
5V PNP NO proximity sensor:M18 8mm17x17x28 5mm
5V NPN NO sensor:M18 10cmM18 80cmM8 20m (Laser)M12 30m (Laser)
TL-Q5M series prism shape inductive proximity sensor
Operating form and model number
Current type
Operating form
Contact form
Model number
Supply voltage
Related product

NPN
NO
TL-Q5MC1
12-24VDC
Order

NPN
NO
TL-Q5MC1-Z
12-30VDC

NPN
NO
TL-Q5MC1-5V
5VDC
Visiting...

NPN
NC
TL-Q5MC2
12-24VDC
Order

NPN
NC
TL-Q5MC2-5V
5VDC
Visiting...

PNP
NO
TL-Q5MF1
12-24VDC
Order

PNP
NO
TL-Q5MF1-5V
5VDC
Visiting...

PNP
NC
TL-Q5MF2
12-24VDC
Order

PNP
NC
TL-Q5MF2-5V
5VDC

Two wires
NO
TL-Q5MD1
12-24VDC
Order

Two wires
NC
TL-Q5MD2
12-24VDC
Order
AC
Two wires
NO
TL-Q5MY1
90-250VAC
Order
AC
Two wires
NC
TL-Q5MY2
90-250VAC
Order
General
Model number
TL-Q5M series
External dimensions
17x17x28
Installation type
Non-shielded
Detection distance
5mm10%
Setting distance
0-4 mm
Supply voltage
12-24Vdc,10-30Vdc, 5Vdc; 90-250Vac, 50/60Hz
Rated output current
N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object
Mild steel (18x18x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency
NPN or PNP: 0.6kHz; Two wires of : 0.5kHz; Two wires of AC: 25Hz
Matched mounting bracket
11mm center-to-center mounting distance square mounting bracket
Leakage current
N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis
10% ma
