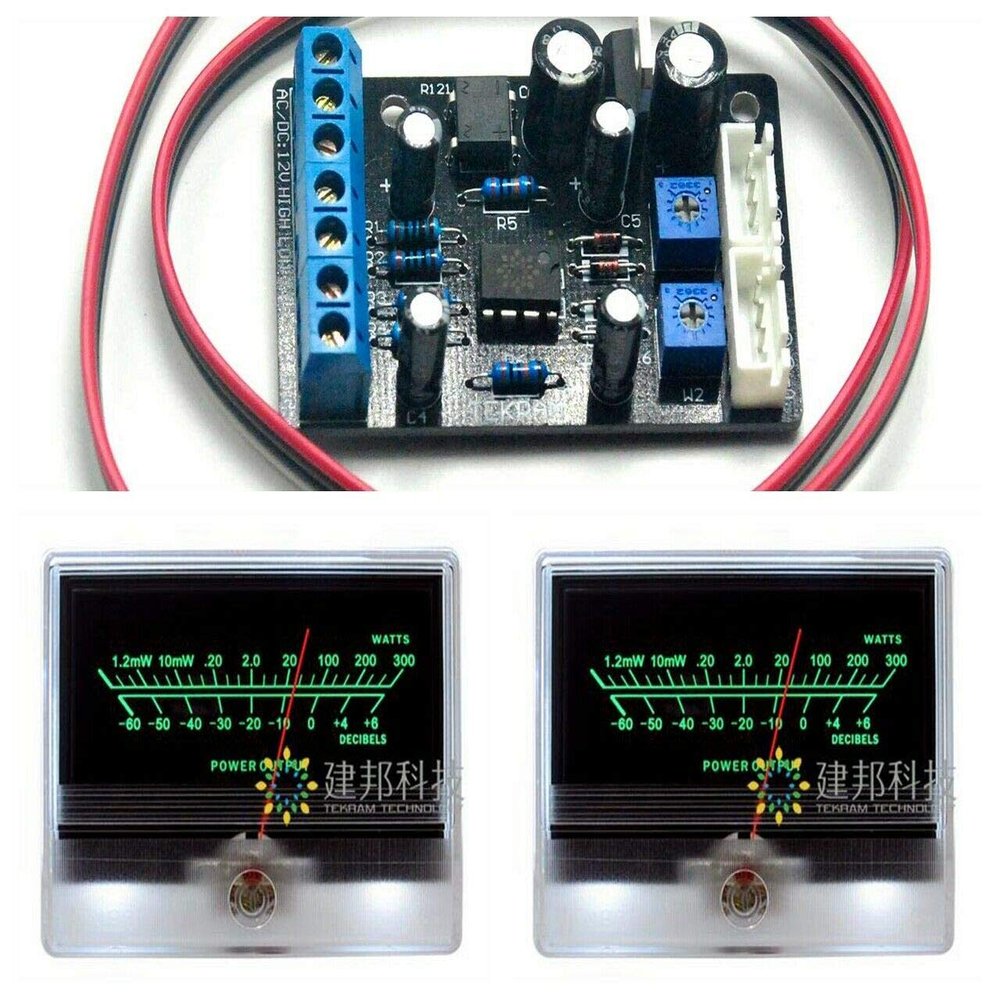

1pair TN-90A VU Panel Meters DB Level Header Backlight w 1pcs Power Driver Board

Description

• Pointers Material:Zinc white copper
• The direction of the pointer swing : left to right
• Pointer length : 44 1 mm from the center axis to the needle end
• Pointer width : 0.45 0.05 mm
• Overall Size:90mm(L) x 70mm(H) Display Area:80mm(L) x 45mm (H)

Parameters
Pointers Material:Zinc white copper
Pointer color:orange
The direction of the pointer swing : left to right
Pointer length : 44 1 mm from the center axis to the needle end
Pointer width : 0.45 0.05 mm
Overall Size:90mm(L) x 70mm(H)
Display Area:80mm(L) x 45mm (H)

Features
*Standard test conditions temperature: 20 , humidity 70% . Can also be tested under normal temperature and humidity
*The influenza degree pointer at the zero scale to the maximum scale sensitivity of 300uA 10% (full scale position) internal impedance :800 10%
*Insulation impedance meter outside the box plus the electrical circuit with 500V DC plus 50M ohm meter shell
*Electrical insulation of the circuit impedance is 500V DC voltage test of the insulation value. Pointer to overlap with the zero-scale tolerance of 1mm balanced meter using a standard position and tilt 90 degrees to allow the error range of 1mm
*pointer to mount the current instant plus three times the full scale current, and slowly reduced to the the electric influenz degree 1/2 reading
*The pointer will return to the scale plate within 1/3 scale friction meter coupled with the current, and slowly increase or decrease to a certain value, indicating the point of error range of 1mm,brake instantly plus scale plate 2/3 of the current value of the pointer indicates the location of the time required for a second or less.

Package
1pcs TN-90A VU Panel Meters DB Level Header Detectors Chassis w Backlight
1pcs Power Supply Driver Board

The descriptions of TA7318P driver board is listed below, https://www.ebay.co.uk/itm/283244882954
