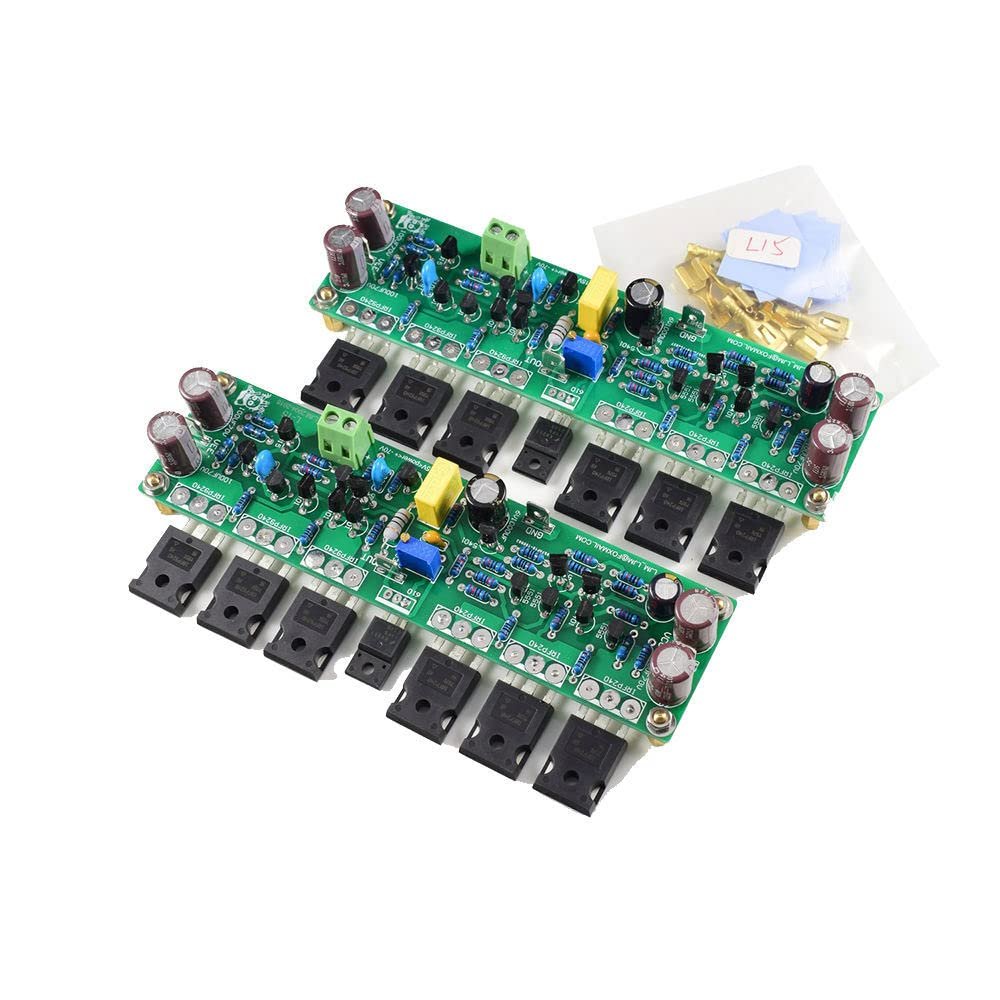

1pair L15 MOSFET Stereo Board 2-Channel AMP 300W 8R Class AB IRFP240 IRFP9240 A5-008

Description

• 1pair L15 MOSFET Stereo Board 2-Channel AMP 300W 8R Class AB IRFP240 IRFP9240 A5-008

stereo 1pair L15 MOSFET Amplifier Board 2-Channel AMP 300W 8R CLASS AB IRFP240 IRFP9240
Specifications:
L15 FET power amplifier, using uncoupled input (through)
Full field effect tube output (IRFP240 IRFP9240)
Note that L15 and all L series products do not provide circuit diagram data, PCB data.
Each set of L15 finished boards has been strictly tested.
Indicator data measurement is made by Audio Precision 2 test data
Audio Precision 2 is the world's recognized audio test standard, the highest standard of audio test performance.
IRFP240 parameters: VDS =200V, ID=20A, PD=150W
IRFP9240 parameters: VDS=200V, ID=12A, PD=150W
The product is equipped with insulating sheets.
index parameter:
Frequency response range: 5 HZ -0.1DB, 250K HZ -3DB
Package included:
1Pair amplifier audio board
Frequency response test: Audio Precision 2 test
Frequency response test:
10HZ-30 K HZ -0.05 DB
Voltage range: DC +-15V to DC + -70V
Power: 150W 8R, 300W 4R, 600W 2R. (+ -55V power supply)
SR >20V /US
THD> 0.02% 150W 8R. A weighting
SNR> 97DB
VOLTAGE GAIN=31 times
PCB size area = length 150MM, width =40 MM.
