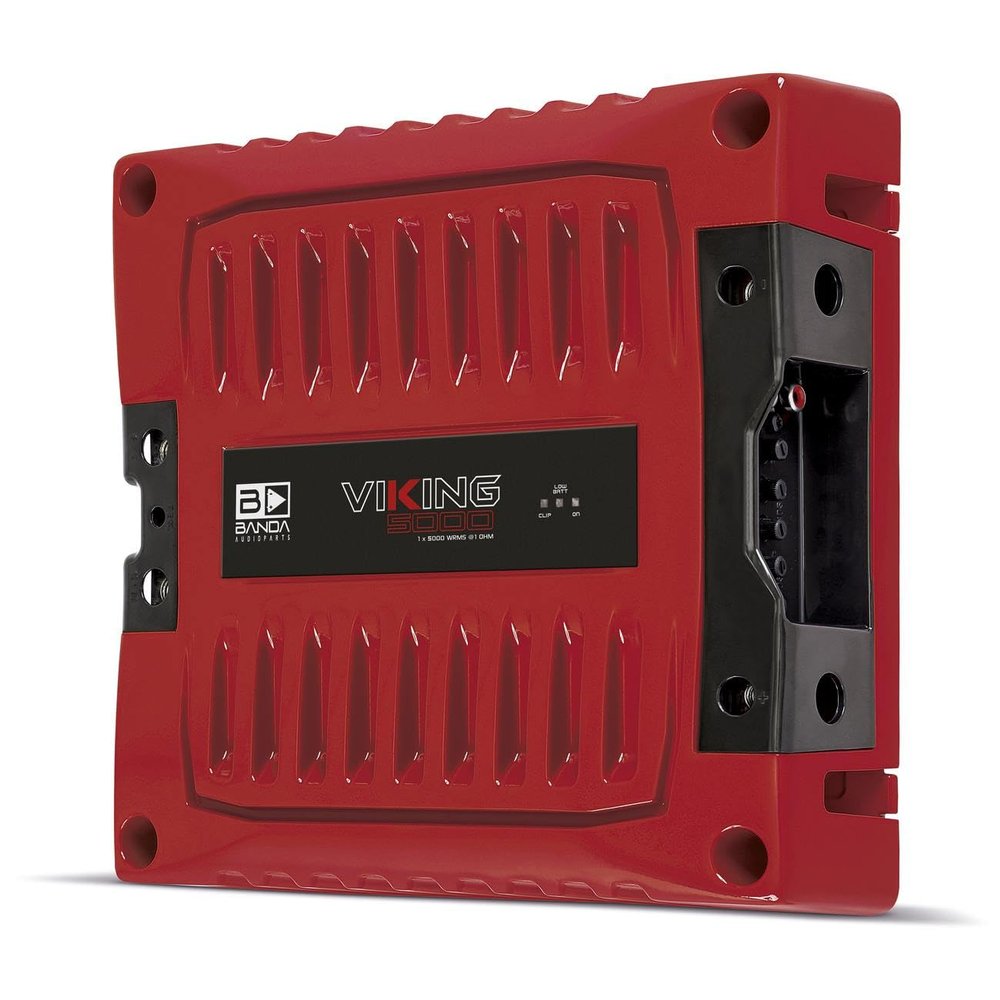

1-Channel Vehicle Audio Bass Amplifier - High-Powered Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 1 ohm, LED Indicators, Sound Specialization, Red- BANDA VIKING5000.1RED

Description

• POWER SUPPLY: Class D vehicle audio amplifier, Total Power 14,4 @ 1 Ohm: 6200 WRMS, Total Power 14,4 @ 2 Ohms: 4300 WRMS, Total Power 12,6 @ 1 Ohm: 5500 WRMS. Total Power 12,6 @ 2 Ohms: 3600 WRMS, Efficiency @ 2 Ohms: 77%, Efficiency @ 1 Ohm: 67%
• MONO BASS AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion (clipping), Constant - output short circuit indicator, Yellow LED: low voltage battery, Constant - Fuse blown or missing
• POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 100K Ohms, THD + Noise: less than 1%, Input Sensitivity: 40mV to 2V, Signal to Noise Ratio: 90dB
• SOUND SPECIALIZATION: This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
• OTHER TECHNICAL SPECS: Recommended Fuse: 100 A, Current at Rest: 1 A, Average Current Draw (Sinusoidal): 210 A, Average Current Draw (Music): 100 A, Power Wire Gauge (min. Recommended): 21mm / 4 AWG, Speaker Wire Gauge (min. Recommended): 2 x 2,5mm / 2 x 13 AWG, Height (in): 2.2, Width (in): 8,4, Depth (in): 9,7

* Class D * Total Power 14.4 @ 1 Ohm: 6200 WRMS * Total Power 14.4 @ 2 Ohms: 4300 WRMS * Total Power 12.6 @ 1 Ohm: 5500 WRMS * Total Power 12.6 @ 2 Ohms: 3600 WRMS * Efficiency @ 2 Ohms: 77% * Efficiency @ 1 Ohm: 67% * Input Voltage: 9 to 15V * Input Impedance: 100K Ohms * THD+Noise: less than 1% * Input Sensitivity: 40mV to 2V * SNR: 90dB * Frequency Response (Key OFF): 5 to 5KHz (-3dBs) * Frequency Response: 20 to 5KHz (-3dBs) * Bass Bosst @ 45Hz: Variable 0 to +18dBs * HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley * LPF (Crossover): 80 to 5kHz @ 12dB/octave Linkwitz-Riley * Recommended Fuse: 250 A * Current at Rest: 3.5 A * Average Current Draw (Sinusoidal): 600 A * Average Current Draw (Music): 270 A * Power Wire Gauge (min. Recommended): 50mm / 0 AWG * Speaker Wire Gauge (min. Recommended): 2 x 6mm / 2 x 3 AWG * Weight (Lb): 11.9 * Height (in): 2.4 * Width (in): 10.6 * Depth (in): 12.3
