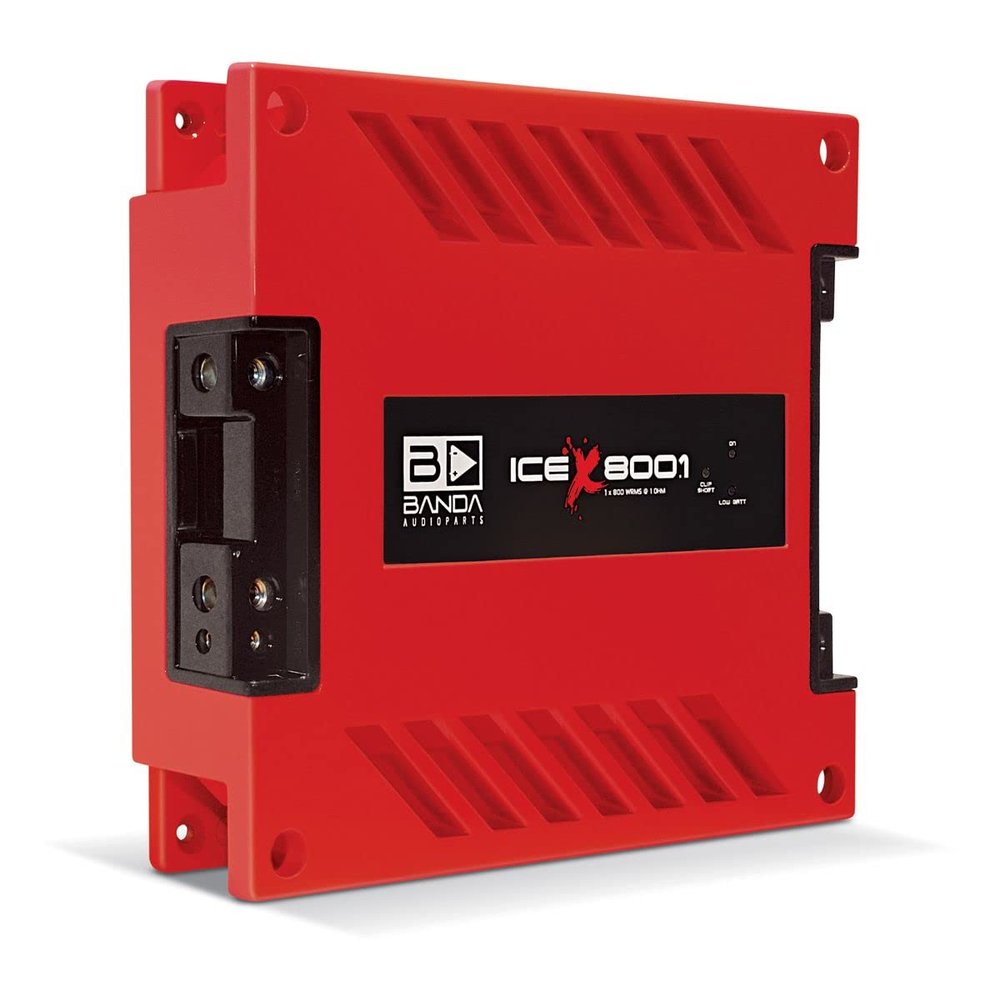

1-Channel Vehicle Audio Bass Amplifier - High-Powered Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 1 ohm, LED Indicators, Sound Specialization, Red - Banda ICEX800.1RED

Description

• POWER SUPPLY: Class D vehicle audio amplifier, Total Power 14.4 @ 1 Ohm: 1100 WRMS, Total Power 14.4 @ 2 Ohms: 700 WRMS, Total Power 12.6 @ 1 Ohm: 800 WRMS, Total Power 12.6 @ 2 Ohms: 550 WRMS, Efficiency @ 2 Ohms: 82%, Efficiency @ 1 Ohm: 70%
• MONO BASS AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion (clipping), Constant - output short circuit indicator, Yellow LED: low voltage battery, Constant - Fuse blown or missing
• POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 100K Ohms, THD + Noise: less than 1%, Input Sensitivity: 125mV to 4V, Signal to Noise Ratio: 86dB
• SOUND SPECIALIZATION: This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
• OTHER TECHNICAL SPECS: Recommended Fuse: 50A, Current at Rest: 1.0A, Ave. Current Draw (Sinusoidal): 94 A, Ave. Current Draw (Music): 45 A, Power Wire Gauge: 10mm/7 AWG, Speaker Wire Gauge: 2 x 2.5mm/2 x 13 AWG, Size: 9.7'' x 8.4'' x 2.2'' -inches

BANDA ICEX800.1RED One Channel 1100 Watts Max @ 1 Ohm Car Audio Amplifier w/Bass Boost High Pass Filter and Low Pass Filter. Use 5 AWG power cables for both GND and +12Vdc. Do not use an impedance load lower than the amplifier specification. This can damage the equipment. Use wire solder for tinning the cable end for better electrical contact. Loose electrical connection can cause malfunction, heating and even fire. The GND connection must be as short as possible, using an adequate wire terminal firmly connected to a clean, paint free spot at the car chassis. If more than one amplifier is used, provide adequate individual wiring for each one. If using a power supply to power the amplifier, it must be capable of supplying between 12.6 14.4Vdc with at least the amplifier maximum current value and maximum output variation (Vripple) of 10 %.
