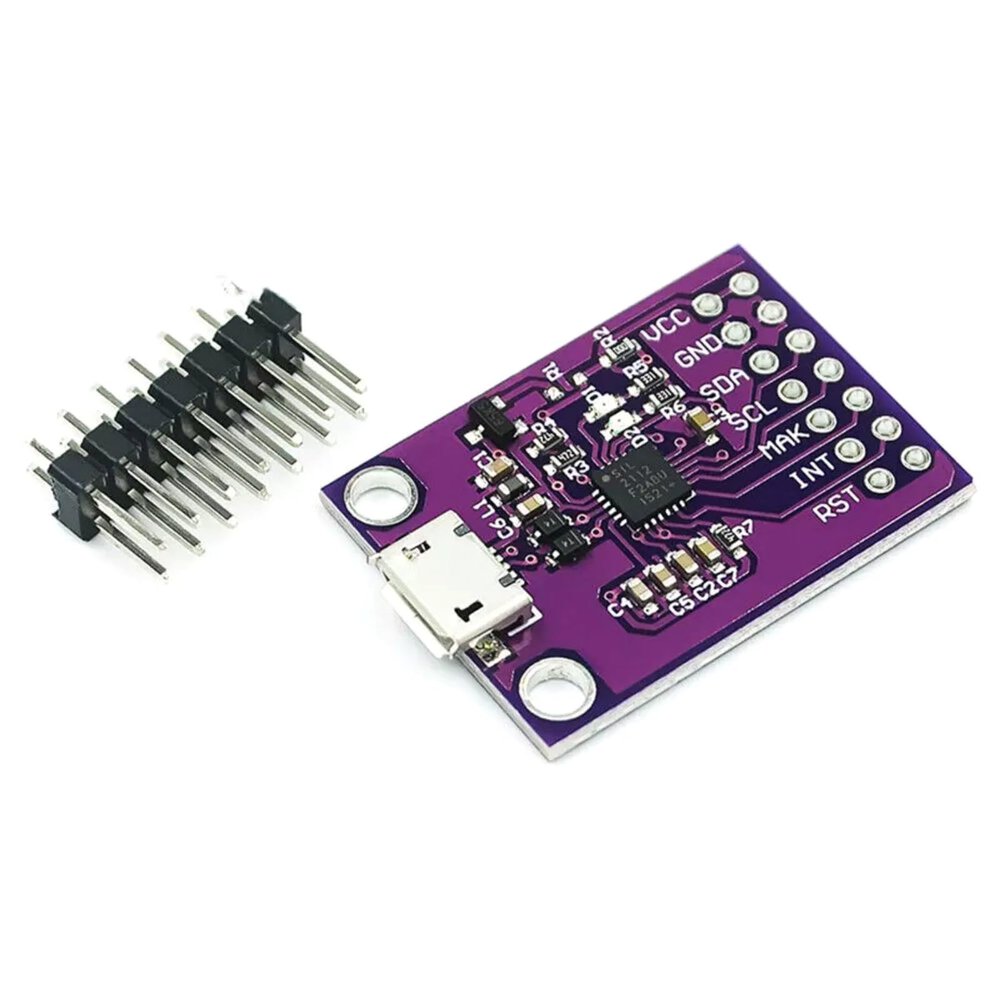

1.8V CP2112 USB to SMBus I2C Communication Module Debug Board for Portable Controller

Description

• Use Of High-Quality Materials, Durable, Compact And Easy To Carry
• CP2112 Highly Integrated USB To Smbus Bridge Controller Integrates A USB2.0, Full Speed Function Controller, USB Transceiver Oscillator And 8 Gp10 Pins
• USB Suspend Status Through Suspend And/Or Suspend Pins
• Integrated 194 Byte One-Time Programmable ROM For Storing Customizable Product Information
• Application Scope: Portable Controller, USB Dongle, Data Recording

Features:
1. Use Of High-Quality Materials, Durable, Compact And Easy To Carry
2. CP2112 Highly Integrated USB To Smbus Bridge Controller Integrates A USB2.0, Full Speed Function Controller, USB Transceiver Oscillator And 8 Gp10 Pins
3. USB Suspend Status Through Suspend And/Or Suspend Pins
4. Integrated 194 Byte One-Time Programmable ROM For Storing Customizable Product Information
5. A 512 Byte Smbus Data Buffer With A Configurable Clock Speed Device Address 7-Bit Value Is CP2112' S API From Device Address for Win, for Mac, And for Linux Hid To Smbus Library, Which Can Be Used For Fast Application Development And Open Access Interface Specification.
6. 8 Gpio Can Be Configured As Input/Output And Open Drain/Push-Pull Output, Clock Output Can Be Configured For External Devices From 48mhz To 94khz, And LED Can Be Switched During Read/Write Smbus
7. Application Scope: Portable Controller, USB Dongle, Data Recording

Specifications:
USB Bus Power: 4.0 To 5.25V
Self-Power: 3.0 To 3.6V
Input/Output Voltage: 1.8V To VDD
Operating Ambient Temperature: -40C To 85C
On-Chip Plus Point Reset Circuit, On-Chip Voltage Regulator: 3.45V Output
Compliant With USB Specification 2.0 Standard: Full Speed (12mbps)

Package Includes:
1* CP2112 USB To Smbus Bridge Controller
