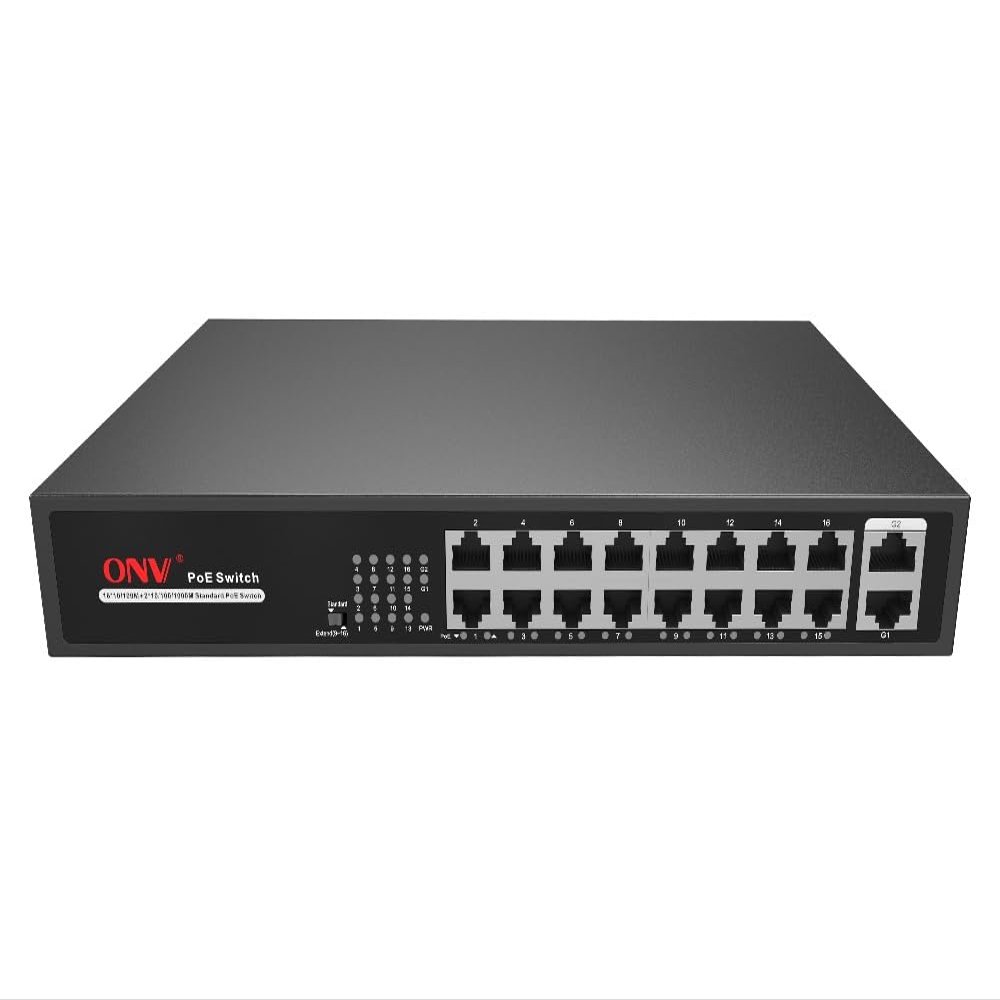

18-Port Gigabit Uplink PoE Switch 16*10/100Mbps 2*10/100/1000M Uplink RJ45 Ports Support IEEE802.3af/at PoE Standard Smart PoE Switch

Description

• Innovative FunctionThe smart 18port POE switch has 10/100M access, Gigabit uplink. This POE switch can support non-blocking wire-speed forwarding. Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. Provides 16*10/100M PoE ports and 2*10/100/1000M RJ45 ports for flexible networking and meets the networking requirements of various scenarios.
• 18Port POE + SwitchThe smart switch has 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-16 can support IEEE802.3af/at PoE standard.Single-port PoE power up to 30W and the maximum POE output power less than 250W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.
• Smart PoE Power SupplyThe smart 18port POE switch comply with IEEE 802.3af/at PoE standard, without damaging non-PoE devices. 16*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios. Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
• Stable & ReliableThe smart POE switch can plug and play, no configuration, simple and convenient. Low power consumption, galvanized steel casing, no fan. The user-friendly panel can show the device status through the LED indicator of PWR, Link,PoE. Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
• Widely UsedThe PoE switch is rigorously tested for reliability, quality, and performance. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone,video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy efficient network.

Model: ONV-H1016PL
Interface Characteristics
Fixed Port:
2*10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port:
Port 1-16/Port 1-24 support 10/100Base-TX and port 17-18/ 25-26 support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing
Functional Switch:
When functional switch opening, Port 9-16/17-24 can support 10M/250m long distance transmission.
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(250 meters)
100BASE-TX: Cat5 or later UTP(100 meters)
1000BASE-T: Cat5e or later UTP(100 meters)
Chip Parameter
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity: 14.8Gbps (Non-blocking)
Forwarding: 5.36Mpps
Rate@64byte
MAC: 16K
Buffer Memory: 4M
Jumbo Frame: 9.6K
LED Indicator: Power: PWR (Green), Network: Link(Green), PoE: PoE (Green)
PoE & Power Supply
PoE Port: Port 1 to 16
Power Supply Pin: 1/2(+) 3/6(-) 2-pairs power supply
Max Power Per Port: 30W, IEEE802.3af/at
Total PWR / Input Voltage: 250W (AC100-240V)
Power Consumption: Standby<15W, Full load <240W
Power Supply: Built-in power supply, AC100~240V 50-60Hz 5.0A
