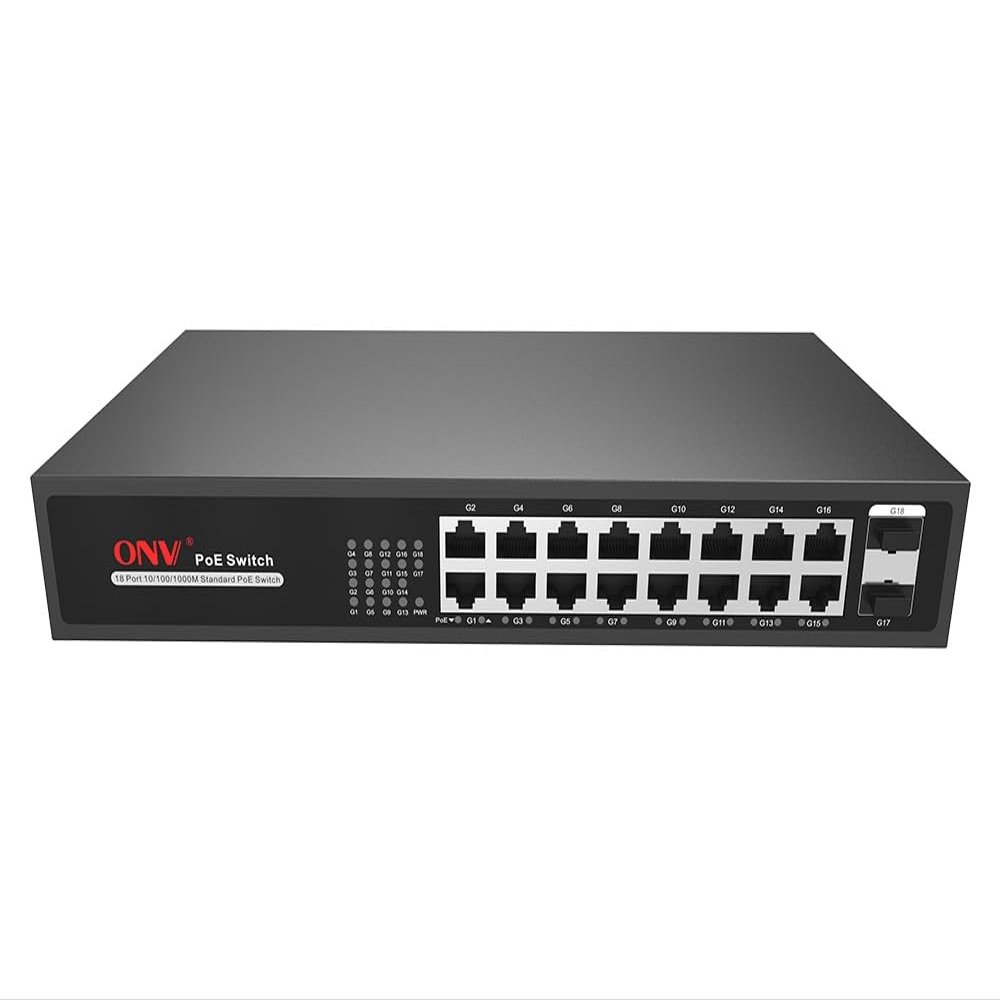

18-Port Full Gigabit PoE Switch,16*10/100/1000M Adaptive RJ45 Ports, 2*1000M Uplink SFP Ports,IEEE 802.3 af/at PoE Standard Unmanaged PoE Switch

Description

• 18Port POE SwitchUnmanaged PoE switch has 16*10/100/1000M adaptive RJ45 ports and 2*1000M uplink SFP ports. Port 1-16 can support IEEE 802.3 af/at PoE standard. Single port PoE power is up to 30W, and the max POE output power is 250W.As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable.
• Full Gigabit PortThe smart 18port POE switch support IEEE 802.3x full-duplex flow control and Backpressure. Support non-blocking wire-speed forwarding for smoother transmission.Support the combination of RJ45 ports and Gigabit SFP ports to facilitate flexible networking and meet the networking requirements of various scenarios.
• Smart PoE Power SupplyThe smart 18port POE switch has comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.16*10/100/1000Base-T RJ45 ports support PoE power, meeting the PoE power requirements of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
• Stable & ReliableThe smart POE switch has user-friendly panel can show the device status through the LED indicator of PWR, Link,PoE.Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.Low power consumption, with fan, galvanized steel casing, excellent heat dissipation to ensure the stable operation of the switch.
• Widely UsedThe PoE switch is rigorously tested for reliability, quality, and performance. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP phone,video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply.It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy-efficient network. Unmanaged model,plug and play, no configuration, easy to use.

Model:ONV-H3016PF
Interface Characteristics
Fixed Port:
16*10/100/1000Base-T PoE ports (Data/Power)
2*1000Base-X uplink SFP ports (Data)
Ethernet Port:
Port 1-16/ 1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission:
10BASE-T: Cat3, 4, 5 UTP(100 meters)
100BASE-TX: Cat5 or later UTP(100 meters)
1000BASE-T: Cat5e or later UTP(100 meters)
SFP Slot Port:
Gigabit SFP optical fiber interface, default not matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance:
Multi-mode: 850nm / 0-550M, Single-mode: 1310nm / 0-40KM, 1550nm/ 0-120KM.
Chip Parameter
Network Protocol:
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode: Store and Forward (Full Wire Speed)
Switching Capacity: 52Gbps (Non-blocking)
Forwarding: 26.78Mpps
Rate@64byte
MAC: 8K
Buffer Memory: 4M
Jumbo Frame: 10K
LED Indicator: Power: PWR (Green), Network: Link (Green)
PoE: PoE (Green), Fiber: G1/G2(Green), POE: PoE(Green)
PoE & Power Supply
PoE Port: Port 1 to 16 IEEE 802.3 af/at
Power Supply Pin: 1/2 (+) 3/6 (-)
Max Power Per Port: 30W, IEEE 802.3 af/at
Total PWR / Input Voltage: 250W /(AC100-240V)
Power Consumption: Standby<15W, Full Load<240W
Power Supply: Built-in power supply, AC100~240V 50-60Hz 4.1A
