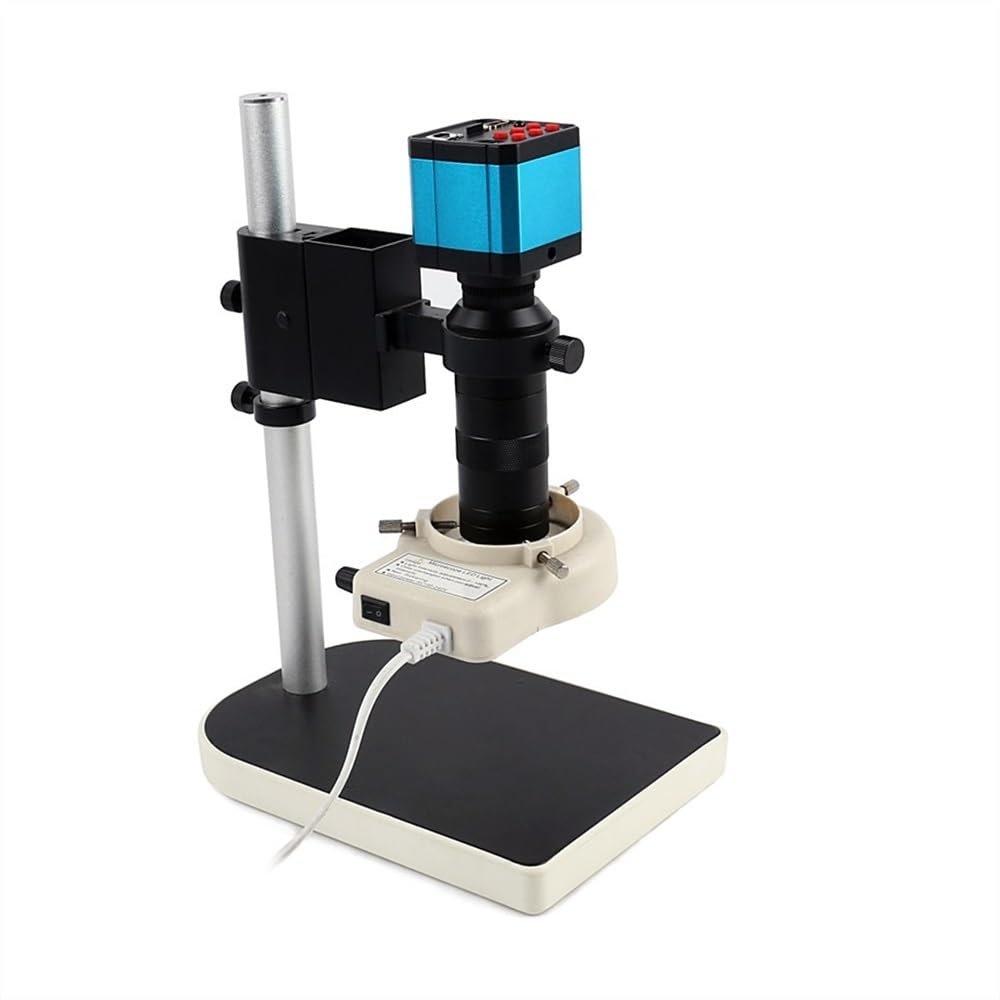

18MP USB HDMI Industrial Video Microscope Camera Set PCB Soldering Phone Repair PCB Inspection,100X Electronic PCB IC Repair Soldering USB Digital Video Microscope Camera

Description

• HDMI lndustrial Camera. Sensor size:1/2.3". Effective pixel:18M. Frame frate:1920*1080@60FPS. Pixel size:1.43*1.43m.
• Zoom c-mount Lens: Magnification Power by 0.12 - 2X (about 8X - 100X on the display). Work distance: 100mm. Visual field :2.4mm-32mm. Size: 115mm(L) * 40mm(DIA).
• 56 LED Adjustable Compact Microscope Ring Light: Provides intense and focused shadow-free illumination.56 bright white LED bulbs. Lighting direction changeable. Variable intensity control. Intense and focused shadow-free illumination. Inside diameter of the ring light: 1.0" (27mm) Overall outside diameter: 1.77" (45mm). Working Distance: 27mm-45mm.

Specification
Series:HDMI lndustrial Camera
Sensor size:1/2.3"
Effective pixel:18M
Frame frate:1920*1080@60FPS
Output:USB, HDMI, TF card, remote control
Pixel size:1.43*1.43m
Power:DC-12V/1A
Features:Basic function Brightness, contrast, saturation, white balance,black and white switching, date adjustment
Image adjustment:Exposure, Flicker restrain, Acutance,Gamma, Cb/ Crgain adjustment
Camera function Digital zoom, Horizontal/
vertical mirror, image freeze
Storage:Image capture,video, image preview, SD card formatting
Reticle:4 sets of reticle, can define the
color, line, displacement, and hidden
Crosshair:Can adjust color, line size, hide or display
Supported languages: Chinese, English, Spanish, German, Portuguese, French, Russian, Italian
Package Size :58.00*54.30*68.00mm
Weight:0.25kg
Accessory:DC-12V Power adapter, Remote control
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8X - 100X on the display)
Work distance: 100mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g

56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
56 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm

Package incluede:
1 x Microscope Camera
1 x Power Adapter
1 x remoter
1 x Usb Lines
1 x HDMI Lines
1 x 100X Zoom C-mount Lens
1 x 56 LED Ring Light
1 x Stand
