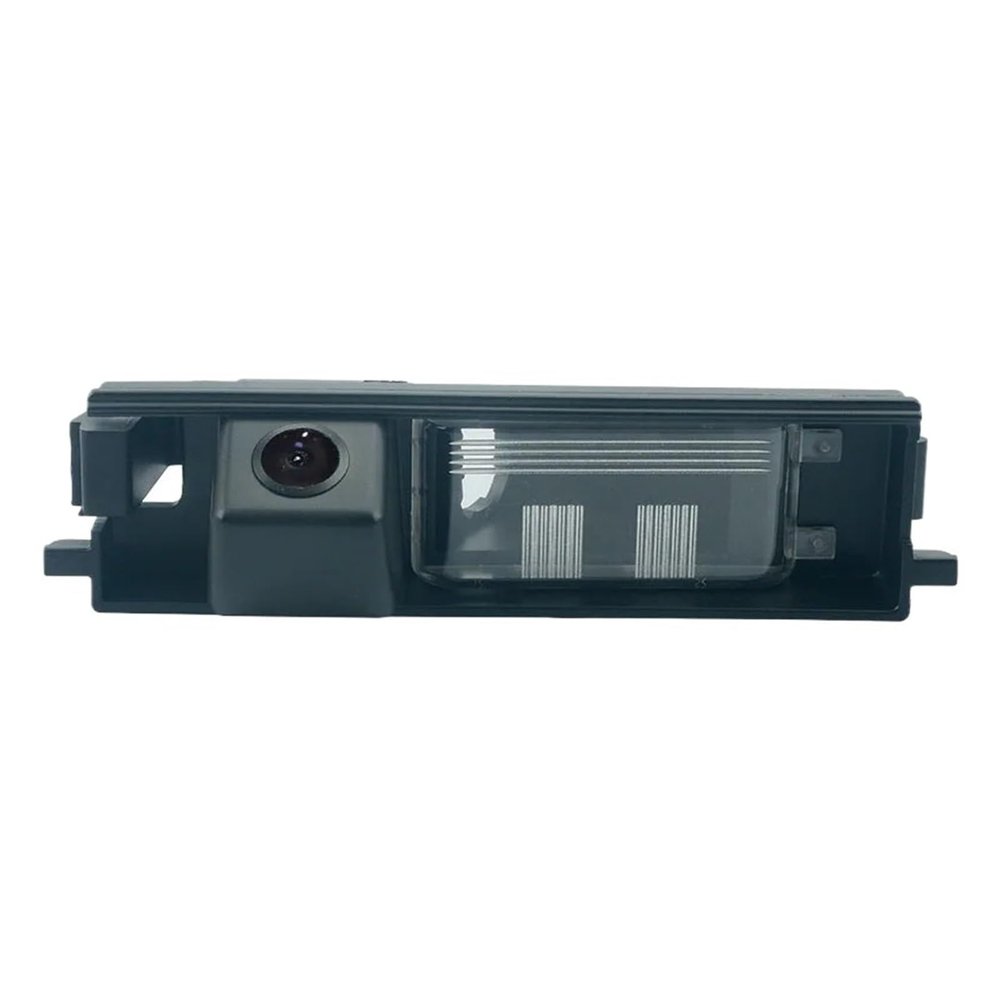

170 Degree AHD 1920x1080P Vehicle Rear View Camera Compatible with Toyota RAV4 RAV-4 2006 2007 2008 2009 2010 2011 2012 Car(CVBS-140)

Description

• Wide dynamic range, effectively handling complex environments with strong direct light and coexisting shadows.
• No delay real-time transmission, using high-speed signal processing technology, image transmission is synchronized with the actual scene.
• Multi-angle adjustable stand, the camera stand supports horizontal and vertical multi-angle adjustment, easily finding the best shooting angle.
• Automatic white balance, intelligently adapting to different light environments. Daylight, artificial light, cloudy days, automatically adjust the picture color temperature to maintain natural colors.
• Dynamic trajectory auxiliary lines, based on the rotation angle of the steering wheel, real-time generate reversing trajectory, even beginners can easily park.

170 Degree AHD 1920x1080P Vehicle Rear View Camera Compatible with Toyota RAV4 RAV-4 2006 2007 2008 2009 2010 2011 2012 Car
Refer:
HD Reverse Parking Rear View Camera Compatible with Toyota Rav4 4WD 2001-2012 (with spare wheel Compatible with Carrier on the back door )
5 Cameras chip lens Style Optional
140/170/175 Wide View Angle
AHD Camera, Analog High Definition Technologie
Top starlight night vision
Support Video Signal Control and Parking Line Switch
(The"CVBS-140" not have Signal Switch Function)
Please check whether the Android unit supports AHD1080P camera or not ?
If AHD1080P cannot be selected, AHD1080P cameras are not supported!Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P
Tips, About AHD1080P Style:
Cameras with CVBS video signal is universal Compatible with all monitors, but AHD will only work with AHD monitor!
"GAHD" option,its view angle will up to 175 degree or more.
such as camera bracket, car accessories, it will also form an image on the screen, so the corner may appear black iamge. Show As follow:
Integrated Step-down Module
Support DC12V~24V,Low power consumption, cable never hot.
Waterproof
The camera is filled with waterproof silicone, Effective chip protection,IP68-Rated Compatible with Use in Extreme Conditions
Product Specificate
Installation Diagram
Package
1. Rear view camera
2. Retail box
3. Power cable
4. Pure copper 6m video cable
5. User manual
FAQ:
How to choose a Rear view camera that can be suitable Compatible with my car model?
A) According to the main car model, search in the shop, there will be several type of cameras, and then buy according to your actual original license plate/ handle.
B) Or you can measure your size and consult customer service to confirm the camera model.
Tip: because there may be slight differences between cars produced in different countries, please check the size before buying.
After connecting the Rear view camera, the screen shows no signal, black screen and no picture, what should I do?
A) Please check your connection, red trigger line should connect to your brake light DC 12V+ and monitor video cable in .
B) Please check your signal format, choose right signal to run the camera.
C) If your monitor has AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance on the TV. Universal cameras with 4Pin plugs can only be installed with our cables. You can consult customer service if you encounter any problems during the installation process.
After connecting the Rear view camera, the screen shows black and white, what should I do if there is no color?
A) Choose wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.
B) Please check whether the 6M line is normal, please replace with another 6M cable to test the camera.
What functions do the white cable of the Front view camera control?
A) White cable: video signal control
"GAC-170" Camera:
( AHD )+( 1280x720 )+( 170 )
Cut the White cable(reconnect the camera power)(CVBS )+( 11280x720P )+( 170 )
"GAHD" camera:
( AHD1080P )+( 1920x1080 )+( 175 )
Cut the White cable (reconnect the camera power)(CVBS )+( 1280x720 )+( 125 )
Guiding Line : Yes
Lens Material : Glass
Length of Video Cable : 6M
Shell Material : Plastic
Wire or Wireless : Wire
Alarm Type : Vehicle Backup Cameras,Rear Side
Origin : Mainland China
Viewing Angle : 175
Material : ABS
TV system : AHD 1080P or 720P CVBS Option
image senser : mccd Full hd
Waterproof level : IP68
View angle : 170 degrees / 140 degree Options
Length of Video Cable : 6m
Alarm Type : Rear Back
Guiding Line : NO
Rear View Camera Compatible with Toyota RAV4 RAV-4 Mk3 2012 2011 2010 2009 2008 2007 2006
Backup Camera Compatible with Toyota RAV4 RAV-4 Mk3 2012 2011 2010 2009 2008 2007 2006
Reversing Camera Compatible with Toyota RAV4 RAV-4
Model : Compatible with RAV4
