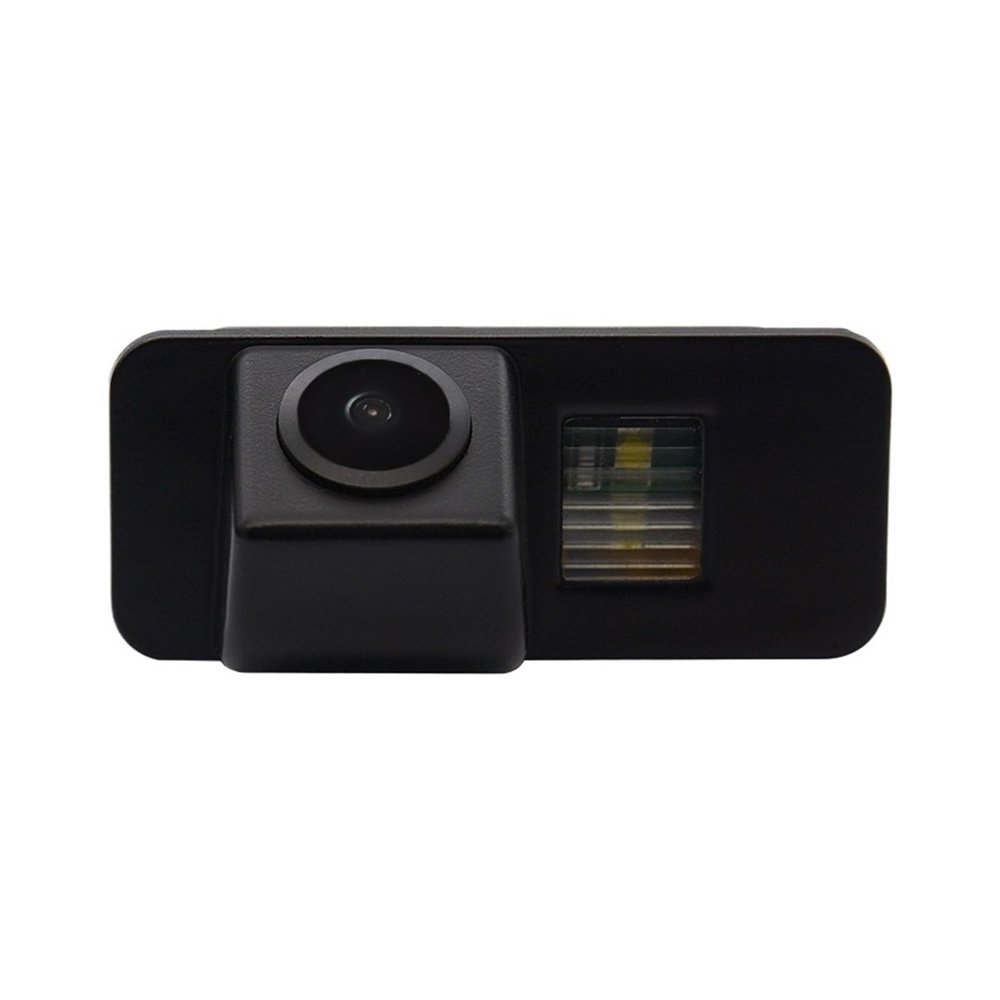

170 Degree AHD 1920x1080P Vehicle Rear View Camera Compatible with Mondeo MK4 MK5 Focus 2 C-Max Compatible with Galaxy Kuga S-Max Fiesta Car(CVBS-140)

Description

• No delay real-time transmission, using high-speed signal processing technology, image transmission is synchronized with the actual scene.
• Ultra-high definition resolution, presenting detailed and clear pictures, details such as license plates and road edges are clearly visible, saying goodbye to blurriness and distortion.
• Plug and play, no need for complex debugging, after wiring is completed, it can be used normally, greatly reducing the installation threshold.
• Dynamic trajectory auxiliary lines, generating reverse parking trajectories in real time according to the steering wheel rotation angle, even beginners can easily park.
• Multiple mode display switching, can be switched between full screen and other modes, convenient for simultaneous display with navigation, multimedia and other functions.

170 Degree AHD 1920x1080P Vehicle Rear View Camera Compatible with Mondeo MK4 MK5 Focus 2 C-Max Compatible with Galaxy Kuga S-Max Fiesta Car
Refer:
HD Reverse Parking Rear View CameraFor
Compatible with Explorer U502 2010~2015
Compatible with S-Max MK1 2006~2014
Compatible with Galaxy MK3 2006~2014
Compatible with Fiesta MK6 2009~2015
Compatible with Fusion sedan 2013~2016
Compatible with Focus 2 hatchback 2008~2011
Compatible with EcoSport MK1 MK2 2004~2015
Compatible with Mondeo MK4 MK5 2007~2017
Compatible with C-Max Grand C-Max MK2 2011~2019
Compatible with Mondeo BA7 S-Max 2006~2010
Compatible with Focus C307 Fiesta Kuga 2008~2014
Compatible with EcoSport MK1 2004~2012
Compatible with EcoSport MK2 2013~2018
Compatible with Jaguar F-Type 2013~2015
Compatible with Jaguar XF X250 2013 2014
Compatible with Jaguar XK XJ 2012~2014
5 Cameras chip lens Style Optional
140/170/175 Wide View Angle
AHD Camera, Analog High Definition Technologie
Top starlight night vision
Support Video Signal Control and Parking Line Switch
(The"CVBS-140" not have Signal Switch Function)
Please check whether the Android unit supports AHD1080P camera or not ?
If AHD1080P cannot be selected, AHD1080P cameras are not supported!Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P
Tips, About AHD1080P Style:
Cameras with CVBS video signal is universal Compatible with all monitors, but AHD will only work with AHD monitor!
"GAHD" option,its view angle will up to 175 degree or more.
such as camera bracket, car accessories, it will also form an image on the screen, so the corner may appear black iamge. Show As follow:
Integrated Step-down Module
Support DC12V~24V,Low power consumption, cable never hot.
Waterproof
The camera is filled with waterproof silicone, Effective chip protection,IP68-Rated Compatible with Use in Extreme Conditions
Product Specificate
Installation Diagram
Package
1. Rear view camera
2. Retail box
3. Power cable
4. Pure copper 6m video cable
5. User manual
What functions do the white cable of the Front view camera control?
A) White cable: video signal control
"GAC-170" Camera:
( AHD )+( 1280x720 )+( 170 )
Cut the White cable(reconnect the camera power)(CVBS )+( 11280x720P )+( 170 )
"GAHD" camera:
( AHD1080P )+( 1920x1080 )+( 175 )
Cut the White cable (reconnect the camera power)(CVBS )+( 1280x720 )+( 125 )
Guiding Line : Yes
Lens Material : Glass
Length of Video Cable : 6M
Shell Material : Plastic
Wire or Wireless : Wire
Alarm Type : Vehicle Backup Cameras,Rear Side
Origin : Mainland China
Viewing Angle : 175
Material : ABS
TV system : AHD 1080P or 720P CVBS Option
image senser : mccd Full hd
Waterproof level : IP68
View angle : 170 degrees / 140 degree Options
Length of Video Cable : 6m
Alarm Type : Rear Back
Guiding Line : NO
Rear View Camera Compatible with S-Max MK1 2006-2014
Backup Camera Compatible with C-Max Grand C-Max MK2 2011-2019
Reversing Camera Compatible with Mondeo MK4 MK5 2007-2017
Rear Camera Compatible with Focus 2 hatchback 2008-2011
Rear Reversing Camera : Compatible with Galaxy MK3 2006-2014
Rear Fiesta MK6 Camera : Fiesta MK6 2009-2015
Model : Compatible with Mondeo HKM-0598
