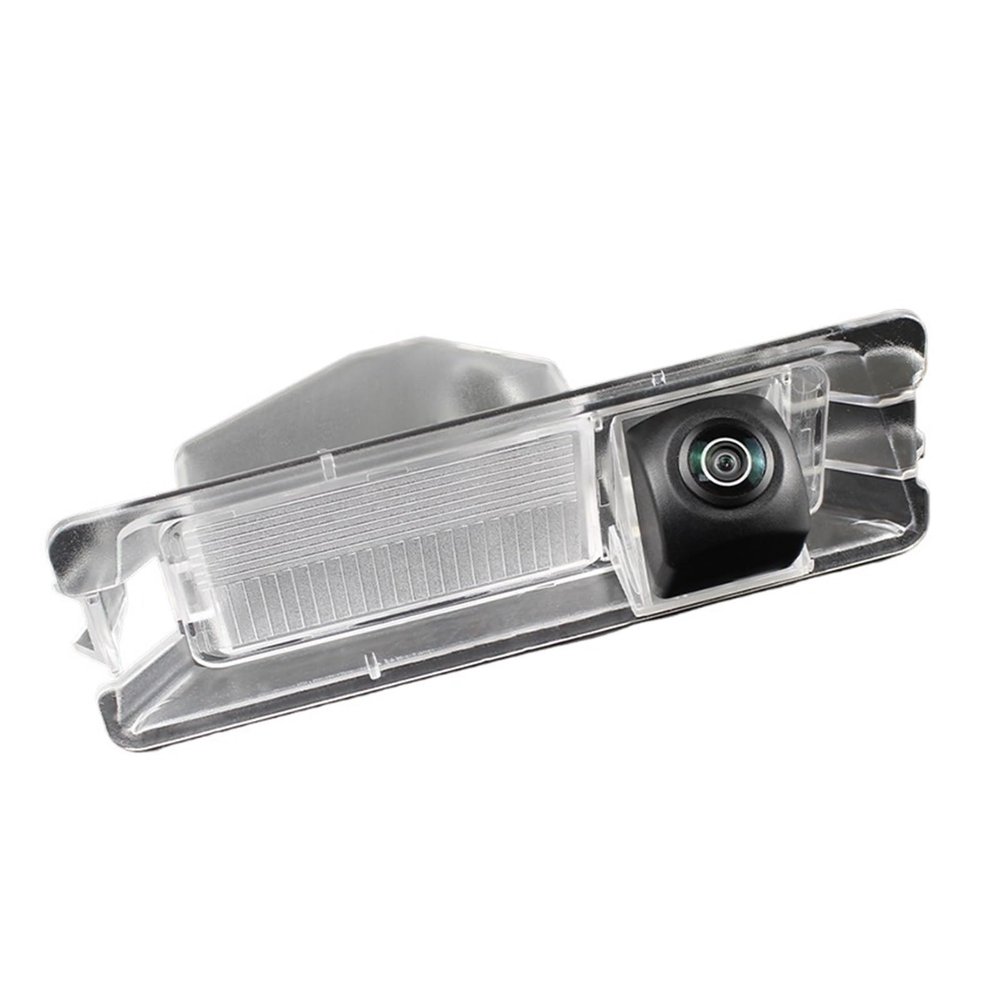

170 Degree AHD 1920x1080P Special Vehicle Rear View Camera Compatible with Nissan March Renault Logan Compatible with Renault Sandero W Car(A-680x480-120deg)

Description

• Reverse parking priority function: When in reverse gear, the reverse image is displayed immediately, with a quick response.
• Obstacle distance scale: Quantifies the safe reverse parking range.
• Wide viewing angle eliminates rear blind zone, reducing the risk of scratches.
• High resolution presents a detailed image, ensuring clear visual perception during parking.
• Wide-angle distortion correction, without distortion at the edges of the picture.

5 Cameras Optional:
Tips, About E options:
Please check whether the Android unit supports AHD1080P camera!
If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P
Cameras with CVBS video signal is universal Compatible with all monitors, but AHD will only work with AHD monitor!
How to check whether the Android unit supports AHD camera?
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD
Tip: because there may be slight differences between cars produced in different countries, please check the size before buying:
170 View Angle (Option D, E)
Real 170 wide viewing angle. the display looks like fisheye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.
1280*720P Top Starlight Night Vision (Option D, E )
Low-light Level Night Vision, 15m visible distance Compatible with night. Exclusive military low-light camera, the industry's most cost-effective camera, excellent night vision effect, less interference, special shielding, the best quality camera!
2020 AHD Camera, Analog High Definition Technology (Option D,E)
AHD1080P / AHD720P Optional
If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Clearer and advanced bright color separation, signal filtering, 3D reduction technology, higher image clarity and better image reproduction.
zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
Highly integrated AHD front-end chip, high-definition quality products.
Support video signal control AHD/CVBS (Option D, E)
Through signal control, it can support CVBS and AHD displays.
D camera
( CVBS )+( 1280x720 )+( 170 )
Cut the white cable( AHD )+( 1280x720 )+( 170 )
E camera
( AHD1080P )+( 1920x1080 )+( 175 )
Cut the white cable( CVBS )+( 1280x720 )+( 125 )
Support parking reference line switch on/off (Option A, B, D, E)
Some monitors come with a parking reference line that coincides with the camera's reference line and interferes with the line of sight.
Support Intelligent Dynamic Trajectory (Option C)
Not need CANBUS or OBD interfaces, camera built-in reversing Tracks module, just connect the power.
Not support steering wheel control.
Adjust the track automatically according to the moving position and speed of car body and angle, help you make parking easier.
155 wide viewing angle.
Support Waterproof
Display effect
Installation Diagram
Tip: If your monitor is android stereo radio, you need to connect the 6M cable's red trigger wire "A" and "B":
"A" connect reverse lights power DC 12V+.
"B" connect to radio trigger wire.
==========
Guiding Line : Yes
Lens Material : Glass
Length of Video Cable : 6M
Shell Material : Plastic
Wire or Wireless : Wire
Alarm Type : Rear Side,ACCESSORIES,Vehicle Backup Cameras
Origin : Mainland China
Viewing Angle : 170
Material : ABS
Pixels : 1080P Optional
View Angle : 170 degree Optional
Night Vision : Top Starlight Night Vision
Waterproof : Support
Power : DC 12V
White Balance : Auto
TV System : NTSC or PAL
Model : FA8066
