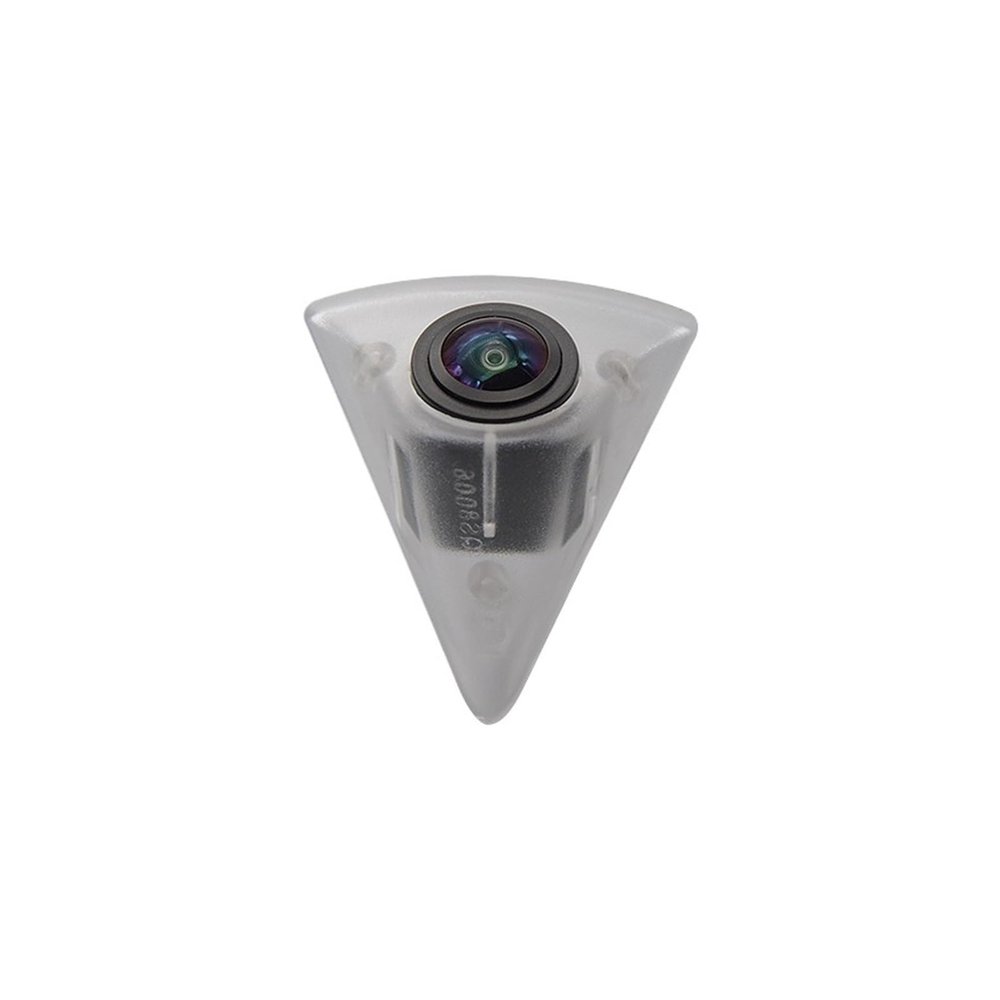

170 AHD 1080P Auto Front View Logo Camera Compatible with VW Passat CC B7 2010 2011 2012-2015 Night Vision HD CCD(GAHD)

Description

• Wide dynamic range, effectively handling complex environments with strong direct light and coexisting shadows.
• No delay real-time transmission, using high-speed signal processing technology, image transmission is synchronized with the actual scene.
• Multi-angle adjustable stand, the camera stand supports horizontal and vertical multi-angle adjustment, easily finding the best shooting angle.
• Automatic white balance, intelligently adapting to different light environments. Daylight, artificial light, cloudy days, automatically adjust the picture color temperature to maintain natural colors.
• Dynamic trajectory auxiliary lines, based on the rotation angle of the steering wheel, real-time generate reversing trajectory, even beginners can easily park.

170 AHD 1080P Auto Front View LOGO Camera Compatible with VW PASSAT CC B7 2010 2011 2012- 2015 Night Vision HD CCD
Refer:
HD Parking Forward Positive Grille Front View Camera Compatible with AHD 1080P Auto Front View Camera Compatible with VW PASSAT CC B7 2010-2012 2013 2014 2015 Android Multimedia player
Please check and confirm your site position before to buy according to the product description
Top Starlight Night Vision,Integrated Step-down Module,fisheye Lens Wide Angle
Support DC12V~24V,Low power consumption, cable never hot.
4 Cameras chip lens Style Optional
140/170/175 Wide View Angle
Tips, About AHD1080P Style:
Cameras with CVBS video signal is universal Compatible with all monitors, but AHD will only work with AHD monitor!"GAHD" option,its view angle will up to 175 degree or more.arround camera lens such as camera bracket, car accessories, it will also form an image on the screen , so the corner may appear black iamge. Show As follow:
AHD Camera, Analog High Definition Technologie
Camera Setting:
Please check whether the Android unit supports AHD1080P camera or not ?Support Video Signal Control Switch cut white wire then restart camera power ,The"CVBS-140" and "CVBS-170" not have Signal Switch Function,If AHD1080P cannot be selected,AHD1080P cameras are not supported!Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P
Waterproof
The camera is filled with waterproof silicone, Effective chip protection,IP68-Rated Compatible with Use in Extreme ConditionsProduct Specificate
Installation Diagram
Package
1. Front view camera
2. Retail box
3. Power cable
4. Pure copper 6m video cable
5. User manual
After connecting the Front view camera, the screen shows black and white, what should I do if there is no color?
A) Choose wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.
B) Please check whether the 6M line is normal, please replace with another 6M cable to test the camera.
What functions do the white cable of the Front view camera control?
A) White cable: video signal control
"GAC-170" Camera:
( AHD )+( 1280x720 )+( 170 )
Cut the White cable(reconnect the camera power)(CVBS )+( 11280x720P )+( 170 )
"GAHD" camera:
( AHD1080P )+( 1920x1080 )+( 175 )
Cut the White cable (reconnect the camera power)(CVBS )+( 1280x720 )+( 125 )
Guiding Line : No
Lens Material : Glass
Length of Video Cable : 6M
Shell Material : Plastic
Wire or Wireless : Wire
Alarm Type : Front,Front Side
Origin : Mainland China
Material : ABS
TV system : AHD 1080P or 720P CVBS Option
image senser : mccd Full hd
Waterproof level : IP68
View angle : 170 degrees / 140 degree Options
Length of Video Cable : 6m
Alarm Type : Front View
Guiding Line : NO
Parking Forward Camera Compatible with VW PASSAT CC B7 2010-2012 2013 2014 2015
Front View Camera Compatible with VW PASSAT CC B7 2010-2012 2013 2014 2015
Positive Grille Car Camera Compatible with VW PASSAT CC B7 2010-2012 2013 2014 2015
Model : Compatible with VW QS8008
