16-Port Gigabit Network Switch with 4 SFP Slot, L2+ Managed PoE Ethernet Switch, Support IEEE802.3af/at, Ring Network, VLAN, STP/RSTP, Plug and Play, Din Rail Installation

Description

• 20 ports 1000Mbps transmissionThe network switch has 16 10/100/1000Base-T RJ45 and 4 1000Base-X SFP, providing high speed connectivity for your network devices.
• L2 Smart Web ManagementThe managed switch supports 2 layers smart Web management, can be done on a LAN and achieve telnet management.
• IEEE802.3af/at PoE standardThe PoE switch provides 16-port PoE+(30W) function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable.
• DIP Switch & USB-C ConnectivityThe DIP Switch supports one-key VLAN, one-key Ring Management and so on. And you can connect USB-C port for easy management.
• Multiple applicationThe switch equipped with IP40 Al case, and its compact size and plug-and-play design also make it easy to adapted in multi-scenes.

Overview:

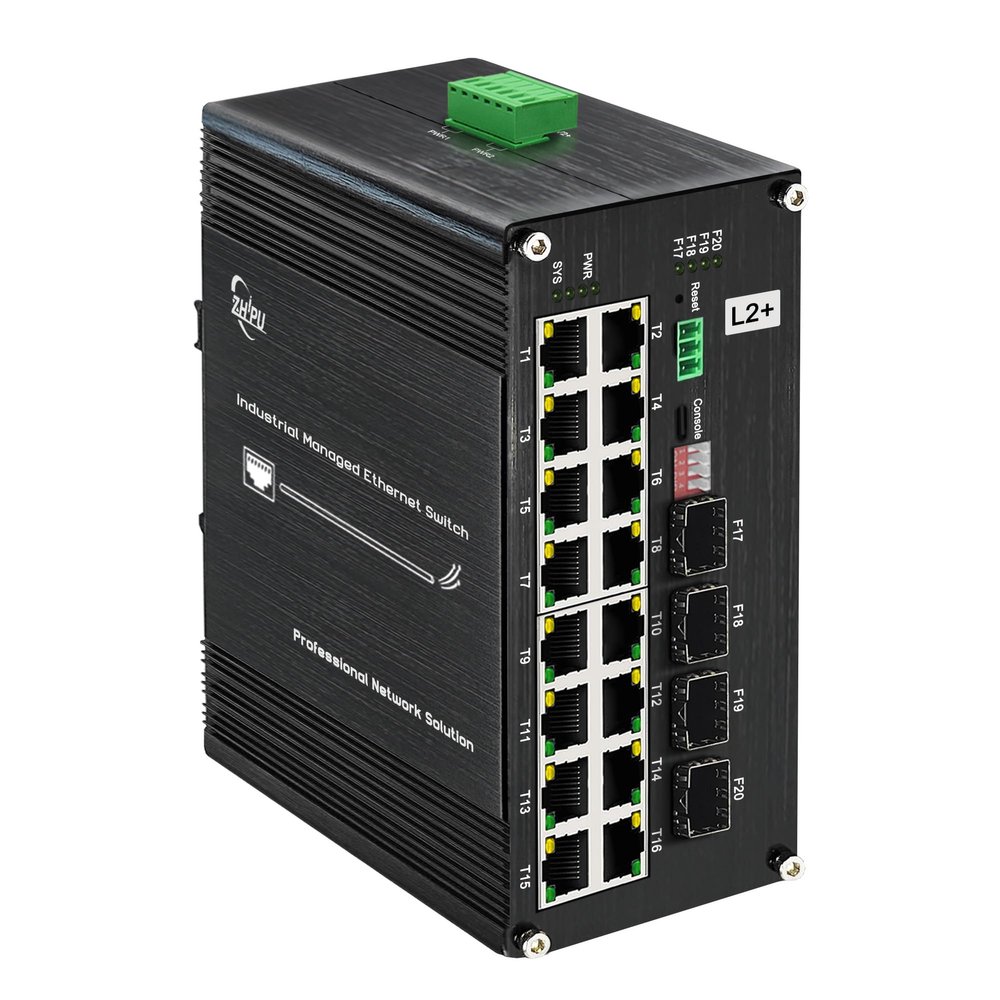

It is the L2+ managed 16-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 16 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Features:
1. Support 16x10/100/1000Base-T + 4x1000Base-X SFP +
2. 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
3. IEEE802.3af/at compliant
4. DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
5. Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
6. 10K Bytes Jumbo Frame
7. IEEE 802.3az Energy Efficient Ethernet (EEE)
8. 48-57VDC Redundant Power Input
9. Industry standard design, dust-proof and close design IP40 Aluminum Case
10. Supports DIN-Rail installation
11. Environmentally hardened -40C to 80C (-40F to 176F) operating temperature

Specification:
1. Connector: 16 x RJ45
2. Optical Port: 4 x 1000Base-X SFP
3. Packet Buffer: 12M bits
4. Packet Length: 9K bytes
5. MAC Address Table: 10K
6. Processing Type: Store-and-Forward
7. Backplane bandwidth: 40 Gbps
8. Forward & Filtering Rate: 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)
9. Input Power: 48~57VDC, 6-pin terminal block
10. PoE Standard: IEEE802.3af/at
11. PoE Budget: Up to 480-watt PoE budget
12. Power Consumption: 15W Max.(PoE in Use<240W)
13. Power PIN Assignment: 1/2/4/5(+), 3/6/7/8(-)
14. Certification: CE, FCC, RoHS
15. Mounting Options: DIN-Rail
16. Casing: Aluminum Case
17. Operating Temperature: -40C to 80C (-40F to 176F)
18. Storage Temperature: -40C to 85C (-40F to 185F)
19. Dimensions (WxDxH): 155 x 115 x 85 mm
20. Weight: 1.2kg

Packages:
1* 20-port Manged PoE Ethernet switch
1* 6-pin terminal block
1* USB line
1* User Manual
