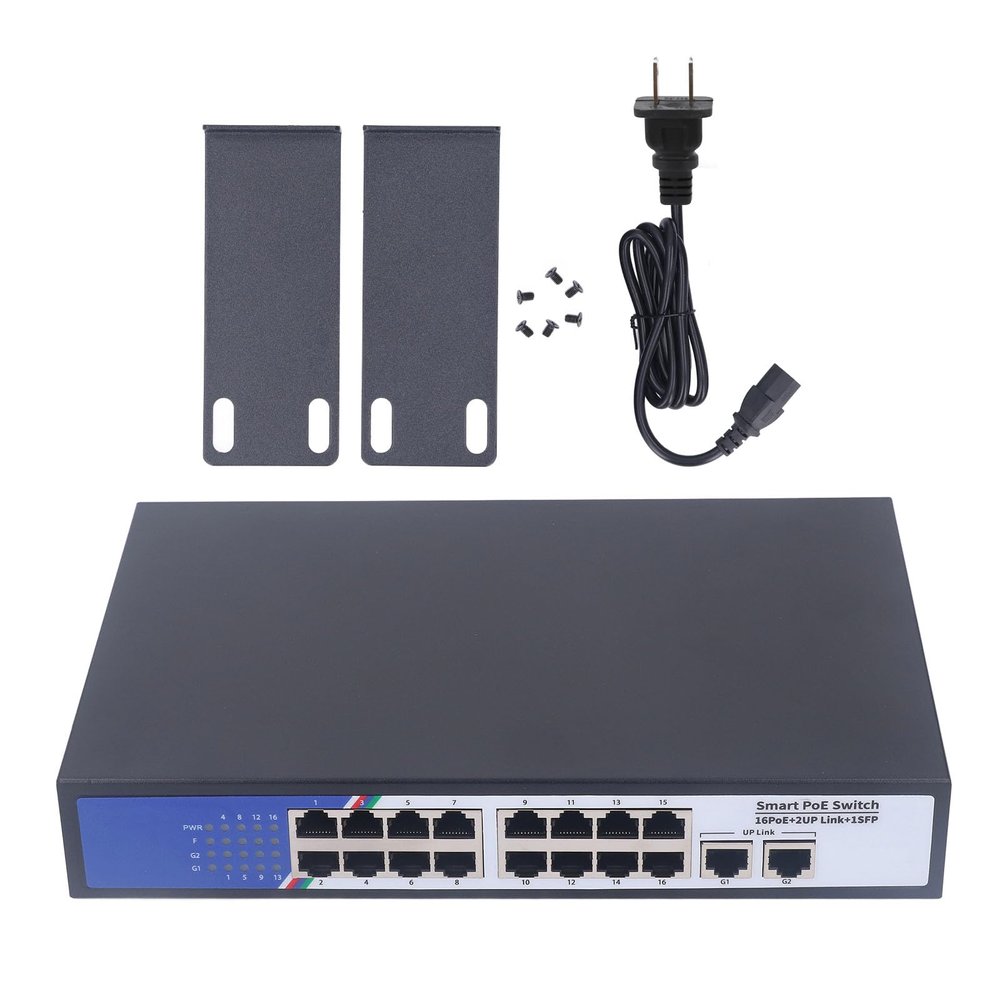

16 Port Ethernet Switch with High Switching Capacity Enhanced Protections Plug and Play Versatile Networking Solution Office Ethernet Splitter (US Plug 100240V)

Description

• [Versatile Networking Solution] This Ethernet switch provides 16 x 10 100M ports and 2 x 10 100 1000M ports, allowing users to flexibly configure their network to meet various networking requirements.
• [Plug and Play] This switch is plug and play, requiring no configuration. Simply connect the power cord and Ethernet cables to your devices, and you can easily start using it without any hassle.
• [Enhanced ] This network switch offers 4KV and supports short circuit and overload for , also provides temperature and overvoltage for the power supply, ensuring and
• [High Switching Capacity] With a switching capacity of 7.2Gbps, this Ethernet network switch provides fast and efficient data transfer, allowing for seamless communication across your network.
• [Wide Applications] Suitable for use in homes, dormitories, hotels, offices, and more, this switch is compatible with various devices such as computers, printers, network cameras, and more.

Specification:
Item Type: Ethernet Switch
Material: ABS
Model: ZX G16F02GN
Voltage: 100-240V
Standard Protocol: IEEE 802.3af at 16 x 10 100M PoE + 2 x 10 100 1000M Uplink
Chip Solution: RTL8367S + RTL8324E
Standards Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network Medium:
10BASE T: Unshielded Cat3, Cat4, Cat5 twisted pair (maximum 100m)
100BASE TX 100BASE T: Over unshielded Cat5, Cat5e twisted pair (maximum 100m)
1000BASE TX 1000BASE T: Over Cat6e twisted pair (maximum 100m)
Fixed Port: 16 x 10 100 Base TX Ethernet Port (Data/Power), 2 x 10 100 1000 Base T Ethernet Port (Data)
Forwarding Mode: Store and forward
Media Access Control Address Table: 4K
Switching Capacity: 7.2Gbps
Packet Forwarding Rate: 5.36Mpps
Port Lightnings Protections: 4KV
Indicator Light:
Each Unit:
Power System (Power: Green light) is connected to the load, the indicator light status is always on
Each Port:
Link Activity (Link Act: Green light) is connected to the load, the indicator light status is flashing
POE Power Supply: 1-16 ports compatible with 802.3af at PoE power supply (1/2)+, (3/6)-
Port Features:
OFF: Normal mode. All ports can communicate with each other and can be used as ordinary unmanaged PoE switches
ON: Extended mode. The longest transmission distance of the switch is 250 meters
Operating Temperature: -10 to 70 (32 to 127)
Storage Temperature: -40 to 85 (-97 to 142)
Operating Humidity: 10% to 90% non condensing
Storage Humidity: 5% to 95% non condensing

How to Use:
Just follow the instructions in the user manual to operate the product.

Package List:
1 x Ethernet Switch
1 x Power Adapter
1 x User Manual
6 x Screws
2 x Accessories
