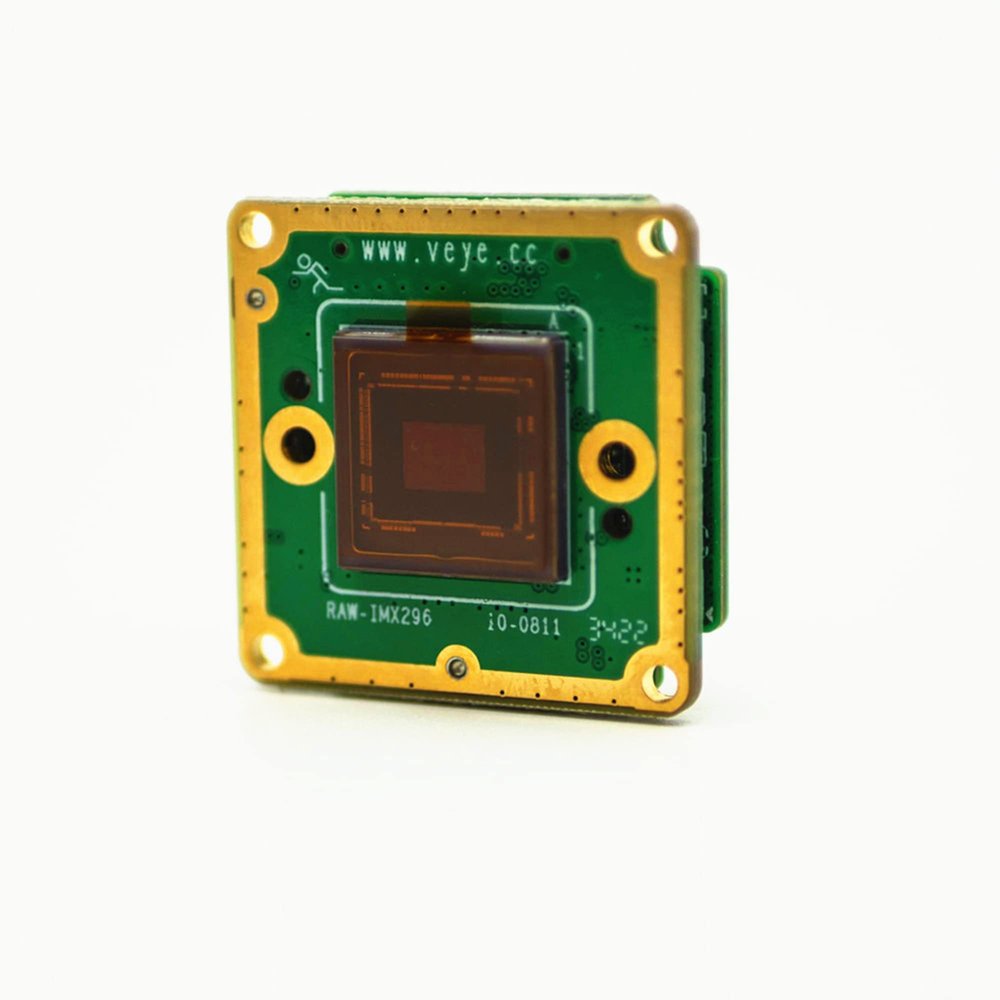

1.55MP Global shutter Machine Vision MIPI CSI-2 Camera, MV-MIPI-IMX296M for all Raspberry Pi and Jetson NX and Nano (MV-MIPI-IMX296M)

Description

• 1/2.9'' 1.55M Pixel IMX296LLR-C Pregius Global Shutter CMOS SENSOR
• MIPI CSI-2 Interface / Mono-8Mono-10 Data Format
• Support trigger frame number, interval, delay, trigger filter function
• WIKI: http://wiki.veye.cc/index.php/MV-MIPI-SC130M_Index

Product introduction

MV-MIPI-IMX296M is a 1.55M MONO industrial camera with MIPI interface. This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component.

-1/2.9'' 1.55M Pixel IMX296LLR-C Pregius Global Shutter CMOS SENSOR
-MIPI CSI-2 Interface
-Mono-8Mono-10 Data Format
-Video streaming modeFree RunningTrigger mode
-Hardware and Software trigger source
-Support trigger frame number, interval, delay, trigger filter function
-Strobe synchronization
-ROI
-USER Output
-Flexible frame rate settings
