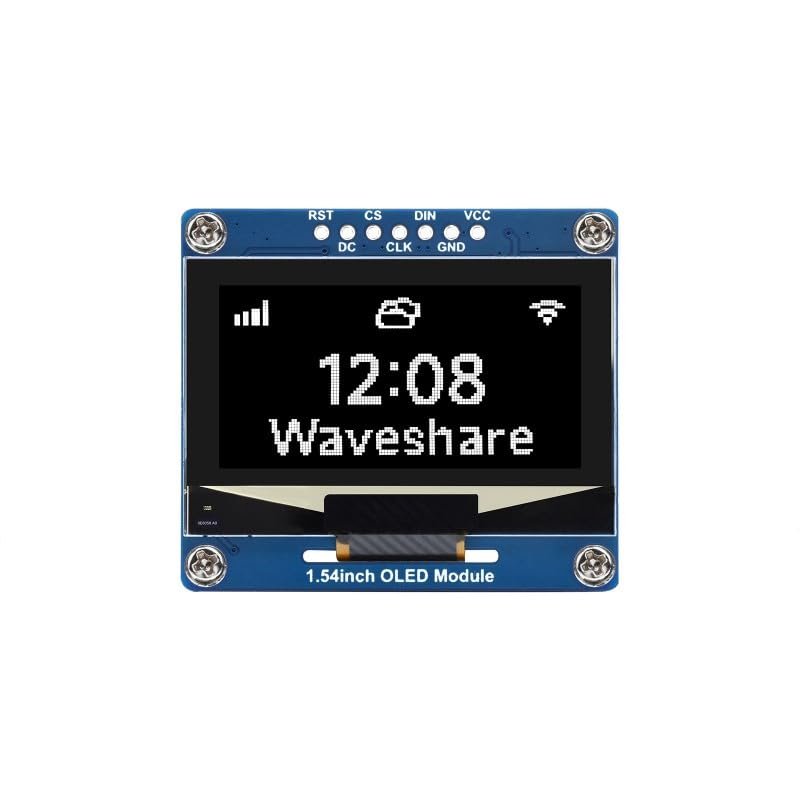

1.54inch OLED Display Module Compatible with Raspberry Pi 12864 Resolution with SPI / I2C Communication Supports Arduino, STM32, ESP32, Jetson Nano White Color

Description

• This product is a 1.54-inch OLED module, a built-in SSD1309 driver chip.Onboard voltage translator, compatible with 3.3V / 5V MCUs
• This product is an offical OLED module of Waveshare,it has white or blue color to choose.
• OLED module provides two kinds of driver interfaces: 4-wire SPI and I2C interfaces respectively.,better compatibility, fast data rate
• There are two optional soldering resistors on the back of the module at the lower left corner, through the choice of resistors to select the corresponding communication mode
• Comes with online development resources (examples for RPi/Arduino/STM32/ESP32/Jetson Nano)

Introduction
This product is a 1.54-inch OLED module, a built-in SSD1309 driver chip, using the SPI/I2C interface communication, provides RPi, Arduino, STM32, ESP32, Jetson Nano, and other demo information.
Parameters
Operating Voltage: 3.3V / 5V
Communication Interface: SPI / I2C
Driver: SSD1309
Resolution: 128 64 pixels
Pixel Size: 0.254 0.254(mm)
Display SizeI: 35.05 17.52mm
Module Size: 43 37.5(mm)
Display Color:1.54inch OLED Module: White
Package Content
1.54inch OLED Module x1
GH1.25 7PIN cable x1
