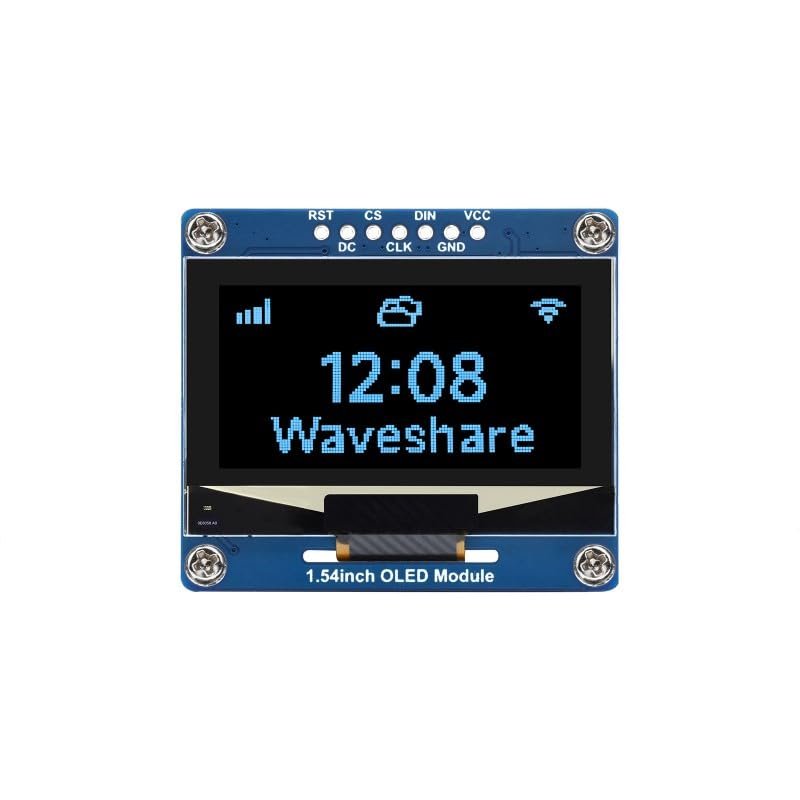

1.54inch OLED Display Module B (Blue Display Color), 12864 Resolution, SPI / I2C Communication (1.54inch OLED Module (B))

Description

• 1.54inch OLED Display Module. Embedded SSD1309 driver chip, SPI / I2C Communication.
• Onboard voltage translator, compatible with 3.3V / 5V MCUs.
• Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate.
• Comes with online development resources (examples for Raspbery Pi/for arduino/STM32/ESP32/Jetson Nano).

Introduction
This product is a 1.54-inch OLED module, a built-in SSD1309 driver chip, using the SPI/I2C interface communication, provides Raspbery Pi, Arduino, STM32, ESP32, Jetson Nano, and other demo information.

Features at a glance
Onboard voltage translator, compatible with 3.3V / 5V MCUs.
Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate.
Comes with online development resources (examples for Raspbery Pi/for arduino/STM32/ESP32/Jetson Nano).

Parameters
OPERATING VOLTAGE: 3.3V / 5V
COMMUNICATION INTERFACE: SPI / I2C
DRIVER: SSD1309
RESOLUTION: 128 64 pixels
PIXEL SIZE: 0.254 0.254(mm)
DISPLAY SIZE: 35.05 17.52mm
MODULE SIZE: 43 37.5(mm)
DISPLAY COLOR: Blue

Package Content
1. 1.54inch OLED Module (Blue Version) x1
2. GH1.25 7PIN cable x1
