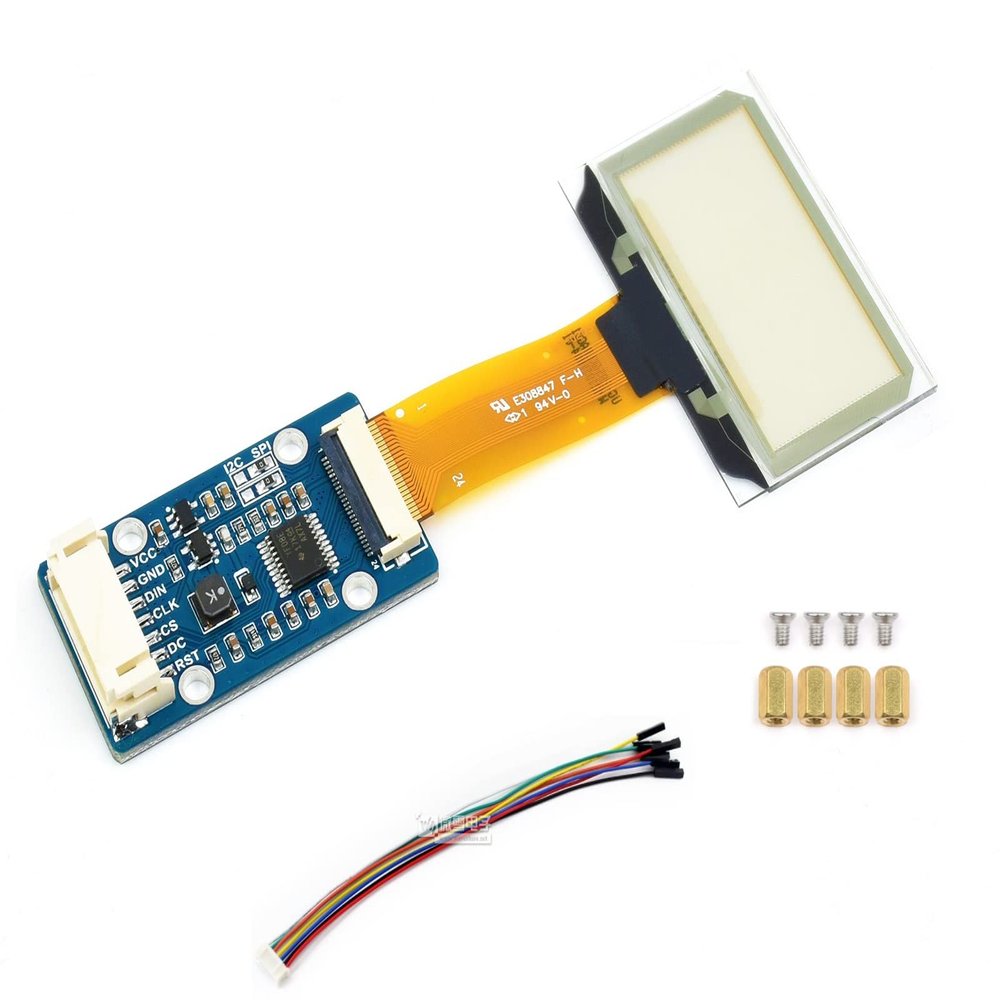

1.51inch Transparent OLED Display Module 12864 Resolution Light Blue Color Display OLED for Raspberry Pi/Arduino/STM32,Full Viewing Angle,Embedded Independent Driver Chip,SPI/I2C Interfaces

Description

• 1.51inch Transparent OLED Module, 12864 Resolution OLED Display, Light Blue Color Display
• OLED Module Embedded Independent Driver Chip,Comes with examples for Raspberry Pi, Arduino, STM32, etc.
• OLED transparent module, full viewing angle
• Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate
• Provide online development resources (examples for Raspberry Pi/Arduino/STM32), please contact with seller to get .

1.51inch Transparent OLED, 12864 Resolution, SPI/I2C Interfaces, Light Blue Color Display

Features
1.1.51inch Transparent OLED.Embedded Independent Driver Chip, Using SPI/I2C Interfaces.Comes with examples for Raspberry Pi, Arduino, STM32, etc.

2.SPI And I2C Control Interface Switching.Supports Controller Boards Like Raspberry Pi/Arduino/STM32

Specification
Working Voltage: 5V/3.3V
Communication Interface: SPI/I2C
Controller: SSD1309
Resolution: 128 64
Display Size: 35.05 15.32 (mm)
Pixel Pitch: 0.254 0.254 (mm)
Board Size: 41 22.5 (mm)
Display Color: Light Blue

OLED & Controller
The integrated built-in controller used by this OLED is SSD 1309, which has 128 64 bits SRAM, supports up to 128 64 pixel screen, supports SPI/I2C/
6800 parallel port/8080 parallel port, 256-level brightness settings, this screen is 128 64 pixels, so the internal SRAM is not fully used.
This module adopts four-wire SPI and IIC interfaces, with good compatibility and high transmission speed.

Connection
VCC-----Power (3.3V / 5V input)
GND------Ground
DIN------SPI / I2C data input
CLK-----SPI / I2CI clock input
CS------Chip selection, low active
DC------Data/Command selection (high for data, low for command)
RST------Reset, low active

Package Content
1.51inch Transparent OLED x1
PH2.0 7PIN cable x1
Screws pack

QA
1.How many volts can an OLED module be used in a system?
The OLED module is used in a 3.3V system by default, but after more than 24 hours of the burn-in test, it is found that it can also work normally in a 5V system.

2.How many hours is the service life of an OLED module?
Generally it is 50,000 hours under normal working conditions.

Note
Online Dervelopment Resources are provided, please contact us to get if needed.
