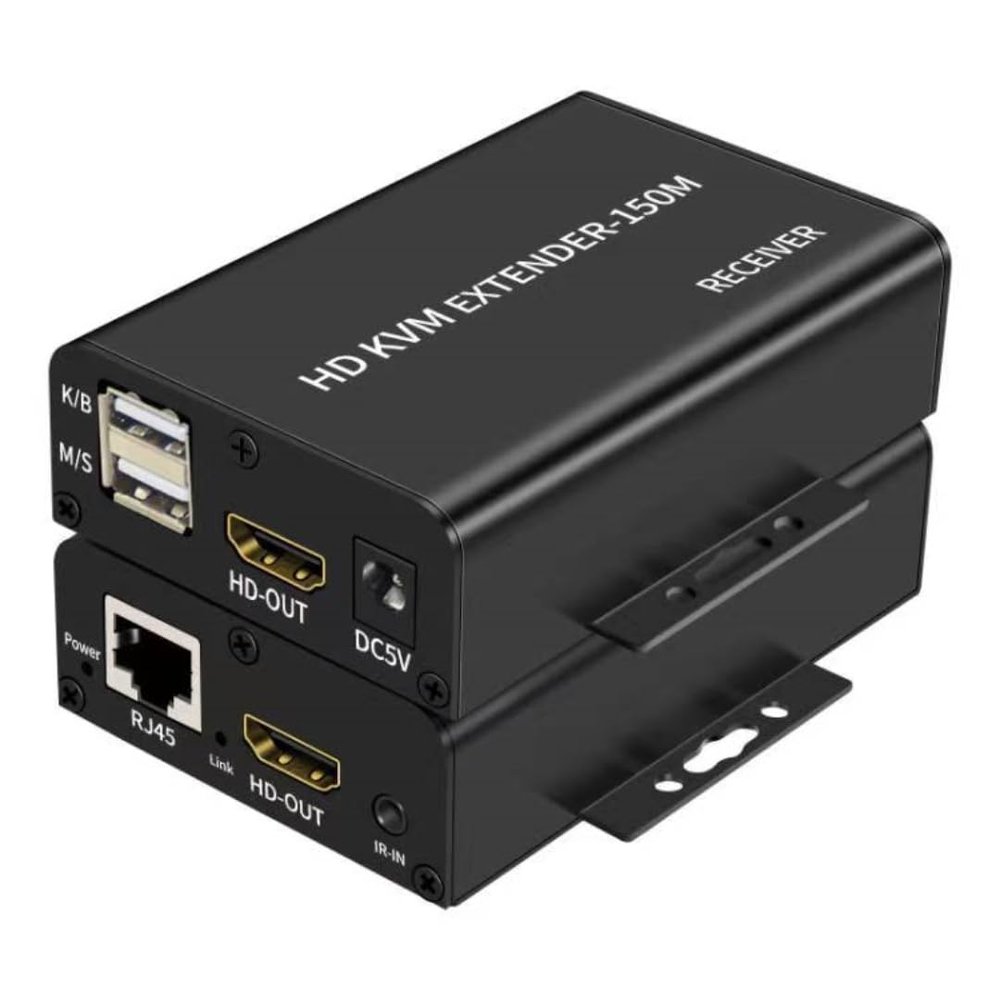

150M HDMI KVM Extender Over Cat5e Cat6 1080P HDMI USB KVM 150M Extender Transmit with Loop Out Support USB Keyboard Mouse Extension

Description

• 1* The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves, however CAT-5E/6 cables are available everywhere and can be processed easily by the user or installer.
• 2*Because the head of the long HDMI cable is big, using it must in hidden method, what is more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However,CAT-5e/6 cables do not have such problems.
• 3* With this extender, the transmission distance can be up to 150M while using CAT-5e/6 cables, for the general HDMI cables, they must be customized when the length is over 10 meters.We also have 30M,60M,120M available, thanks.
• 4*One pair as a full functional module, no need of setting.*CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.*CAT-5e/6 follow the standard of IEEE-568B,*Transmission distance can be up to 150M for 1080p while using CAT-5e/6 cable.
• 5*If the wireless keyboard and mouse are not supported, please change the brand or the wired keyboard and mouse. Wired keyboards and mice are strongly recommended. 1) No display with 1 metre cable:A: The length of the cable should be longer than 5 metres, below 5 metres there may be no display.

1.Introduction
The extender, through a single CAT-5E/6, the HDTV signals and USB keyboard and mouse signals to extend the 150 m, the resolution up to 1080 P. It not only breaks the limitations of the transmission distance of the HDMI cable, CAT-5E/6 also makes the wiring more flexible and more convenient. The HDMI extender uses HDMI (High Definition Multimedia Interface) using HDMI connectors, if you use HDMI to DVI adapter, also supports DVI (Digital Display Interface) interface, which gives the home theatre system brings greater flexibility, and more selectivity. It brings a variety of solutions to home users, such as HDTV sales and displays, set-top boxes, DVDs, projectors and other devices, as well as in the field of space and security, data control centres, information dissemination centres, conference rooms, schools and corporate training.
Used in pairs, no setup required
Replace HDMI cable with CAT-5E/6 cable for long distance transmission.
Compact structure
Signal transmission rate up to 1.65Gbps
Support lossless compressed audio, such as: LPCM
Supports compressed audio, such as DTS, Dolby (including DTS-HD, and full HD Dolby).
Package Details
One transmitter of the extender
One receiver of the extender
A DC5V power adapter for powering the receiver end.
A USB A-B cable for transferring keyboard and mouse data and powering the transmitter.
Input video signal: 0.5-1.0 volts p-p
Input DDC signal: 5 volts p-p (ttl)
Maximum single link video range: 1920*1080, 1080p
Output video: HDMI
Mouse and keyboard interface: USB
DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i
HKE150: 150M
Interlace (50&60Hz): 480i 576i 1080i
Progressive (50&60Hz): 480p 576p 720p 1080p
Power Consumption: 5w
Operating Temperature: 0 to+70C
Power Adapter: DC5V 1A
