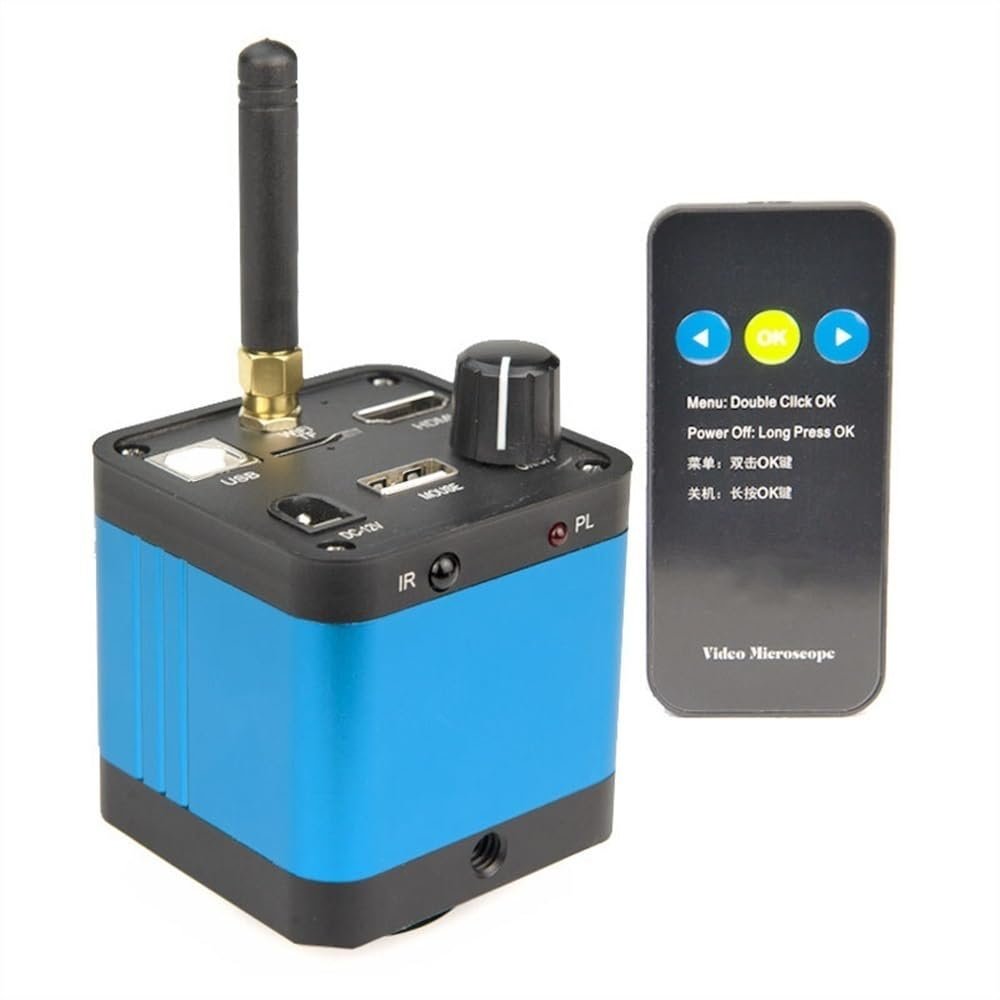

14MP HDMI Industry Microscope Camera Full 1080P Digital Electronic Eyepiece Zoom C-Mount Lens (Color : Blue)

Description

• Model Number: 16MP Industry Microscope Camera.
• Image Sensor: 14MP 1/2.33 inch. Pixel size: 1.43um x 1.43um.
• Image resolution: 4320x2430(16:9),4320x3240(4:3) USB resolution: 1080P20,720P30,WVGAP60.

Specifications:

Image Sensor: 14MP 1/2.33 inch
Pixel size: 1.43um x 1.43um
Image resolution: 4320x2430(16:9),4320x3240(4:3)
USB resolution: 1080P20,720P30,WVGAP60
W_F output: 720x360@fps
Zoom rate: 1X-16X infinite magnification
Exposure control: AE lock, Exposure compensation (10 level adjustable)
White balance: Auto, Manual (R,G,B 10 level adjustable) ,Calibration
Image control: Ten level adjustment of contrast, saturation and sharpness
Comparison of the PIP: Full screen, left and right, up and down, 1/4
Grid: 8 groups, position, color, thickness adjustable
Measurement: point, line, circle, angle (Optional)
Language: English, Simplified Chinese, Traditional Chinese
Mouse interface: PS/2,recommend to use the original mouse (Optional)
Remoter: Max 5 meters
W_F antenna: SMA (Optional), Max 10 meters
HDMI interface: TYPE-A
USB interface: TYPE-B USB2.0
TF card slot: Max support 32GB TF card
Lens: Suitable for C mount or CS mount
Device size: 56mm(L)x 54mm(W)x 78mm(H)

Package:
1 x 16MP Camera
1 x Power supply
1 x HDMI Cable
1 x Software DISC
1 x Remote Control
1x user's Manual
