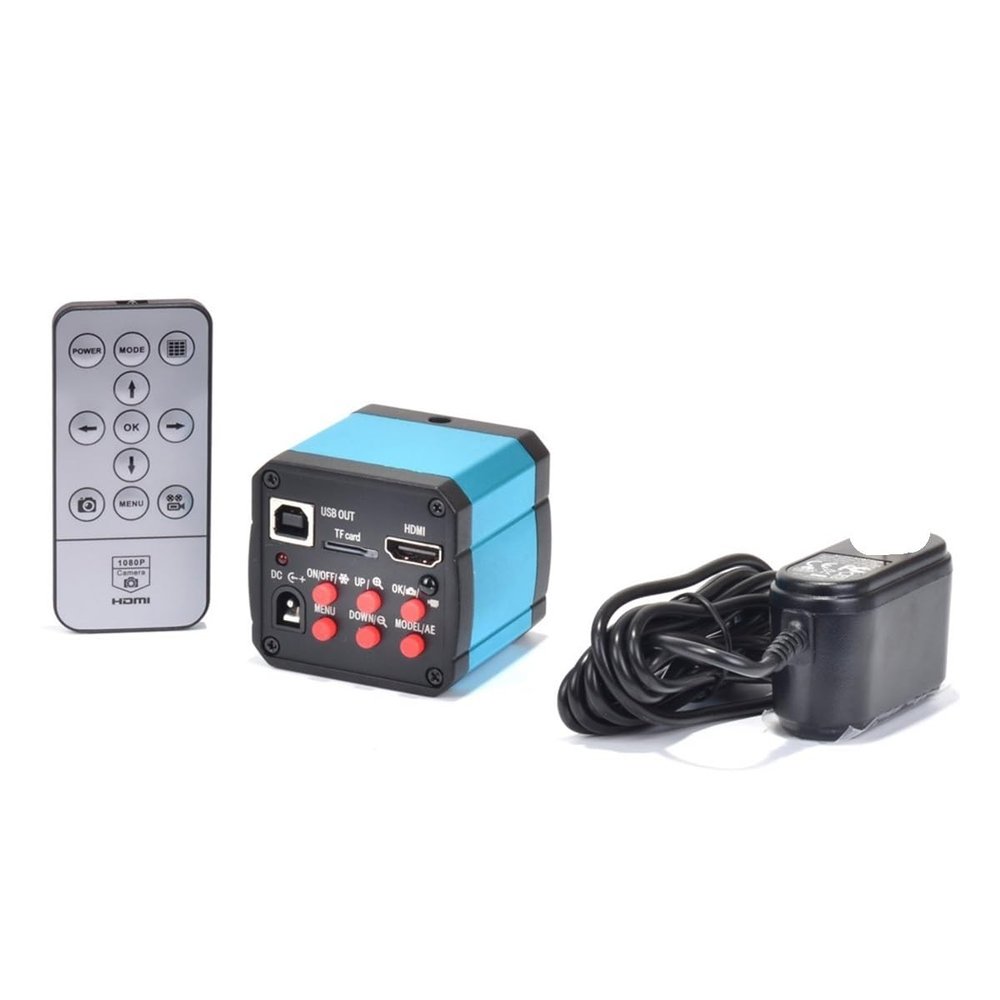

14MP HDMI Industrial Digital Camera USB Microscope Electronic Eyepiece TF Video Recoder 0.5X C Mount Ring Adapter Optional (Color : Camera)

Description

• Camera with HDMI USB2.0 two output.
• Image resolution: 4320*3240 (for TF card) 1280 *720 @ 30FPS(for TF card).
• USB Video resolution: 1280 *720 @ 30FPSImage sensor: 14 megapixel sensor 1/2.3 inch; Effective pixel: 14 megapixel.

Specifications:

Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1280 *720 @ 30FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920 *1080 @ 30fps (for TF Card)
USB Video resolution: 1280 *720 @ 30FPSImage sensor: 14 megapixel sensor 1/2.3 inch
Effective pixel: 14 megapixel
Pixel size: 1.43*1.43um
Frame rate: 30fps
Definition: FULL HD
Housing: Metal
White balance: Auto/manual
Digital magnification: 5x digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Freeze: Support
OSD: Support
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 4 pcs of transverse lines/vertical lines, moveable
SNR: Support
TF card: MAX 32G
DC Interface (DC 5V)

Features
1.1400 megapixel COMS Sensor
2.14-megapixel camera and 720p video recording mode by mode button to switch.The default mode is for camera.
3. Offers 8x digital zoom; press the up or down button to digital zoom in or out, continusly press for quick zoom in or out. Shortly press for zoom in or out .
4. High-definition HDMI video output interface,the output size 720p 60hz.
5. Free drive 1080P 30 frames / sec HD usb video output.
6. One button image freeze/thaw. press boot after clicking on / off key to achieve freezing and thawing function.
7. 4 horizontal line,4 vertical line. Line color setting and thickness adjustable. Center crosshairs display.
8. Supports automatic and manual exposure;
9. Support for EV value (exposure compensation) adjustment;
10. Supports English, Traditional Chinese, Simplified Chinese and other multi-language settings;
11. Support 50Hz,60Hz frequency source selected settings;
12. Card supports HCSD T-flash (Class 4),the maximum channel 32GB;
13. Shutdown saving settings function
