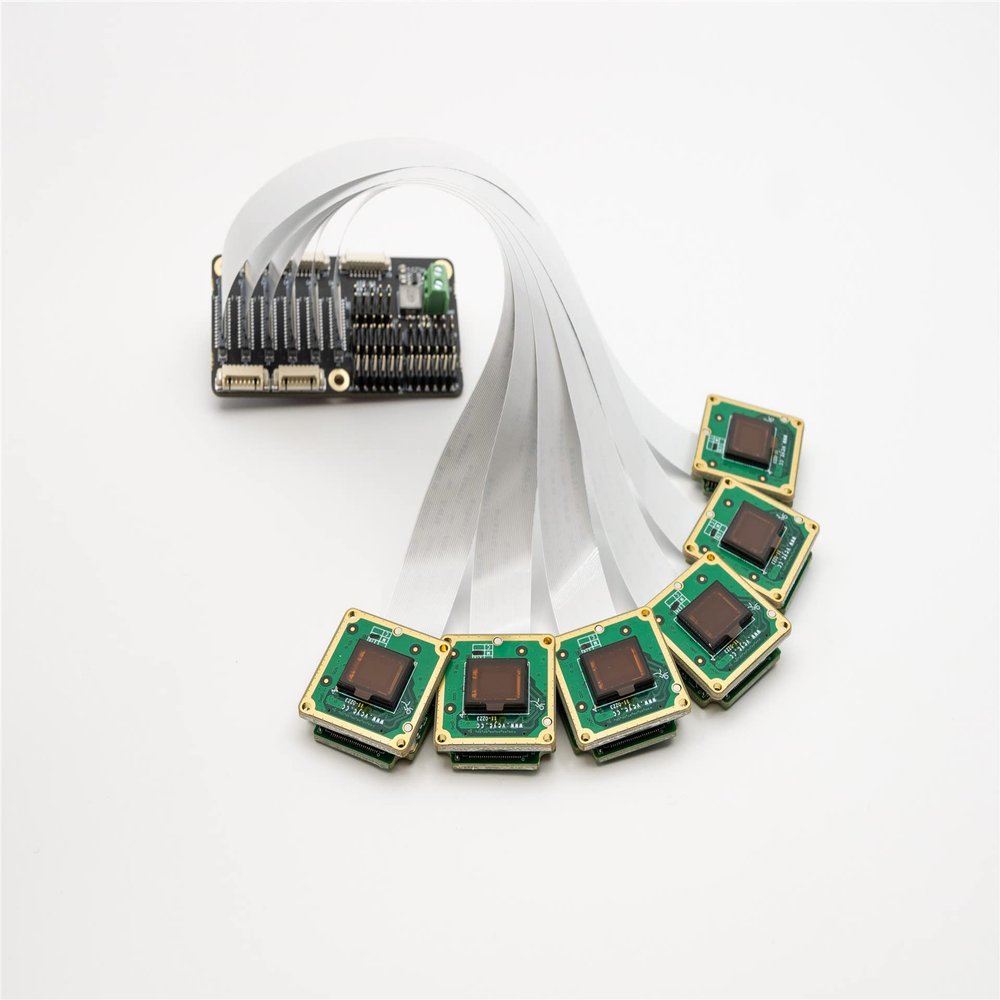

1.3MP Global Shutter Machine Vision MIPI CSI-2 Camera, MV-XAVIER-ORIN-2CAM-SC130M for Jetson AGX-Xavier,Orin and TX2 Devkit

Description

• 1.3M Pixel SC130GS Global Shutter Sensor
• Has a small size and rich functions
• Open source driver and demo.Support Jetson AGX XAVIER,AGX ORIN,TX2
• Hardware and Software trigger source
• Suitable for machine vision,Pls refer to veye.cc for more info

Package List n*MV-MIPI-SC130M 1*ADP-N4 Screws and Cables
Product introduction MV-MIPI-SC130M is a 1.3 million MONO industrial camera with MIPI interface. This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component. 1.3M Pixel SC130GS-M MIPI CSI-2 Interface Mono-8,Mono-10Data Format Video streaming modeFree Running),Trigger mode Hardware and Software trigger source Support trigger frame number, interval, delay, trigger filter function Strobe synchronization ROI Flexible frame rate settings

Technical Details
Shutter Mode: Global Shutter
Sensor: SC130GS-M
Color: MONO
Image Size: 1/2.7'
Unit Cell Size: 4m *4m
Resolution: 1280* 1024
Max Frame Rate: 1280*1024 @ 108fps
Gain: 0 dB to 40dB:(0.1 dB step)
Exposure Time: <= 1/max frame rate
Shutter Mode: AE,ME,AE Once
ISP: Bad Pixel Correction,8bit GAMMA,User Lookup Table
ADC: 10 bit
Pixel Format: Mono8,Mono10,UYVY 8bit
Working Mode: Hardware Trigger,Software Trigger,Video streaming modeFree Running
Trigger Mode: Trigger Filtering,Trigger Delay,Trigger Polarity Control
Strobe Mode: Strobe Output Control,Strobe Delay,Strobe Polarity Control
