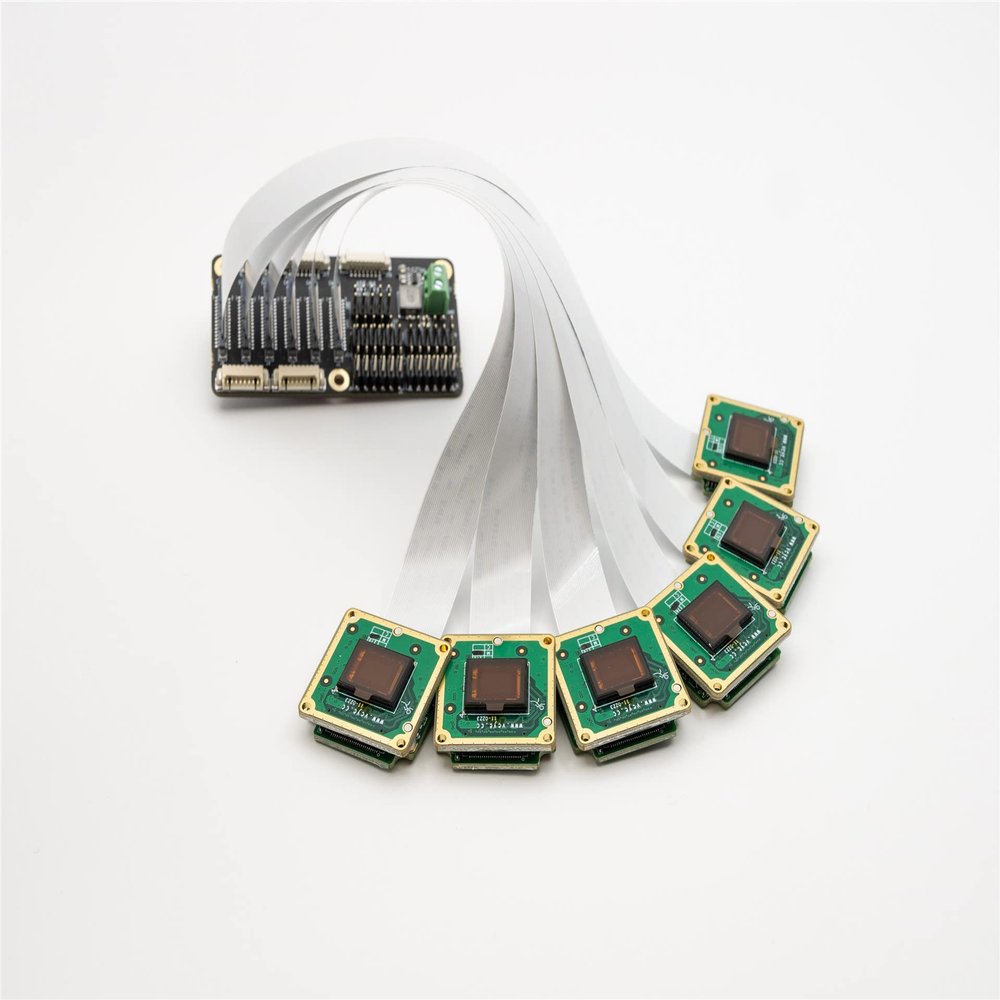

1.3MP Global Shutter Machine Vision MIPI CSI-2 Camera, AGX-3CAM-SC132M for Jetson AGX-Xavier,Orin and TX2 Devkit

Description

• 1.3M Pixel SC132GS CMOS Sensor
• Has a small size and rich functions
• Open source driver and demo.Support Jetson AGX XAVIER,AGX ORIN,TX2
• Hardware and Software trigger source
• Suitable for machine vision,Pls refer to veye.cc for more info

Package List n*RAW-MIPI-SC132M 1*ADP-N5 FFC cables and Screws
Product introduction
RAW-MIPI-SC132M is a 1.3 million MONO industrial camera with MIPI interface.
This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component. 1.3M Pixel SC132GS MIPI CSI-2 Interface Mono-8,Mono-10 Data Format Video streaming modeFree RunningTrigger mode Hardware and Software trigger source Support trigger delay, trigger count function Strobe synchronization ROI Flexible frame rate settings Support Sensor Direct Access mode

Technical Details
Shutter Mode: Global Shutter
Sensor: SC132GS
Color: MONO
Image Size: 1/4'
Unit Cell Size: 2.7m *2.7m
Resolution: 1080*1280
Max Frame Rate: 1080*1280 @ 120fps
Gain: 0 dB to 40 dB(0.1 dB step)
Exposure Time: <= 1/max frame rate
Shutter Mode: Manual
ADC: 10 bit
Pixel Format: Mono8,Mono10
Working Mode: Hardware Trigger,Software Trigger,Video streaming mode
Trigger Mode: Trigger Delay,Trigger Polarity Control
Strobe Mode: Strobe Output
