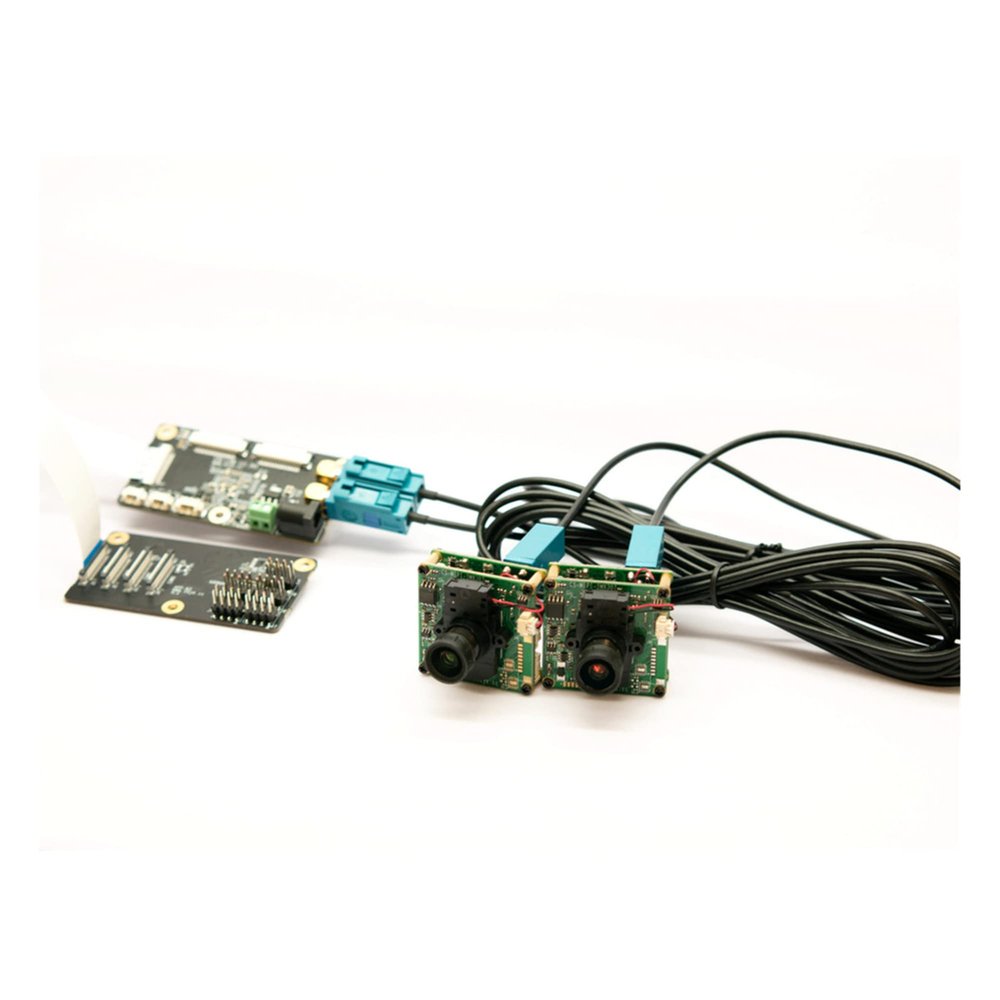

1.3MP Global Shutter FPD-Link3 Camera, CS-FPD-XAVIER-nCAM-SC132 for Jetson Xavier (3-cam YT1.6-4M Lens)

Description

• Excellent ISP built-in, Uncompressed UYVY format, YUV422-8bit
• Support Raspberry Pi Zero & W,Pi 4,3 b+,Pi 3, Pi CM. Jetson Nano, Xavier NX

Product introduction

CS-FPD-XAVIER-nCAM-SC132 is a cost-effective FPD-Link3 interface camera module that uses the SC132GS global shutter MONO CMOS sensor whice is SmartSens Technologys SmartGS series. CS-MIPI-SC132 supports trigger mode and video stream mode.

-1/4 inch 1.3m pixel SmartGS CMOS sensor
-Only mono mode is supported
-Global shutter
-Built-in ISP image processing
-CSI-2 data interface
-Uncompressed UYVY data format, YUV422-8bit data type
-Standard lens interface
-Brightness and contrast can be adjusted
-Support video stream mode
-Support trigger mode
-Firmware upgrade via USB flash drive
-Support Raspberry PI Platform,RK3399, JETSON Platform
