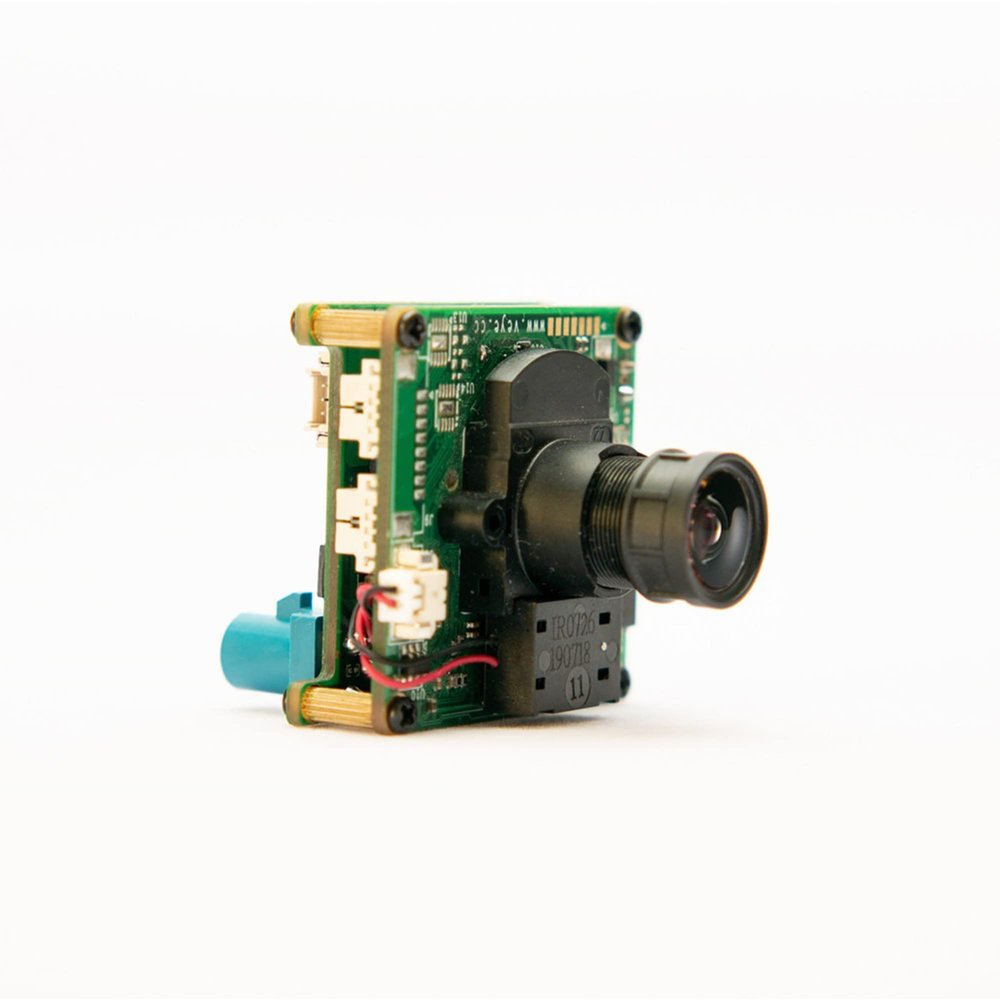

1.3MP Global Shutter FPD-Link3 Camera, CS-FPD-CAM-SC132 for Raspberry Pi 4/3B+/3 and Jetson Nano XavierNX (YT1.6-4M Lens)

Description

• SC132GS global shutter MONO CMOS sensor by SmartSens, 1280*1080@max45fps, 1280*720@max60fps, 640*480@max120fps
• Excellent ISP built-in, Uncompressed UYVY format, YUV422-8bit
• Support Raspberry Pi Zero & W,Pi 4,3 b+,Pi 3, Pi CM. Jetson Nano, Xavier NX.
• Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc.
• WIKI: http://wiki.veye.cc/index.php/CS-FPD-CAM_Series

Product introduction

CS-FPD-CAM-SC132 is a cost-effective FPD-Link3 interface camera module that uses the SC132GS global shutter MONO CMOS sensor whice is SmartSens Technologys SmartGS series. CS-MIPI-SC132 supports trigger mode and video stream mode.

-1/4 inch 1.3m pixel SmartGS CMOS sensor
-Only mono mode is supported
-Global shutter
-Built-in ISP image processing
-CSI-2 data interface
-Uncompressed UYVY data format, YUV422-8bit data type
-Standard lens interface
-Brightness and contrast can be adjusted
-Support video stream mode
-Support trigger mode
-Firmware upgrade via USB flash drive
-Support Raspberry PI Platform,RK3399, JETSON Platform
