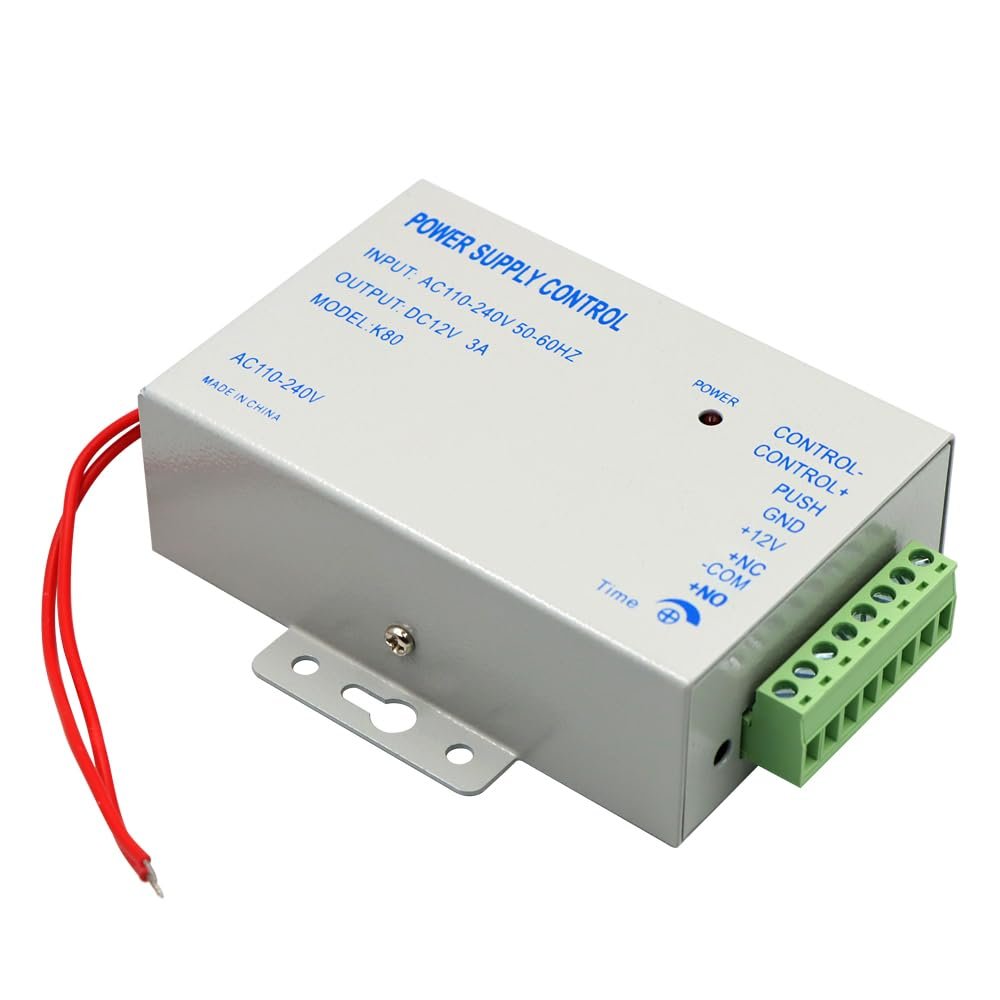

12V K80 Power Supply Controller Input True 3A/5A AC110V-240V Output DC for Door Access Control System,Electric Strike Lock, Bolt Lock, Magnetic Lock, Power Supply Controller (K80-3A)

Description

• The access control power supply is mini and lightweight, easy to install, convenient and fast, with an input voltage range from 100V-240V to normal use, DC12V 3A/5A suitable for countries around the world.
• The access control power supply is a transformer that provides stable output voltage for the access control controller, electric lock, and exit button.
• Setting NC/NO output can control various types of electric locks. Based on delay control circuit, the locking time can be between 0-15 seconds.
• The switch power regulator has a wide range, and the voltage regulator works well. It can control various types of electric door locks, electric door locks, electronic bolt locks, and magnetic locks.
• Using high-quality materials with guaranteed quality, the power supply is suitable for various building intercoms, villa doorbells, apartment doorbells, home video doorbell controllers, access control, and other import and export controls.
• It has anti-interference ability, stability and reliability. The back of the power supply adopts a gourd hole design, which can be placed on the ceiling or hung on the wall without occupying space.
• Metal shell, compact and stylish, side heat dissipation hole design, safe and convenient to use

Model:K80-3A/K80-5A
Input voltage:110-240VAC
Input frequency:50~60HZ
0utput voltage:DC12V
Output current:3A/5A
Adjustable delay:0-15 seconds
Working temperature:-20~+65C
Output voltage regulation range:1%6~15%
Size:115mm/4.53inch*33mm/1.3inch*64mm/2.52inch
Note:
For indoor use only.
Suitable for electric locks, access control keypads, exit buttons and video doorbell cameras.
With overload, overvoltage, short circuit and other automatic protection functions.
When the output circuit is short-circuited, it will be automatically disconnected, and automatically return to
normal state when the fault is removed.
Features:
Based delay control circuit, lock time can be in 0-15 seconds.
Set NC / NO outputs, can control various types of electric locks.
The power supply controller is easy to install and carry.
It has anti-interference ability, stable and reliable.
The back of the power supply is designed with a hole, which can be hung on the wall.
0~15 Seconds unlock time adjustable
Based delay control circuit, It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable).
Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
Dimensions:
Body: 4.0L x 2.66W x 1.30H (in)
Pitch:1.18 x 3.15 (in)
Aperturer:0.15 (in)
