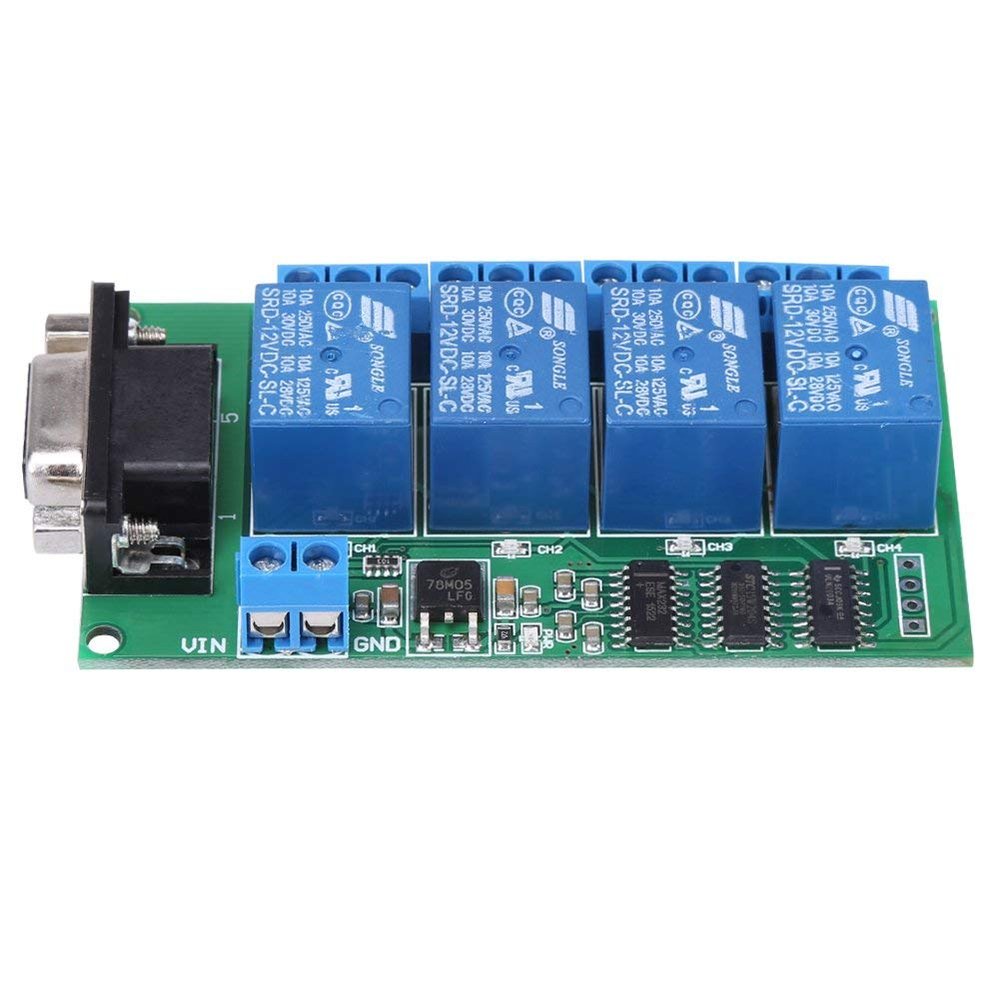

12V 4 Channel Relay Board with RS232 DB9 Interface for Remote Control

Description

• Control: Relay board offers six commands for most industrial control needs
• Interface: Relay board includes RS232 DB9 female interface for connectivity
• Construction: Relay board uses strong material for good performance and long life
• Voltage: Relay board operates on DC 12V with 9-13V range
• Parameters: Relay board has standby current 18MA with incremental channel usage

Specifications:
Model: CE039_12V
Product series: RS232
Rated current: 10A
Rated voltage: DC12V
3C rated voltage range: below 36V
Relay load current: Maximum 10A
Relay load voltage: DC 1-100v or AC85-265v
Weight: 67g
Size: 8.5 x 4.7 x 1.8cm/3.35 x 1.85 x 0.71inch

Package Included:
1 x RS232 Relay

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
