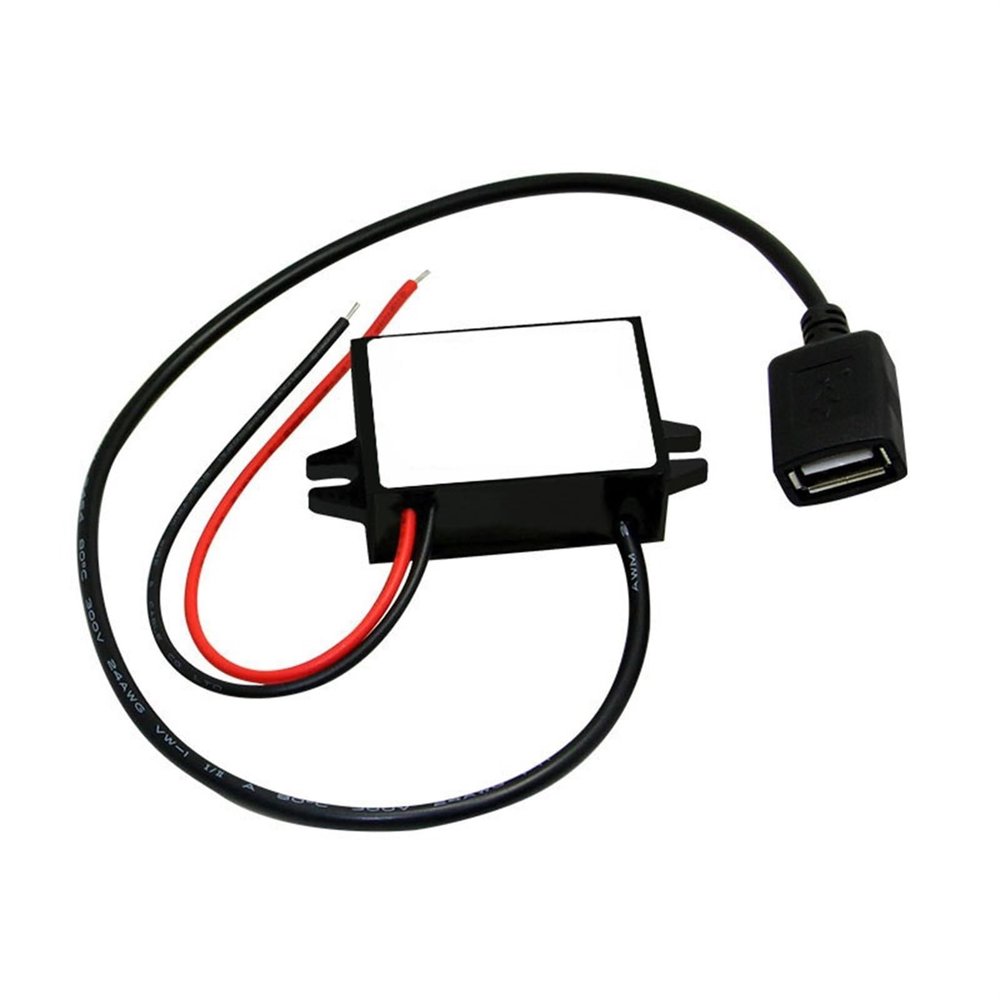

12V 24V 36V 48V 60V 72V to 5V 3A Inverter Converter Mini Micro Female USB Car Phone Charger Adapter for GPS DVR Recorder(USB,DC 20-72V)

Description

• Power Converters
• 12V 24V 36V 48V 60V 72V to 5V 3A Inverter Converter Mini Micro Female USB Car Phone Charger Adapter for GPS DVR Recorder

Power Converters
12V 24V 36V 48V 60V 72V to 5V 3A Inverter Converter Mini Micro Female USB Car Phone Charger Adapter for GPS DVR Recorder
Specification
Product Name
12V 24V 36V 48V 60V 72V to 5V 3A 15WDC Converter
Model No.
F**J5V3A2S-XXX
Module Properties
non-isolated module
Rectification
rectification
Input (cable length: 13-14cm)
Input Voltage
24V 36V 48V 60V 72V
InputVoltage Range
11-55V / 20-60V / 20-72V / 30-90V
Output(cable length: bare wire---13-14cm / USB/Type C---35cm,Micro/Mini USB---50cm)
Output Voltage
5V
Output Current
0~3A Max auto-adaptive
Output Power
15W Max
Conversion Efficiency
>93%
Voltage regulation
1%
Load regulation
2%
Ripple (Full load test)
<; 150mV
No-loadcurrent
<;100mA
Working Temperature
-40~80( If ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)
Waterproof Rating
IP68
Protection
Over-current protection / Overheating protection / Short circuit protection
Application
mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on.
Case Material
ABS Plastic
Product Size (L x W x H)
46*32*18mm
Product Weight
Single Output: 65g / Double Output: 75g
